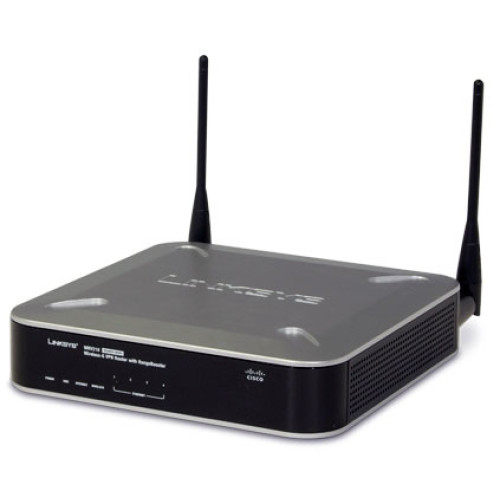

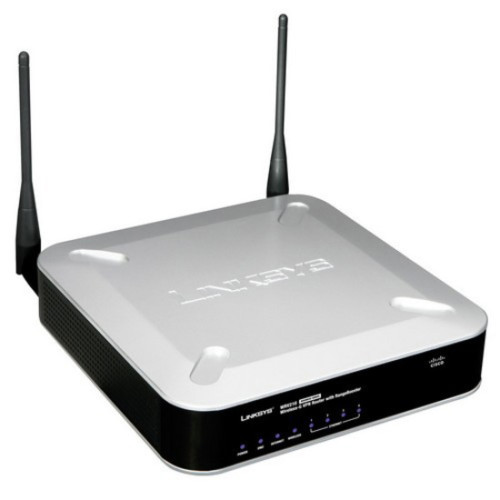

Cisco WRV210 Wireless Router
Part #: WRV210 | SKU: CIS56642

The Cisco WRV210 Wireless-G VPN Router is a VPN router with an integrated wireless access point for small offices and home offices. The 10/100 Ethernet WAN interface connects directly to your broadband DSL or cable modem. The LAN interface consists of a built-in 4-port, full-duplex 10/100 Ethernet switch that can connect up to four devices. The wireless access point supports 802.11b/g and incorporates RangeBooster technology, which utilizes multiple-input, multiple-output (MIMO) antennas to provide increased coverage and reliability.

Cisco WRV210 Wireless Router

Part Details: Cisco - WRV210 Wireless-G VPN Router - RangeBooster - 4 x 10/100Base-TX LAN, 1 x 10/100Base-TX WAN - IEEE 802.11b/g - 54Mbps

Need a different version of the Cisco WRV210 Access Point? View all 1 configurations

Additional Information

Manufacturer	Cisco
Model Name	WRV210

Cisco WRV210 Specs (pdf)

General Information

Product Type: Wireless Router
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: WRV210
Product Name: WRV210 Wireless-G VPN Router - RangeBooster
Product Line: RangeBooster

Physical Characteristics

Height: 1.7"
Width: 6.7"
Depth: 7.6"
Weight (Approximate): 12.48 oz

Interfaces/Ports

Fast Ethernet Port: Yes
Number of Network (RJ-45) Ports: 4
Number of Broadband (RJ-45) Ports: 1
Management Port: Yes

Other

Package Contents:
- WRV210 Wireless-G VPN Router
- CD-ROM with user guide and setup wizard
- Network cable
- Power adapter
- Quick install guide
- WRV210 Wireless-G VPN Router
- CD-ROM with user guide and setup wizard
- Network cable
- Power adapter
- Quick install guide
Certifications & Standards:
- FCC Class B
- CE
- IC
Additional Information:
- NAT throughput: 93 Mbps
- IPsec throughput: 23 Mbps
- 10 IPsec tunnels with QuickVPN support
- 5 gateway-to-gateway tunnels
- Secure wireless access for small offices

Management & Protocols

Management:
- QoS
- Web user interface
- SNMP versions 1 and 2c
- Syslog
Security Features:
- AES
- Access control list
- SPI firewall
- DoS prevention
- 3DES

Wireless Specifications

Wireless LAN Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Maximum Frequency: 2.40 GHz
Total Number of Antennas: 2
Wireless Transmission Speed: 54 Mbps
Antenna Gain: 2 dBi
Antenna Type: Omni-directional
Wireless Security:
- WPA2
- 64 bit/128 bit WEP
- WPA2-PSK

Network & Communication

Ethernet Technology: Fast Ethernet

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 12 V DC

Extended Details

Cisco WRV210 Wireless Router Part #: WRV210 | SKU: CIS56642
