| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Catalyst 2960 Series Switch |

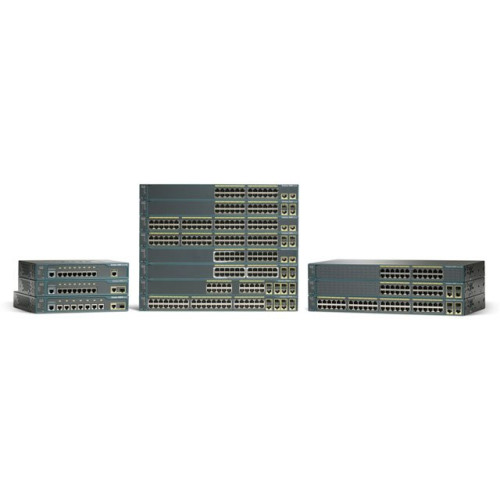

Cisco Catalyst 2960 Series Switch Specs
General Information
- Product Type: Ethernet Switch
- Product Series: 2960
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: 2960-24TC-S
- Product Name: Catalyst 2960-24TC-S Managed Ethernet Switch
- Product Line: Catalyst
Physical Characteristics
- Height: 1.7"
- Width: 17.5"
- Depth: 9.3"
- Weight (Approximate): 8 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 24
- Total Number of Network Ports: 24
- Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
- Uplink Port: Yes
Other
- Package Contents:
- Catalyst 2960-24TC-S Managed Ethernet Switch
- Catalyst 2960 Switch Getting Started Guide
- Regulatory Compliance and Safety Information for the Catalyst 2960 Switch
- AC power cord
- 1 x RJ-45-to-DB-9 adapter cable
- Mounting kit that contains:
- 4 x Rubber feet for mounting the switch on a table
- 2 x 19-inch rack-mounting brackets (also used for wall mounting)
- 6 x Phillips flat-head screws for attaching the brackets to the switch
- 4 x Phillips machine screws for attaching the brackets to a rack
- 1 x Cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- 1 x Redundant power system (RPS) connector cover
- 2 x Phillips pan-head screws (for attaching the RPS cover)
- 4 x Phillips truss-head screws (for wall-mounting brackets)
- Catalyst 2960-24TC-S Managed Ethernet Switch
- Catalyst 2960 Switch Getting Started Guide
- Regulatory Compliance and Safety Information for the Catalyst 2960 Switch
- AC power cord
- 1 x RJ-45-to-DB-9 adapter cable
- Mounting kit that contains:
- 4 x Rubber feet for mounting the switch on a table
- 2 x 19-inch rack-mounting brackets (also used for wall mounting)
- 6 x Phillips flat-head screws for attaching the brackets to the switch
- 4 x Phillips machine screws for attaching the brackets to a rack
- 1 x Cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- 1 x Redundant power system (RPS) connector cover
- 2 x Phillips pan-head screws (for attaching the RPS cover)
- 4 x Phillips truss-head screws (for wall-mounting brackets)
Management & Protocols
- Manageable: Yes
- Management:
- CLI
- Syslog
- DHCP
- SNMPv1, v2c, and v3
- Telnet
- Web browser
- Express Setup
- Cisco Network Assistant
- IEEE 802.1p QoS
- IEEE 802.1Q VLAN
- RMON (history, statistics, alarms, and events)
- CiscoWorks LAN Management Solution
- Cisco Identity-Based Networking Services
Media & Performance
- Ethernet Technology: Fast Ethernet
- Media Type Supported: Twisted Pair
- Network Technology:
- 10Base-T
- 100/1000Base-T
- Twisted Pair Cable Standard: Category 5
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: Power Supply
Memory
- Memory Technology: DRAM
- Flash Memory: 32 MB
- Standard Memory: 64 MB
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 2
Warranty
- Limited Warranty: Lifetime
