| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Catalyst 2960 Series Switch |

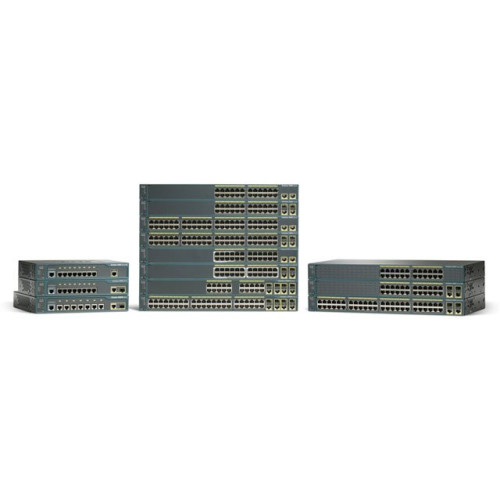

Cisco Catalyst 2960 Series Switch Specs
General Information
- Product Type: Ethernet Switch
- Product Series: 2960-C
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc

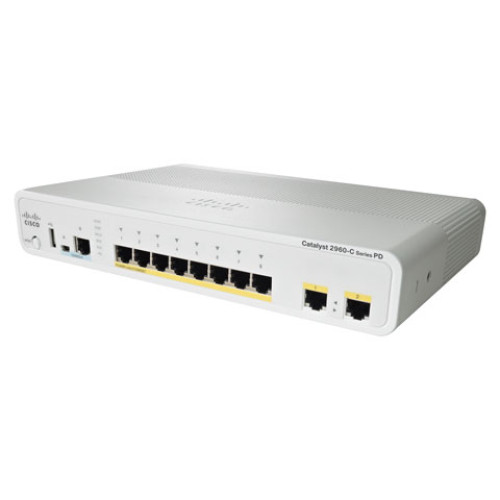

- Product Model: WS-C2960C-8TC-L
- Product Name: Catalyst 2960C Switch 8 FE
- Product Line: Catalyst
Physical Characteristics
- Height: 1.8"
- Width: 10.6"
- Depth: 8.4"
- Form Factor: Desktop
- Weight (Approximate): 2.38 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 8
- Total Number of Network Ports: 8
- Port/Expansion Slot Details:
- 8 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
- Token Ring Port: No
- LRE Port: No
- USB: Yes
- Uplink Port: Yes
Management & Protocols
- Manageable: Yes
- Management:
- Cisco Network Assistant
- CiscoWorks LAN Management Solution (LMS)
- Web-based Management
- CLI
- SNMP v1,v2c,v3
- RMON 1,2,3,9
- Telnet
- DHCP
- Syslog
- MIB
- QoS
- VLAN
Media & Performance
- Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
- Media Type Supported: Twisted Pair
- Network Technology:
- 10/100Base-TX
- 10/100/1000Base-T
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: No
- Power Source: Power Supply
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
- Shared SFP Slot: Yes
Memory
- Memory Technology: DRAM
- Flash Memory: 64 MB
- Standard Memory: 128 MB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS-6
Network & Communication
- Layer Supported: 2
Warranty
- Limited Warranty: Lifetime
