| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Catalyst 2960 Series Switch |

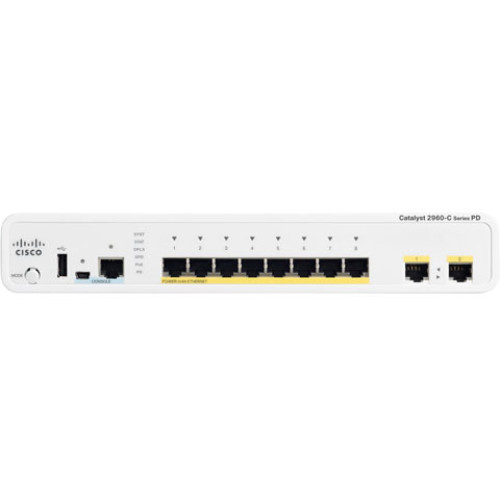

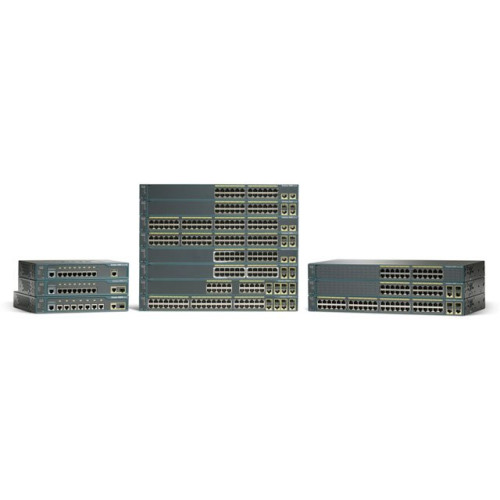

Cisco Catalyst 2960 Series Switch Specs
General Information
- Product Type: Ethernet Switch
- Product Series: 2960-C
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Name: Catalyst 2960-C Ethernet Switch
- Product Line: Catalyst
Physical Characteristics
- Height: 1.8"
- Width: 10.6"
- Depth: 6.8"
- Form Factor:
- Desktop
- Rack-mountable
- Wall Mountable
- Weight (Approximate): 2.38 lb
Interfaces/Ports
- Number of PoE+ (RJ-45) Ports: 10
- Total Number of Network Ports: 10
- Port/Expansion Slot Details:
- 8 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- USB: Yes
- Uplink Port: Yes
Management & Protocols
- Manageable: Yes
- Management:
- Cisco Network Assistant
- CiscoWorks LAN Management Solution (LMS)
- Cisco Smart Install
- Cisco Smart Configuration
- Web-Based Management
- Command Line Interface
- SNMP v1, v2c, v3
- RMON 1, 2, 3, 9
- Telnet
- DHCP
- Syslog
- MIB
- QoS
- VLAN
Media & Performance
- Ethernet Technology:
- Gigabit Ethernet
- Fast Ethernet
- Media Type Supported: Twisted Pair
- Network Technology:
- 10/100/1000Base-T
- 10/100Base-TX
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: Power Supply
Memory
- Memory Technology: DRAM
- Flash Memory: 64 MB
- Standard Memory: 128 MB
Warranty
- Limited Warranty: Lifetime
Network & Communication
- Layer Supported: 2
