| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Catalyst 2960 Series Switch |

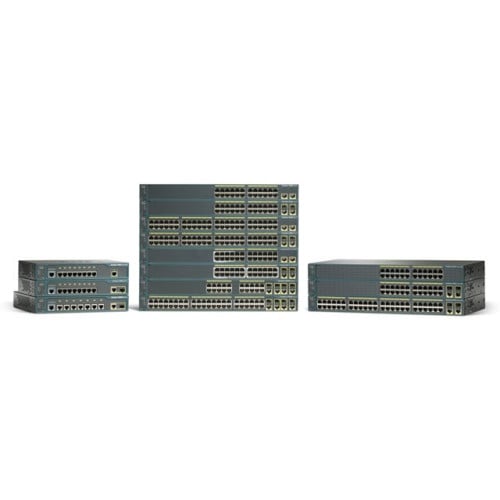

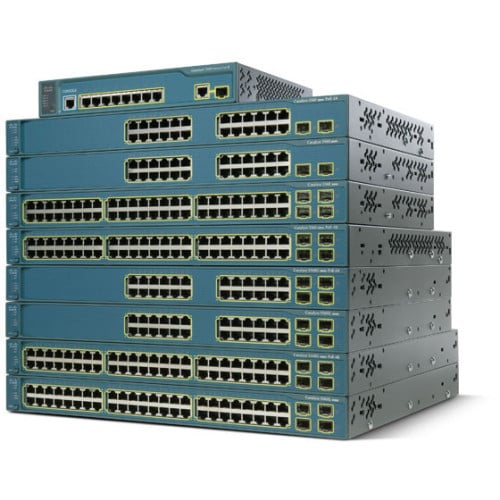

Cisco Catalyst 2960 Series Switch Specs
General Information
- Product Type: Ethernet Switch
- Product Series: 3560-X
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: WS-C3560X-48PF-E
- Product Name: Catalyst WS-C3560X-48PF-E Ethernet Switch
- Product Line: Catalyst
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.8"
- Width: 19.5"
- Depth: 17.5"
- Form Factor:
- Rack-mountable
- Desktop
- Weight (Approximate): 16.60 lb
Interfaces/Ports
- Number of PoE+ (RJ-45) Ports: 48
- Total Number of Network Ports: 48
- Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
- Token Ring Port: No
- LRE Port: No
- Modular: No
- Bypass: No
Management & Protocols
- Manageable: Yes
- Management:
- CLI
- MIB
- SNMP
- VLAN
- RMON
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Media Type Supported: Twisted Pair
- Network Technology: 10/100/1000Base-T
- Twisted Pair Cable Standard: Category 5e
Memory
- Memory Technology: DRAM
- Flash Memory: 64 MB
- Standard Memory: 256 MB
Network & Communication
- Layer Supported: 2
Warranty
- Limited Warranty: Lifetime
Reliability
- MTBF: 149594 Hour
