Additional Information
| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Layer 3 Switch
- Product Series: 3650
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: 3650-24T

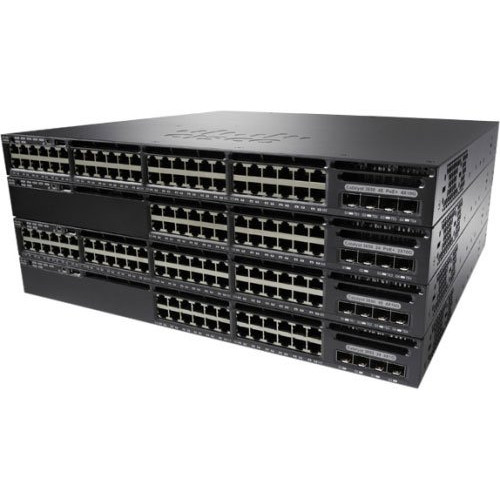

- Product Name: Catalyst 3650-24T Layer 3 Switch
- Product Line: Catalyst
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.7"
- Width: 17.5"
- Depth: 17.6"
- Form Factor:
- Rack-mountable
- Desktop
- Weight (Approximate): 15.15 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 24
- Stack Port: Yes
- Total Number of Network Ports: 24
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Uplink
- Token Ring Port: No
- LRE Port: No
- Modular: No
- Management Port: Yes
- Uplink Port: Yes
- Bypass: No
Management & Protocols
- Manageable: Yes
- Management:
- QoS
- VLAN
- Embedded Event Manager (EEM)
- RMON
- SNMP v1, 2c, 3
- MIB
- DHCP
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Media Type Supported: Twisted Pair
- Network Technology: 10/100/1000Base-T
- Twisted Pair Cable Standard: Category 5e
I/O Expansions
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Memory
- Memory Technology: DRAM
- Flash Memory: 2 GB
- Standard Memory: 4 GB
Network & Communication
- Layer Supported: 4
Reliability
- MTBF: 661800 Hour
