Additional Information
| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Catalyst 3750 Series Switch |

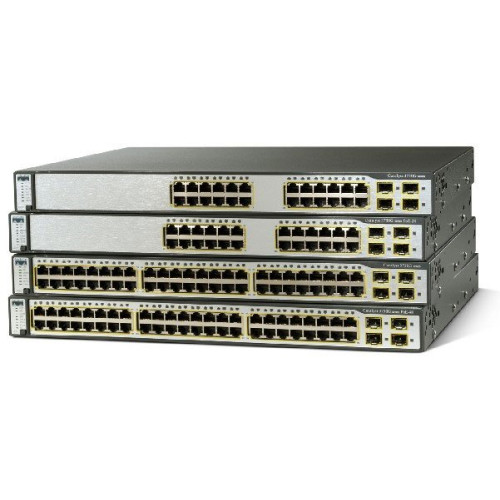

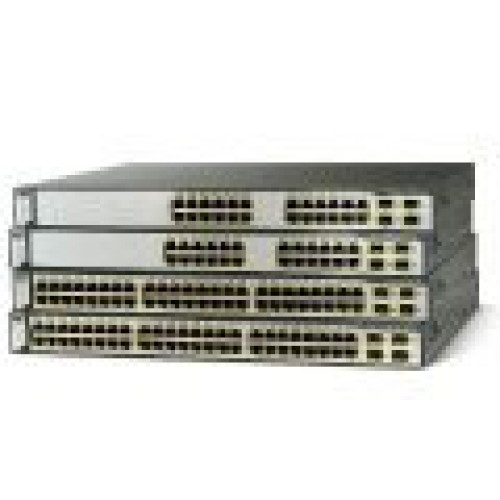

Cisco Catalyst 3750 Series Switch Specs
General Information
- Product Type: Layer 3 Switch
- Product Series: 3750-X
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: WS-C3750X-48U-S
- Product Name: Catalyst WS-C3750X-48U-S Layer 3 Switch
- Product Line: Catalyst
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.8"
- Width: 19.5"
- Depth: 17.5"
- Form Factor: Rack-mountable
- Weight (Approximate): 16.70 lb
Interfaces/Ports
- Number of PoE+ (RJ-45) Ports: 48
- Stack Port: Yes
- Total Number of Network Ports: 48
- Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
- Token Ring Port: No
- LRE Port: No
- USB: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS-5
- Package Contents:
- Catalyst WS-C3750X-48U-S Layer 3 Switch
- 1100W AC Power Supply
- Catalyst WS-C3750X-48U-S Layer 3 Switch
- 1100W AC Power Supply
- Certifications & Standards:
- IEEE Standards:
- 802.1s
- 802.1w
- 802.1x
- 802.1x-Rev
- 802.3ad
- 802.1ae
- 802.3af
- 802.3at
- 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- 802.1D Spanning Tree Protocol
- 802.1p CoS Prioritization
- 802.1Q VLAN
- 802.3 10BASE-T specification
- 802.3u 100BASE-TX specification
- 802.3ab 1000BASE-T specification
- 802.3z 1000BASE-X specification
- EMI and EMC Compliance:
- FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN 55022 Class A
- CISPR 22 Class A
- AS/NZS 3548 Class A
- BSMI Class A (AC input models only)
- VCCI Class A
- EN 55024
- EN300386
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN 61000-6-1
- Safety Compliance:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- CCC
Management & Protocols
- Manageable: Yes
- Management:
- QoS
- VLAN
- RMON 1,2,3,9
- Embedded Event Manager
- Command-line interface
- Syslog
- SNMP v1, v2c, v3
- DHCP
- Telnet
- Cisco Network Assistant
- MIB
- CiscoWorks LAN Management Solution
Media & Performance
- Ethernet Technology:
- Gigabit Ethernet
- Fast Ethernet
- Network Technology:
- 10/100/1000Base-T
- 10/100Base-TX
Power Description
- PoE (RJ-45) Port: Yes
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
Memory
- Memory Technology: DRAM
- Flash Memory: 64 MB
- Standard Memory: 256 MB
Warranty
- Limited Warranty: Lifetime
Network & Communication
- Layer Supported: 3
I/O Expansions
- Number of Total Expansion Slots: 1
Reliability
- MTBF: 184120 Hour
