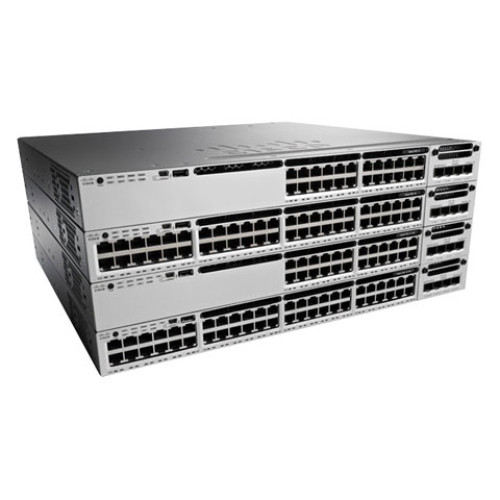

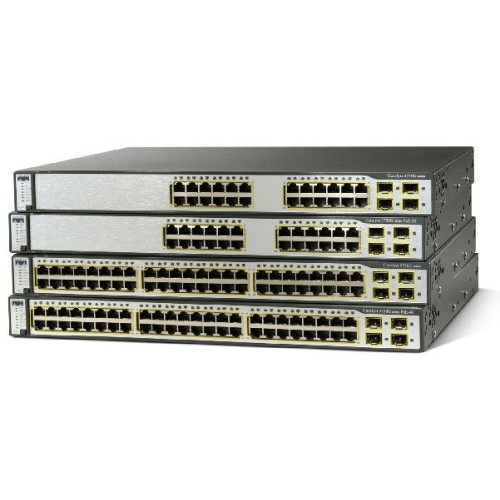

Cisco Catalyst 3750 Series Switch Specs
General Information
- Product Type: Layer 3 Switch
- Product Series: 3850
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: WS-C3850-48T
- Product Name: Catalyst 3850 48 Port Data IP Services
- Product Line: Catalyst
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.8"
- Width: 17.5"
- Depth: 17.7"
- Form Factor: Rack-mountable
- Weight (Approximate): 17 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 48
- Stack Port: No
- Total Number of Network Ports: 48
- Token Ring Port: No
- LRE Port: No
- USB: Yes
- Modular: No
- Management Port: Yes
- Uplink Port: No
- Bypass: No
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS-5
- Package Contents:
- Catalyst 3850 48 Port Data IP Services
- 350W AC Power Supply
- Catalyst 3850 48 Port Data IP Services
- 350W AC Power Supply
- Certifications & Standards:
- IEEE Standards:
- 802.1w
- 802.1x
- 802.1x-Rev
- 802.3ad
- 802.3af
- 802.3at
- 802.3x
- 802.1D
- 802.1p
- 802.1Q
- 802.3
- 802.3u
- 802.3ab
- 802.3z
- 802.1s
- Safety Certifications:
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- GOST
- NOM
- Electromagnetic Emissions Certifications:
- FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN 55022 Class A
- CISPR 22 Class A
- AS/NZS 3548 Class A
- BSMI Class A (AC input models only)
- VCCI Class A
- EN 55024
- EN300386
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN 61000-6-1
Management & Protocols
- Manageable: Yes
- Management:
- MIB
- RMON I and II
- SNMPv1, v2c, v3
- QOS
- VLAN
- DHCP
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Media Type Supported: Twisted Pair
- Network Technology: 10/100/1000Base-T
- Twisted Pair Cable Standard: Category 6
Memory
- Memory Technology: DRAM
- Flash Memory: 2 GB
- Standard Memory: 4 GB
Warranty
- Limited Warranty: 90 Day
Network & Communication
- Layer Supported: 3
I/O Expansions
- Number of Total Expansion Slots: 1
Reliability
- MTBF: 303660 Hour
