| Manufacturer | Cisco |
|---|---|

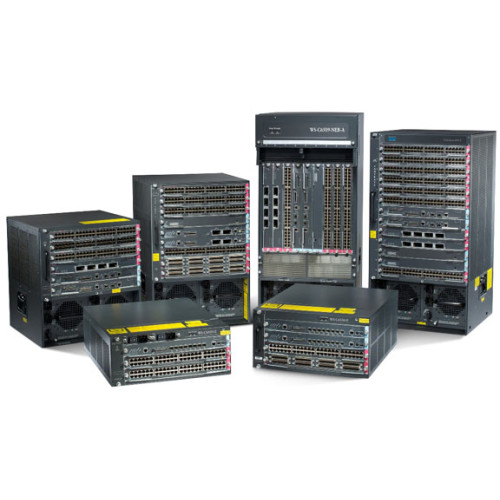

| Model Name | Catalyst 6500 Series Switch |
General Information
- Product Type: Switching Module
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Name: Catalyst 4-port 10-Gigabit Ethernet Switching Module
Technical Information
- Application/Usage: Switching Network
Other
- Compatibility:
- Catalyst 6500 Series
- Catalyst 6500 Series
- Package Contents:
- Catalyst 4-port 10-Gigabit Ethernet Switching Module
- Catalyst 6500 256MB DDR, xCEF720 (67xx interface, DFC3A) (MEM-XCEF720-256M)
- Catalyst 6500 Central Fwd Card for WS-X67xx modules (WS-F6700-CFC)
- Catalyst 6500 Xenpak Blank Covers for 6802/6704-10GE (WS-F6K-XENBLNKCVR)
- Catalyst 4-port 10-Gigabit Ethernet Switching Module
- Catalyst 6500 256MB DDR, xCEF720 (67xx interface, DFC3A) (MEM-XCEF720-256M)
- Catalyst 6500 Central Fwd Card for WS-X67xx modules (WS-F6700-CFC)
- Catalyst 6500 Xenpak Blank Covers for 6802/6704-10GE (WS-F6K-XENBLNKCVR)
- Certifications & Standards: IEEE 802.3ab
- System Requirements: The module can be installed in slots 2 - 6 in the Catalyst 6506, slots 2 - 9 in the Catalyst 6509 and Catalyst 6509-NEB, and slots 9 - 13 in the Catalyst 6513 switches. It cannot be installed in slots 2 - 8 of the Catalyst 6513 switch. The module requires a Supervisor Engine 720.
- Additional Information:
- The QoS port architecture (Rx/Tx) for this module is 1q8t/1p7q8t.
- Backplane Connection: Switch fabric (dual channel)
- Forwarding: Centralized. Support for distributed forwarding with optional DFC
- Number of Transmit Queues/Port: 3
- Number of Receive Queues/Port: 2
Controls/Indicators
- Status Indicators:
- Status
- Link
- Phone
Media & Performance
- Data Transfer Rate: 10 Gbps
Warranty
- Limited Warranty: 90
I/O Expansions
- Expansion Slots: 4 x Expansion Slot
