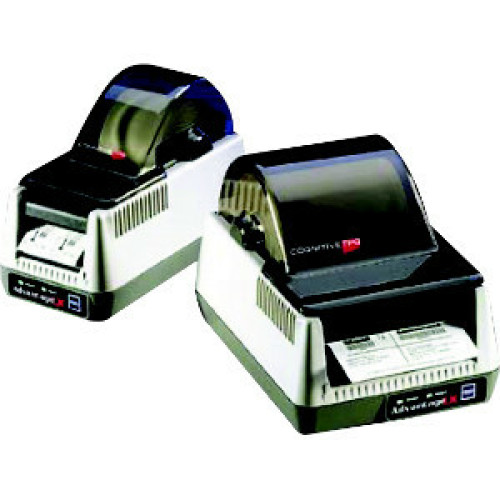

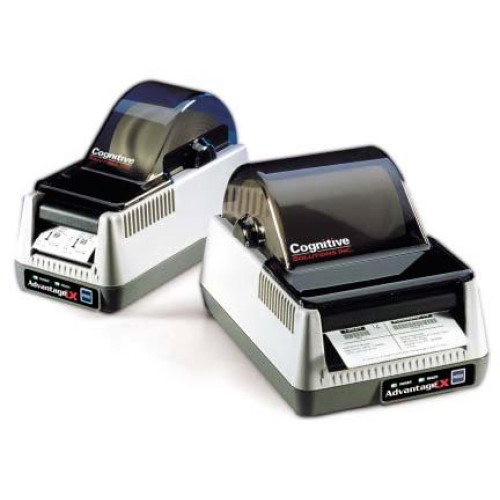

CognitiveTPG Advantage LX Barcode Printer Part # LBT42-2043-013G

The Advantage LX is an ideal printer for industrial applications that require a rugged and capable printer. Designed for warehouse and manufacturing environments the Advantage LX can handle print-runs of 5000 labels to fulfill the demands of any application.

LBT42-2043-013G - CognitiveTPG Advantage LX Bar code Printer

Part Details: CognitiveTPG Advantage LX Thermal Transfer Barcode Printer, 203 dpi print resolution, 4.2" print width, Serial and Parallel interfaces, 2MB DRAM, 4MB flash. Includes U.S. power supply and product reference guide. Order cables separately.
New

Additional Information

Filter Filter
Interface Options Parallel, Serial
Label Core 1.5 inches
Manufacturer CognitiveTPG
Max Label Width 4.30
Max Roll Outer Diameter 4.7
Maximum Print Width 4.10
Model Name Advantage LX
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 3
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
Ribbon Core 0.5

Technical Information

  • Maximum Mono Print Speed: 2.99 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Add2
    • Add5
    • Codabar
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • D2 of 5
    • I-2/5
    • S2 of 5
    • EAN-8+
    • EAN-8
    • EAN-13
    • EAN-13+
    • EAN 128
    • Maxi Code
    • MSI1
    • PDF-417
    • Plessey
    • POSTNET
    • UPC-A
    • UPC-A+
    • UPC-E
    • UPC-E1
    • MSI
    • MSI PLESSEY
    • UCC/EAN 128
    • EAN/JAN-8
    • EAN/JAN-13
    • Code 2 of 5

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: LBT42-2043-013G
  • Product Name: LBT42-2043-013G Thermal Transfer Label Printer
  • Product Line: Advantage LX

Physical Characteristics

  • Height: 6.1"
  • Width: 6.8"
  • Depth: 9.4"
  • Form Factor: Desktop
  • Weight (Approximate): 4.40 lb

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • LBT42-2043-013G Thermal Transfer Label Printer
    • Quick Start Guide
    • Power Supply
    • LBT42-2043-013G Thermal Transfer Label Printer
    • Quick Start Guide
    • Power Supply

Media Types & Handling

  • Maximum Label Width: 4.30"
  • Media Type:
    • Black Bar
    • Notch
    • Gap
  • Maximum Roll Diameter: 4.70"

Memory

  • Standard Memory: 2 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: CPL
