9162 CognitiveTPG

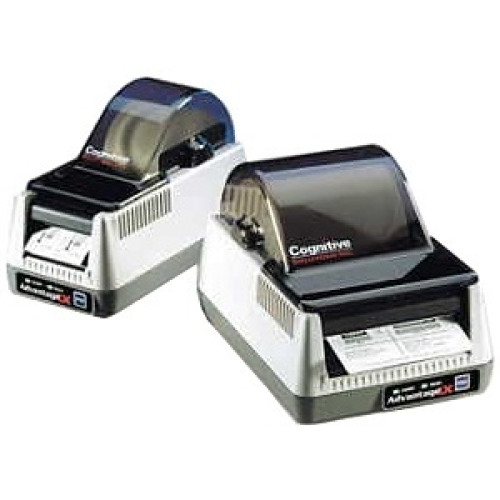

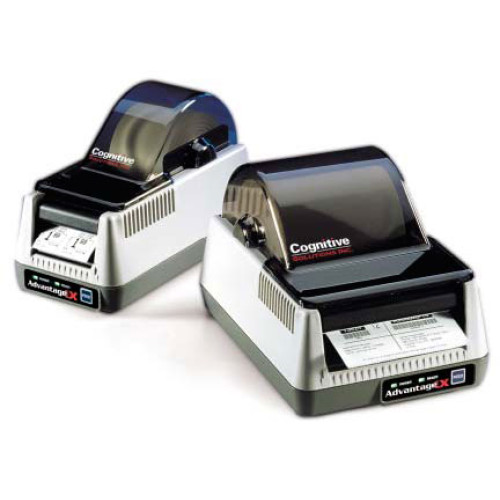

CognitiveTPG Advantage LX Bar code Printer Part # LBT42-2043-016

The Advantage LX is an ideal printer for industrial applications that require a rugged and capable printer. Designed for warehouse and manufacturing environments the Advantage LX can handle print-runs of 5000 labels to fulfill the demands of any application.

LBT42-2043-016 - CognitiveTPG Advantage LX Bar code Printer

Part Details: Advantage LX, Thermal transfer, 203 dpi, 3 ips, 4.1" print width, serial, parallel, & Ethernet interfaces, 2MB DRAM, 4MB flash. Includes US power supply & product reference guide. Order cables separately. See accessories.
InStock
MSRP: $1,028.30 Price: $668.83
In Stock - Ships Free

Additional Information

Filter Filter
Interface Options Ethernet, Parallel, Serial
Label Core 1.5 inches
Manufacturer CognitiveTPG
Max Label Width 4.30
Max Roll Outer Diameter 4.7
Maximum Print Width 4.10
Print Method Thermal Transfer
Print Resolution 203 dpi
Print Speed 3
Printer Mobility Not Mobile
Printer Type Desktop
Product Condition New
Ribbon Core 0.5
  • Direct thermal or Thermal transfer Configurations
  • 2" and 4" Models
  • Simple Design, Strong Foundation
  • High-Performance Printing in a Small Footprint
  • Full Metal Mechanism
  • Options for Serial, Parallel, or Ethernet Interfaces
  • True Workhorse, Designed to Print 5k plus labels per day
  • 2-Year Warranty

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 3 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
    • 1 x Ethernet
  • Maximum Print Width: 4.1"
  • Maximum Label Width: 4.3"
  • Maximum Label Length: 20"
  • Media Sensor:
    • Gap
    • Notch
    • Black Bar
  • Input Voltage: 120 V AC
  • RAM Memory: 512KB
  • Flash Memory: 4MB

General Information

Physical Characteristics

  • Dimensions:
    • 6.1" (154.94mm) x 6.8" (172.72mm) x 9.4" (239mm)
    • 6.1" (154.94mm) x 6.8" (172.72mm) x x 9.4" (239mm)
  • Weight: 4.4 lb (2 kg)

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -4°F (-20°C) to 122°F (50°C) Storage
  • Humidity: 25 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 4.7"

Warranty

  • Manufacturer Warranty: 2 Year(s) Limited
Extended Details

Recommended Accessories

Recommended Labels

  • CognitiveTPG Labels Label (03-02-1764)

    2.4" x 1" Direct thermal paper label. Removable adhesive. 1,685 labels/roll, 12 roll case.
    MSRP: $233.35 Price: $201.67
    Ships in 3-5 Days
  • CognitiveTPG Labels Label (03-02-1368)

    2" x 0.56" Direct thermal paper label. Black mark. 2,665 labels/roll, 12 roll case. for Barcode Blazer Printers.
    MSRP: $230.40 Price: $199.11
    Ships in 3-5 Days
  • CognitiveTPG Labels Label (03-02-1820)

    2.4" x 2" Direct thermal paper label. 914 labels/roll, 12 roll case.
    MSRP: $221.71 Price: $191.61
    In Stock
  • CognitiveTPG Labels Label (03-02-1520)

    1.15" x 1" Direct thermal paper label. 2 across. 3,370 labels/roll, 12 roll case.
    MSRP: $148.79 Price: $128.57
    In Stock
  • CognitiveTPG Labels Label (03-02-1521)

    2.4" x 3" Direct thermal paper label. 627 labels/roll, 12 roll case.
    MSRP: $151.73 Price: $131.13
    In Stock

Recommended Printheads

  • CognitiveTPG Advantage LX (60-17-00-0024)

    Advantage LX, DLX, and Blaster BD24XX, Replacement Printhead Kit, Compatible Printer Model Advantage LX, DLX, and Blaster BD24XX
    MSRP: $134.58 Price: $100.98
    In Stock - Ships Free

Recommended Ribbons

  • Cognitive Blaster Advantage Ribbon (04-00-0031-02)

    Blaster Advantage, 2.4" x 263' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0031-02-R)
    MSRP: $99.57 Price: $97.20
    In Stock
  • Cognitive Blaster Advantage Ribbon (04-00-0028-08)

    Blaster Advantage, 2.4" x 263' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 12, Core Size: 0.5"
    MSRP: $99.57 Price: $97.20
    Ships in 3-5 Days
  • Cognitive Blaster Advantage Ribbon (04-00-0028-06)

    Blaster Advantage, 2.4" x 2874" Black resin ribbon on a 4" core. Compatible with DLX, Advantage LX, and Blaster Printers. 12 ribbon case. Used with polyester labels.
    MSRP: $149.98 Price: $146.43
    Ships in 3-5 Days
  • Cognitive Blaster Advantage Ribbon (04-00-0028-04)

    Blaster Advantage, 2.4" x 263' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0028-04-R)
    MSRP: $87.53 Price: $85.44
    In Stock
  • Cognitive Blaster Advantage Ribbon (04-00-0028-07)

    Blaster Advantage, 4.25" x 263' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 12, Core Size: 0.5"
    MSRP: $154.99 Price: $151.31
    Ships in 3-5 Days
