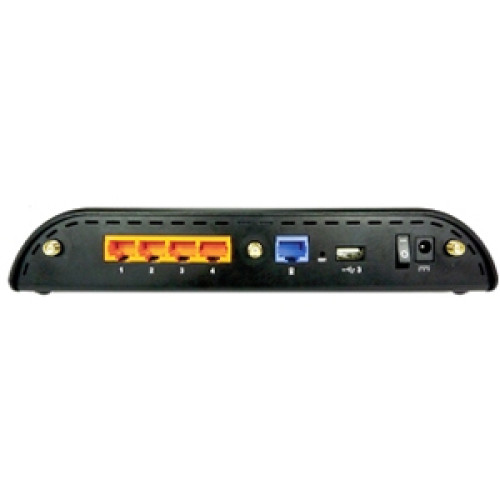

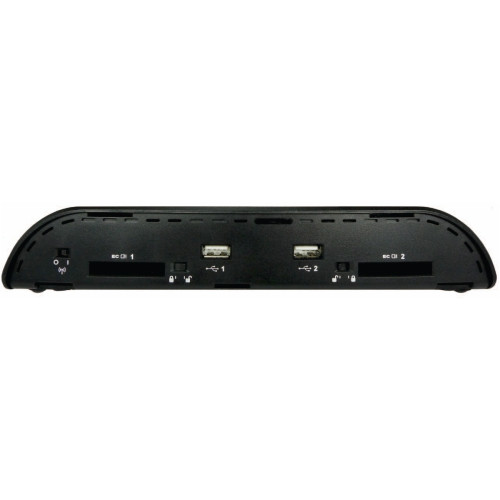

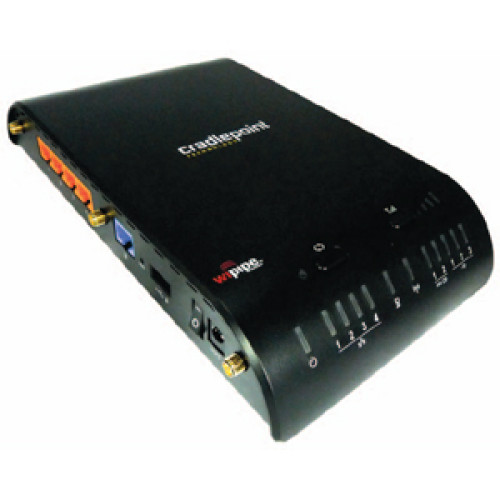

CradlePoint MBR1400 Wireless Router
Part #: MBR1400 | SKU: CRA127381

CradlePoint's Mission-Critical Broadband Router (MBR1400 takes the power and flexibility of our industry leading router, and when combined with an active high-speed wireless broadband data connection, gets your business network online in no time. Designed for small business, branch office, and retail locations - our business series router provides a secure primary or backup connection to the internet. In addition to connection options for traditional wired networking solutions like Cable, DSL, or T1, the most powerful feature of the MBR1400 is its ability to use USB or ExpressCard Data Modems to create instant networks anywhere you receive a broadband signal.

CradlePoint MBR1400 Wireless Router

Part Details: CradlePoint MBR1400 IEEE 802.11n Wireless Router - 4G - 2.40 GHz ISM Band - 5 GHz UNII Band - 3 x Antenna - 750 ft Outdoor Range - 6.75 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - Desktop

Need a different version of the CradlePoint MBR1400 Data Networking? View all 2 configurations

Additional Information

Manufacturer	CradlePoint
Model Name	MBR1400

CradlePoint MBR1400 Specs (pdf)

General Information

Product Type: Wireless Router
Brand Name: CradlePoint
Manufacturer: CradlePoint, Inc
Product Model: MBR1400
Product Name: MBR1400 Wireless Broadband Router

Physical Characteristics

Height: 1.6"
Width: 9.1"
Depth: 5.1"
Form Factor: Desktop

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
USB: Yes
Number of Network (RJ-45) Ports: 4
Number of Broadband (RJ-45) Ports: 1
PoE (RJ-45) Port: No
VGA: No
Network (RJ-11): No
Powerline: No
Management Port: No
Serial: No

Wireless Specifications

Broadband Transmission Technology: Cellular
Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
Outdoor Antenna Range: 750 ft
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Cellular Generation: 4G
Total Number of Antennas: 3
Wireless Transmission Speed: 54 Mbps
Antenna Type: High Gain Antenna
Antenna Connector: RP-SMA Connector
Features:
- MIMO Technology
- Quality of Service (QoS)
Wireless Security:
- 64/128-bit WEP
- WPA
- WPA-PSK
- WPA2-PSK
- WPA-Enterprise
- WPA2-Enterprise
- WPS
- AES
- TKIP

Management & Protocols

Management:
- DHCP
- SNMP
- Web-Based Management (HTTP/HTTPS)
- Server-based Centralized Management (WiPipe Central)
Security Features:
- IPSec
- L2TP
- PPTP
- VPN
- DES
- 3DES
- MD5
- MAC Address Filtering
- Website Filtering
- Content Filtering
- Protocol Filtering
- Port Blocking
- Service Filtering
- Inbound Filtering
- SPI
- NAT
- DMZ

Other

Package Contents:
- MBR1400 Wireless Broadband Router
- AC Adapter
- MBR1400 Wireless Broadband Router
- AC Adapter
Certifications & Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab

I/O Expansions

Expansion Slots: 2 x ExpressCard

Network & Communication

Ethernet Technology: Gigabit Ethernet

Extended Details
