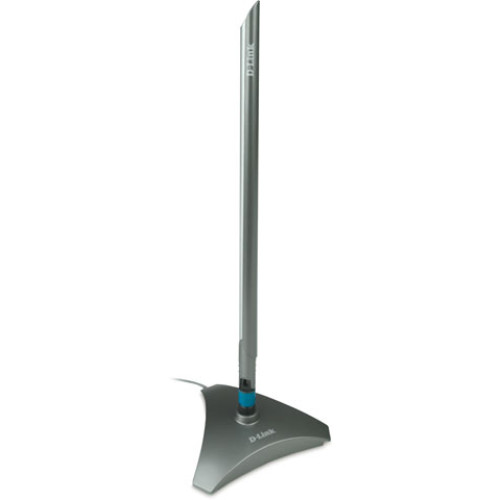

D-Link ANT24-0700 Data Networking
Part #: ANT24-0700 | SKU: D-L33821

D-Link introduces the ANT24-0700 Omni-Directional 7dBi Indoor Antenna designed to provide extended coverage for an existing 802.11b/g wireless network. The omni-directional design of the ANT24-0700 offers dramatically increased wireless signal coverage in all directions. With 360° of better signal reception, this high-gain antenna will also improve data throughput at farther distances. The D-Link ANT24-0700 connects to a variety of wireless routers and access points on the market today. Whether the wireless router or access point has an SMA or TNC connector, the ANT24-0700 comes with an RP-SMA to RP-TNC conversion adapter to accommodate either connector type.

D-Link ANT24-0700 Data Networking

Part Details: D-Link ANT24-0700 2.4GHz Omni-Directional 7dBi Indoor Antenna - 7 dBiOmni-directionalOmni-directional

Need a different version of the D-Link ANT24-0700 Data Networking? View all 1 configurations

Additional Information

Manufacturer AIDC	D-Link
Model Name	ANT24-0700

D-Link ANT24-0700 Specs (pdf)

Technical Information

Antenna Gain: 7 dBi
Directivity: Omni-directional
Frequency Band Type: UHF
Frequency: 2.40 GHz to 2.50 GHz
Impedance: 50 Ohm
Polarization: Linear Vertical
Cable Length: 4.92 ft

General Information

Product Type: Antenna
Brand Name: D-Link
Manufacturer: D-Link Systems, Inc
Product Model: ANT24-0700
Product Name: ANT24-0700 2.4GHz Omni-Directional 7dBi Indoor Antenna

Interfaces/Ports

Connector Type: RP-SMA

Other

Application/Usage: Wireless Data Network
Package Contents:
- Magnetic Base* with Extension Cable and Mounting Kit for Flexible Placement
- Magnetic Base* with Extension Cable and Mounting Kit for Flexible Placement
Certifications & Standards:
- IEEE:
- IEEE 802.11b
- IEEE 802.11g
Additional Information:
- RP-SMA to TNC Adapter
- Cable: 1.5m RG-178 50 Ohms
- * Warning: The base unit is magnetic. Keep magnetic base at least 6 inches away from electronic devices; computers, TV's, video equipment, and tapes. Exposure to magnetic base may cause device or data on disks to become corrupted.

Warranty

Limited Warranty: 1 Year
