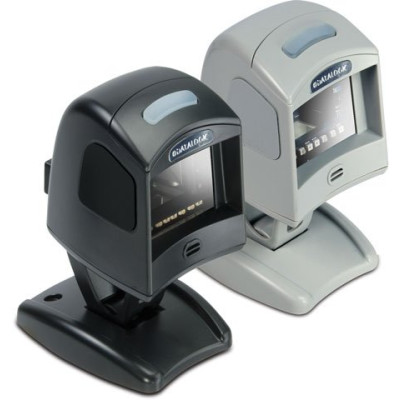

DataLogic Magellan 1000i Specs
Omni-Directional Imaging Scanner
Features
- Aggressive imaging performance and intuitive operation reduces checker training and speeds checkout for better customer service
- New imaging technology eliminates moving parts associated with laser scanners for improved reliability
- Hands-free scanning for small, easily handled items, handheld scanning for bulkier items
- Precise imaging scan volume eliminates misreads caused by stray laser scan lines
- Small footprint and size allow for easy integration into point-of-sale and OEM applications
- Textured grip area and small size allow hands of all sizes to comfortably hold the scanner when needed
- Checkpoint Systems EAS compatible
- Optional targeted scanning mode for PLU Lists
- Optional tilting stand allows scan volume to be optimized for each user and has screw holes for fixed mounting
- Standard product is available in either Black or Gray. Other colors and custom logo options are available for a minimum quantity purchase.
Accessories
- Tilting Riser Stand
- Fixed Mounting Plate
New imaging technology provides aggressive performance in a
space saving design
The is designed for "small-counter"
retail environments incorporates several new design wins for the
user. Our design objectives were simple: improve checkout
productivity while protecting the customer’s investment by adding
capabilities that would extend the typical life of the scanner.
We developed a new barcode scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio.
The will also be very effective at protecting the user’s investment by potentially extending the useful life of the scanner. PSC’s new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the has PSC’s multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.
The imaging technology allows users to scan barcodes in any orientation with either a sweep or a presentation style of scanning; a first for retail imaging scanners.
Specifications
Mechanical
| Dimensions |
Scanner
|
Stand
|
Scanner with Stand
|
|---|---|---|---|
| Height |
3.3" / 8.3 cm
|
2.3" / 5.8 cm
|
5.5" / 14.0 cm
|
| Width |
2.8" / 7.1 cm
|
2.9" / 7.4 cm
|
2.9" / 7.4 cm
|
| Length |
3.7" / 9.5 cm
|
3.8" / 9.7 cm
|
3.8" / 9.7 cm
|
| Weight |
7.0 oz / 198 g
|
6.6 oz / 187 g
|
13.6 oz / 385 g
|
Environmental
Temperature rating
- Operating: 32° to 104° F / 0° to 40° C
- Storage/transport: -40° to 158° F / -40° to 70° C
Humidity
- 5 to 95% NC (non-condensing)
Shock
- Multiple 4' / 1.2 m drops
Water & Dust resistance
- IP52
Electrical
Operating Voltages
- 5.0V model ± 5%
- 7.0-12.0V model ± 5%
Operating Current (idle)
- < 300mA
Operating Current (Label Read)
- < 400mA
Communications
- RS-232
- USB
- IBM USB
- Keyboard Wedge
- Wand Emulation
- IBM 46xx / RS-485
Optical
Scan pattern
- 100 line
Scan Rate
- 1,000 digital scan lines/second
Single Line Activation
- Optional Button
Scan Volume
- 70.0 in³ / 178.0 cm³
Depth of Field- Range Comparisons
| LABEL DENSITY |
RANGE
|
| 5 mil |
0.50- 1.75" / 0.64- 4.45 cm
|
| 7.5 mil |
0.25-2.25" / 0.64-5.72 cm
|
| 10 mil |
0-5" / 0-12.7 cm
|
| 13 mil UPC |
0-6" / 0-15.2 cm
|
| 20 mil |
0-6.75" / 0-17.15 cm
|
Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
Minimum Resolution
- 5 mil
Print Contrast
- 25%
Roll
- 0 - 360°
Pitch
- ±65°
Yaw
- ±75°
Ambient Light
- Indoor: < 6,000 Lux / 557 foot candles
- Outdoor: < 86,100 Lux / 7,999 foot candles
Decoding Capability
The autodiscriminates between the following supported symbologies:
Retail Codes:
- UPC Versions A&E
- UPC Supplementals (Bookland & Coupon Code)
- UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- Dual Barcodes for Japan (2 label read)
- Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
- EAN 8 & 13 with full expansion 8 to 13
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN two label
- UCC/EAN 128
- Italian Pharmacode
- Supports GTIN
Industrial Codes:
- Code 39 (with full ASCII)
- Code 128 (Up to 80 characters, including Code 39 conversions)
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/Plessey
Safety and Regulatory
Electrical
- Gost R
- TÜV
- UL
- cUL
Emissions - Complies to:
- FCC
- EN 55022
- AS/NZS 3548
- VCCI
Other
EAS compatibility
- Integrated EAS hardware works with Checkpoint Systems.
-
Scanner Capability
-
Scanner Type
-
Included Cables
-
Datalogic Magellan 1000i Barcode Scanner
Part #: MG10-0041-000-411 | SKU: DAT48195Datalogic Magellan Desktop 1000i Bar Code Reader - Wired - Imager -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG10-2010-100-106 | SKU: DAT48199Magellan 1000i Omni-Directional Imaging Scanner (5V with Trigger, RS232 DB9 12 Foot Cable and U/S Power Supply) - Color: Black -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG100010-101-106R | SKU: DAT48205Magellan 1000i, Omnidirectional Imaging Scanner (RS-232, No Button, US Power supply 8-0423-80, Stand and) - Color: Black -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG102041-000-411R | SKU: DAT48207Magellan 1000i, Omnidirectional Imaging Scanner (5V with Trigger, USB and 12 ft. POT Cable) - Color: Black -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG100041-001-411R | SKU: DAT62779Magellan 1000i, Omnidirectional Imaging Scanner Optional: Target Scanning Button. -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG101010-000R | SKU: DAT62780Magellan 1000i, Omnidirectional Imaging Scanner (Scan Only, No Button, RS-232 and Cable) - Color: Gray. -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG102010-101-106R | SKU: DAT62787Omni-directional Scanner kit. IncludesRS-232cable. RoHS Compliant. -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG103041-002-411R | SKU: DAT62791Magellan 1000i, Scanner Kit with Standard USB Cable, Tilting Stand, Target Scanning Button, Color: Gray. -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG100010-111-106BR | SKU: DAT74066Magellan 1000i, Omnidirectional Imaging Scanner (RS-232, No Button, US Power supply, Standard Kit, 2D and 12 ft. Cable) - Color: Black -
Datalogic Magellan 1000i Barcode Scanner
Part #: MG102041-001-411BR | SKU: DAT79676Datalogic Magellan 1000i Bar Code Reader - Wired - Imager
