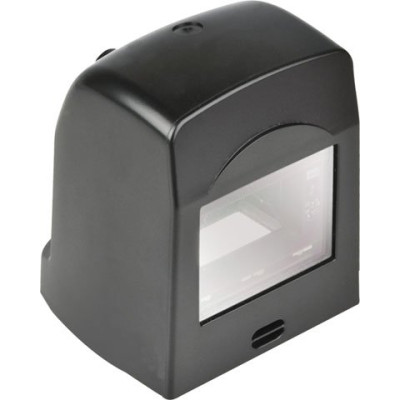

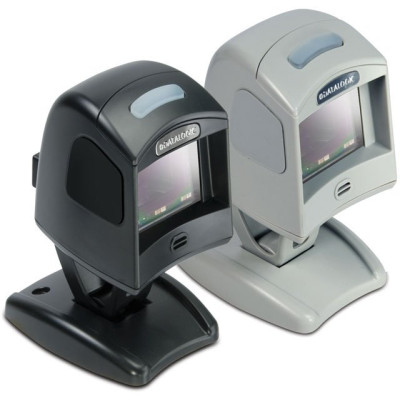

Datalogic Magellan 1100i Barcode Scanner

Datalogic Magellan 1100i Barcode Scanner

The Datalogic Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. The Magellan 1100i uses Datalogic's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.
Discontinued - Need Assistance
See all options
Decoding Capability
  • 1D / Linear Codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
  • 2D Codes
    • Aztec Code
    • Data Matrix
    • MaxiCode
    • QR Code
  • Stacked Codes
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
Electrical
  • Current
    • Operating (Typical)
      • < 400 mA
    • Standby/Idle (Typical)
      • < 300 mA
  • Input Voltage
    • 4.5 - 14.0 VDC
Environmental
  • Ambient Light
    • Indoor
      0 to 6,000 lux
    • Outdoor
      0 to 86,100 lux
  • Drop Resistance
    • Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
  • ESD Protection (Air Discharge)
    • 25 kV
  • Humidity (Non-Condensing)
    • 5 - 95%
  • Particulate and Water Sealing
    • IP52
  • Temperature
    • Operating
      • 0 to 40 ?C / 32 to 104 ?F
    • Storage/Transport
      • -40 to 70 ?C / -40 to 158 ?F
Interfaces
  • IBM 46xx
  • Keyboard Wedge
  • OEM (IBM) USB
  • RS-232
  • USB
Optional Features
  • EAS Features
    • Checkpoint Systems
      • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models
    • Sensormatic
      • Good Read Acknowledgement
  • Value Added Features
    • Diagnostic Reporting
    • Host Download
    • Productivity Index Reporting? (PIR)
Physical Characteristics
  • Colors Available
    • Black
    • Grey
    • Other colors and custom logo options are available for minimum quantity purchase.
  • Dimensions
    • Riser Stand
      5.8 x 7.4 x 9.7 cm / 2.3 x 2.9 x 3.8 in
    • Scanner
      8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in
  • Weight
    • Riser Stand
      187.1 g / 6.6 oz
    • Scanner
      198.5 g / 7.0 oz
Reading Performance
  • Image Capture
    • Optional
      752 x 480 pixels
    • Graphic Formats
      • JPEG
  • Print Contrast Ratio (Minimum)
    • 25%
  • Read Rate (Maximum)
    • 1,768 digital scan lines/sec.
  • Reading Angle
    • Pitch
      • +/- 65?
    • Roll (Tilt)
      • 0 - 360?
    • Skew (Yaw)
      • +/- 75?
  • Reading Indicators
    • Beeper (Adjustable Tone and Volume)
    • Datalogic 'Green Spot' Good Read Feedback
    • Good Read LED
  • Resolution (Maximum)
    • 0.130 mm / 5 mils
  • Scan Lines
    • Digital
      136
Reading Ranges - Typical Depth of Field
  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.
  • 5 mils
    • 1.3 to 4.6 cm / 0.5 to 1.8 in
  • 7.5 mils
    • 0.63 to 5.71 cm / 0.25 to 2.25 in
  • 10 mils
    • 0 to 12.7 cm / 0 to 5.0 in
  • 13 mils
    • 0 to 17.7 cm / 0 to 7.0 in
  • 20 mils
    • 0 to 17.7 cm / 0 to 7.0 in
Safety & Regulatory
  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.
    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance
    • Complies to EU RoHS
  • LED Classification
    • IEC 60825 Class 1 LED
Utilities
  • OPOS / JavaPOS
    • JavaPOS Utilities are available for download at no charge
    • OPOS Utilities are available for download at no charge
  • Remote Host Download
    • Lowers service costs and improves operations
Warranty
  • 2-Year Factory Warranty
Extended Details
Refine Your Options
  1. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG112041-001-411 | SKU: 84470

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D - Laser - Omni-directional - USB
  2. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG112031-001-306B | SKU: 100056

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - IBM 46XX - Black
  3. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG112015-001-119B | SKU: 81299

    Serial Kit - Verifone Ruby - 2D Imager Scanner - Green Spot Technology - Color: Black
  4. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG110041-001-411 | SKU: 86365

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - Keyboard Wedge, USB - Black
  5. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG112041-000-411 | SKU: 82831

    Datalogic Magellan 1100i Desktop Barcode Scanner - Cable Connectivity - 1768 scan/s - Imager - Omni-directional - USB - Black
  6. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG110041-001-414 | SKU: 84468

    Datalogic Magellan 1100i Desktop Barcode Scanner - Cable Connectivity - 1768 scan/s - LED - Imager - Omni-directional - Keyboard Wedge, USB - Black
  7. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG110010-000 | SKU: 81293

    Multi-Interface, No Button, 1D only, Black, RS232 Config. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).
  8. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG112015-001-119 | SKU: 81298

    with Green Spot, 1D only and RS232 Verifone Ruby Kit. Color: Black
  9. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG112010-000 | SKU: 87009

    Datalogic Magellan 1100i Bar Code Reader - Cable Connectivity - 1D, 2D - Omni-directional - Serial - Black
  10. Datalogic Magellan 1100i Barcode Scanner
    Part #: MG110041-001-412B | SKU: 81854

    Datalogic Magellan 1100i Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - Imager - Omni-directional - USB - Black
