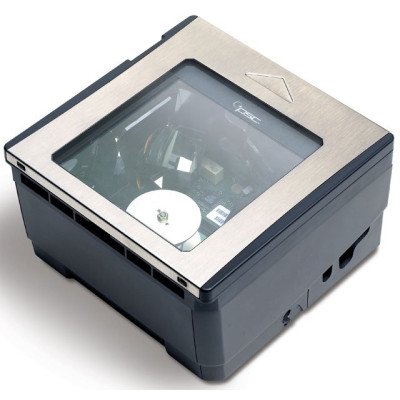

Datalogic Magellan 2300HS Barcode Scanner

The Datalogic Magellan 2300HS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use horizontal scanners in the industry. The Magellan 2300HS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2300HS supports all popular bar code symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2300HS will be a productive part of any enterprise for years to come.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

DataLogic Magellan 2300HS Specs (pdf)

Mechanical

Length

6.0” / 15.2 cm

Width

6.0” / 15.2 cm

Depth

3.83” / 9.7 cm

Weight

2.5 lbs. / 1.1 kg

Optical

Scan lines

Rate

6,000 RPM

Scan Lines/Sec.

1,800

Depth-of-field

6.0” / 15.3 cm

Environmental

Temperature rating

Operating: 50° to 104° F / 10° to 40° C
Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

Operating: 5 to 95% NC
Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

90-265 VAC, 47-63 Hz
4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2300HS autodiscriminates between all of the following supported symbologies

UPC Versions A&E
UPC Supplementals (Bookland & Coupon Code)
UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
Reduced Space Symbology (RSS-14 expanded and stacked)
EAN 8, 13
JAN 8, 13
EAN/JAN two label
UCC/EAN 128
Code 39 (with full ASCII)
Code 128
Code 93
I 2 of 5
Standard 2 of 5
Italian Pharmacode
Codabar/NW7
MSI/Plessey

Communications

Host

RS232, IBM 46XX, IBM USB, USB Keyboard

Other

Powered RS232 auxiliary port

Safety and Regulatory

Electrical

EN60 950 (TÜV Europe)
PSE-Mark (Japan); UL 60950 (USA)
CSA 60950 (Canada)

Emissions

CISPR22-B (World)
FCC part 15 Class B (USA)
VCCI-B (Japan)
EN 55022-B (Europe)
NOM (Mexico)

Laser Safety

CDRH Class IIa (USA/Canada)
EN 60825-1 Class 1(Europe)
IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
IEC 60825 Class 1 (Europe)

Other

EAS compatibility

Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint® Systems
Good read acknowledgement with Sensormatic®

Extended Details

Refine Your Options

Shop By

Currently Shopping by:

Remove This Item Embedded Scale: Embedded Scale

Clear All

Included Features

Embedded Scale (1)

Form Factor

In Counter (1)

Scanner Capability

1D (1)

Embedded Scale

Embedded Scale (1)

Datalogic Magellan 2300HS Barcode Scanner
Part #: M2360-21100-0404BR | SKU: DAT54482

Magellan 2300HS, Horizontal Scanner (Mettler, 8218 Scale, No to P and EAS Interlock)

Recommended Accessories for Model: Datalogic Magellan 2300HS Barcode Scanner

DataLogic CAB-461 Accessory
Part #: CAB-461 | SKU: DAT67384

Cable (3.6 Meters, RS232 RJ10 Aux Port, Coiled) for the Magellan

MSRP: $58.00 Price: $33.92

In Stock
Datalogic 11-0178 Accessory
Part #: 11-0178 | SKU: DAT48325

Counter Mount (for the Magellan 2300HS, HS1250 and 3300HSi)

MSRP: $87.00 Price: $66.03
Datalogic 11-0027 Accessory
Part #: 11-0027 | SKU: DAT16159

Counter Mount, standard

MSRP: $66.00 Price: $50.09
Datalogic Magellan 2300HS Accessory
Part #: 963785 | SKU: DAT48323

Part (DLC Top) for the Magellan 2300HS
Datalogic Magellan 2300HS Accessory
Part #: 964150 | SKU: DAT60360

Part (Tin Oxide Top, DLS) for MGL2300 HS
