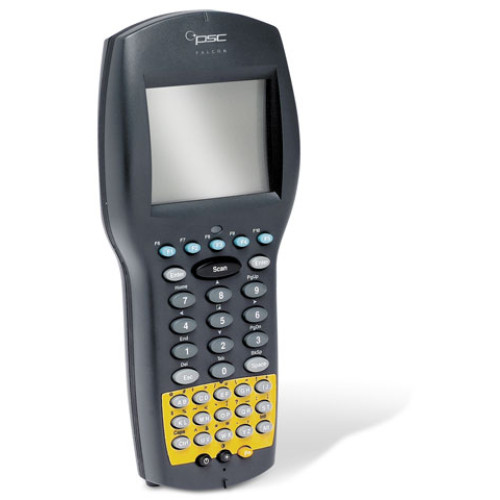

Datalogic Falcon 335 Mobile Computer

Setting A New Standard For Industrial Portable Data Collection Terminals

Falcon 335 Features:

• Powerful 486 Class Processor
• DOS 6.22 Operating System
• 8MB of RAM Standard
• Internal Antenna and Built-in, Front-Shooting Laser
• Environmentally Sealed to an IP54 Rating
• One internal PC Card Slot
• Supports leading wireless LANs including Cisco Aironet, Lucent (Agere) Orinoco, Proxim, and Symbol
• Compatible with IntelliTrack Warehouse Management System
• Legacy system interfacing with PowerNet Twin Client™ and VT-Lite

Fast, accurate, customizable real-time automatic data collection is needed by today´s businesses striving for greater efficiency, productivity and cost effectiveness.

The Falcon 335 by PSC is the answer. Open standards, powerful applications and ease of use allow these portable data collection terminals to integrate seamlessly into the supply chain systems of all companies involved in retail, warehousing, distribution, logistics, and manufacturing.

The Falcon 335 has a sleek, IP54 rated, environmentally sealed case and built-in, front-shooting laser. Its powerful 486 processor, running at 33 MHz, operates under DOS 6.22. The Falcon 335 comes with 8 MB of RAM standard, 2 MB of Flash ROM, an internal PC Card Slot, a 16-line screen. There are two keyboard options: the standard 38 key alphanumeric keypad and the 25-key large numeric keypad. Open architecture ensures easy application development. And the Falcon 335 wireless terminal is available with PowerNet Twin Client™ to support VT100, VT220, HP700/92, IBM 3270 and IBM 5250 terminal emulations with screen formatter, allowing swift and simple integration into your existing legacy system.

While the Falcon 335 provides ideal batch data collection solutions, the Falcon 335 , a wireless data collection terminal, excels in data collection throughut the supply chain where real-time access to dat is required. Its internal antenna is protected and its 2.4Ghz spread spectrum radio options include Cisco Aironet, Lucent (Agere) Orinoco, Proxim and Symbol radio support for maximum flexibility. The Falcon 335 has raised the bar in RF, real-time data collection technology.

With international quality standards set by ISO 9000, Computer Integrated Manufacturing (CIM), Just In Time (JIT), and Total Quality Control (TQC), companies are required to have documented procedures and effective automated data capture applications, such as inventory control, work in progress, labor tracking, receiving-putaway and pick/ship systems. The aptly named Falcon soars in this tough environment.

Falcon 335 Specifications

Mechanical

Falcon 335 Dimensions

• Length 7.8" (19.8 cm)
• Width at display 3.4" (8.6 cm)
• Width at grip 2.5" (6.4 cm)
• Height at grip 1.4" (3.6 cm)

Weight (w/battery pack)

• No radio, no laser 11.5 oz (325 g)
• No radio, w/laser 11.7 oz (330 g)
• Radio, no laser 12.7 oz (360 g)
• Radio, w/laser 12.9 oz (365 g)

Display

• Super-twist graphics LCD
• Backlight w/programmable timeout
• 128x160 pixels plus 8 on-screen icons
• Formats: 16x26, 16x20 and
• 8 lines x 20 characters

Keypad

• 38-key alphanumeric
• Single and double-click alpha access
• Special characters accessed via function key - 5 dedicated function keys, 5 shifted
• Western-European character support
• 25-key large numeric
• Alpha accessed via function key - 5 dedicated function keys, 5 shifted

Falcon 335 Construction

• Industrial, high-strength polycarbonate/ABS-blend plastic

Environment

Temperature Rating

• Operating 14° to 122° F (-10° to 50° C)
• Storage -4° to 158° F (-20° to 70° C)

Humidity

• 5 to 95% NC

Shock

• Multiple 4-ft. drops to concrete

Water & Dust

• IEC529 rating IP54DW

Optical

Light source

• 650nm Visible Laser Diode (VLD)

Rate

• 39 +3 scans/sec. nominal

Depth of Field (printing resolution, contrast and ambient light dependent; *.* Minimum distance determined by symbol length and scan angle)

Indicators

• Good read
• Scan

Ambient light immunity

• Artificial light: 450 ft-candles (4,844 lux)
• Sunlight: 10,000 ft-candles (107,640 lux)

Falcon 335 Decoding Capability (autodiscriminates between)

• UPC A, E / EAN 8, 13 / JAN 8, 13 (P2 / P5, Code 128 EAN add-ons)
• Code 128
• Code 39
• Code 39 Full ASCII
• Code 93
• Code 11
• Codabar
• ISBN conversion
• Interleaved 2 of 5
• Standard 2 of 5
• Matrix 2 of 5
• MSI / Plessey
• Ames
• Label Codes 4/5

Safety & Regulatory

Electrical: Complies to

• CE

Emissions

• FCC Part 15 - Class A

Laser classification

• CDRH Class II (CAUTION: Laser Radiation, do not stare into beam)
• IEC 60825 Class 2

System

Operating System

• ROM-DOS 6.22

Microprocessor

• 486 Low power, 32-bit microprocessor
• Programmable speeds up to 33 MHz
• Real-time clock

Memory

• Flash: 2MB (DOS, BIOS, applications & data storage)
• RAM: 8MB (for system operation, virtual-disk data storage)

IR Communications Port

• Communication with Falcon® IR dock
• Supports IR portable printers
• IrDA hardware compatible

Dock Communications (to host)

• RS232
• X modem, Z modem
• 16550 UART, up to 57,600 bps

PC Card

• Internal PC Card Type I/II slot

Speaker

• Programmable for volume, duration and pitch

Falcon 335 Power Options

• Rechargeable NiMH battery pack
• Falcon® dock
• Falcon® Battery charger

Advanced Power Management (without PC Card)

• Sleep/off mode with programmable time-out: ~2 mA
• Doze mode: ~50 mA
• Operating mode: ~80 mA (option dependent, CPU speed and application)
• Rechargeable lithium backup battery
• Low battery indicator (display icon)

Radio Support (Falcon 335 )

• Cisco Aironet 350 series
• Lucent (Agere) Orinoco 802.11b
• Proxim RangeLAN2
• Symbol Spectrum24 802.11b

System Support

• VT100/220, HP700/92, IBM 3270 & 5250 emulation via PowerNet Twin Client™
• Simple VT100/220 support via VT-Lite
• Browser support via Falcon® Lynx
• TCP/IP Communications

Falcon 335 Development Environments

• Many standard DOS development tools
• Falcon® Developer´s Toolkit
• Universal Program Generator (UPG)
