Falcon 345 Ideal for:
- Retail In-Store
- Inventory Control
- Warehouse Management
- Outdoor Data Collection
Falcon 345 Features:
- Standard, Long Range and Advanced Long Range integrated laser
scanner options
- Removable handle with trigger
- Batch or Real-time Data Collection
- Powerful 486 Class Processor
- DOS 6.22 Operating System
- Three keypad options
- Supports leading wireless LANs including Cisco Aironet and
Symbol

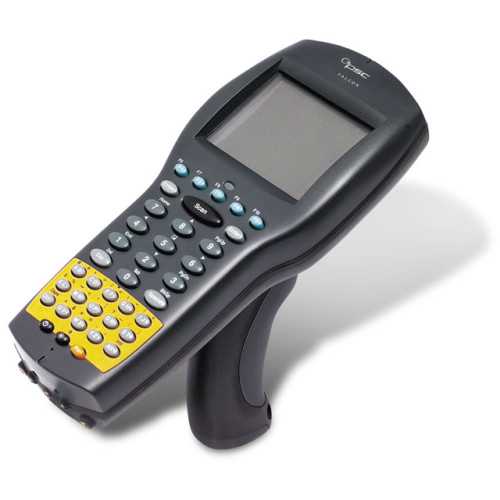

Solving Data Collection Needs The Falcon 345 are the most
feature-rich members of the growing family of Falcon industrial
handheld data collection terminals from PSC. They were designed for
easy integration in the supply chain of companies involved in
logistics, manufacturing, warehousing and distribution, and
in-store retail.
A Favorite Among Users These sleek portable terminals
were ergonomically designed with the end-user in mind. They are the
lightest weight unit in their class, only 16.3 oz./465 g.
Engineered to reduce fatigue, this weight is ideally balanced over
the hand using a removeable form-fit rubber-grip handle. Combine
this with an integrated scan trigger, a large 16-line back-lit
display, three keypad options and the user enjoys hours of high
performance data collection.
No Lack of Performance Here At the heart of the Falcon
345 portable data terminals is a powerful 32 bit 486 class
processor, running at 33MHz, with 8MB of RAM and 2MB of Flash ROM.
This flexible architecture also supports an internal PCMCIA Type II
PC card for additional memory or wireless LAN connectivity. Because
the Falcon 345 use a standard operating system, DOS 6.22, you can
run applications previously developed for other Falcon® terminals
and other DOS terminals. Thin client systems can be instantly
integrated with terminal emulation and text browser support. You
can also use popular PC-based development tools like PSC's
Universal Program Generator (UPG) to create custom applications for
your data collection needs.
Batch and Wireless Models The Falcon 340 with the 486
processor and 8MB of RAM is one of the most powerful batch
terminals on the market today. Fast lookup and validation of your
data is critical to productivity.
The Falcon 345 sets the standard for flexibility when it comes
to wireless communications, providing connectivity for data
collection applications where real-time information is critical.
The Falcon 345 can be configured with any of the leading 2.4GHz
spread spectrum wireless LAN solutions including Cisco Aironet and
Symbol.
Additional flexibility comes when you can have a wireless
connection of the Falcon 345 terminals into your existing legacy
system. With our PowerNet Twin Clientâ„¢ product these Falcon
terminals can support VT100, VT220, HP700/92, IBM 3270 and IBM 5250
terminal emulation, with screen formatter capabilities.
Falcon® 340/345 Specifications
Mechanical
Falcon 345 Dimensions
- Length:7.8 "/19.8 cm
- Width at display: 3.4"/8.6 cm
- Width at grip: 2.5"/6.4 cm
- Height at grip: 1.6"/4.1 cm
Weight (w/battery pack)
- No radio, w/laser: 16.3 oz /465 g
- Radio, w/laser: 17.3 oz /490 g
Display
- Super-twist graphics LCD
- Backlight w/programmable timeout
- 128 x 160 pixels, plus 8 on-screen icons
- Formats 16 x 26, 16 x 20 & 8 lines x 20 Characters
- International support for Japanese and Chinese
Keypad
- 38-key standard alphanumeric
-
- Single and double-click alpha
- 5 dedicated function keys, 5 shifted
- Western-European character support
- 48-key full alphanumeric
-
- Single stroke access to full alphabet
- Function key support via functions and numbers
- 25-key large numeric
-
- Alpha accessed via function key
- 5 dedicated function keys, 5 shifted
Falcon 345 Construction
- Industrial, high-strength polycarbonate/ABS-blend plastic
Environmental
Temperature rating
- Operating: -4° to 122° F /-20° to 50° C
- Storage: -22° to 158° F /-30° to 70° C
Humidity
Shock
- multiple 4.0' / 1.2 m drops to concrete
Optical
Light source
- Visible Laser Diode (VLD): 650nm
Scan rate
Depth-of-Field Chart (printing resolution, contrast, and
ambient light dependent; *Minimum distance determined by symbol
length and scan angle)
Label Density
|
Standard Range
|
Long Range
|
Advanced Long Range
|
5 mil
|
3.0"–5.0" 8.0 –13.0 cm
|
|
|
7.5 mil
|
2.5"–9.0" 6.0–23.0 cm
|
|
|
10 mil
|
2.5–13.0" 6.0–33.0 cm
|
9.0"–22.0" 23.0–56.0 cm
|
|
13 mil
|
|
|
19.0"–29.0" 48.0–74.0 cm
|
15 mil
|
2.5"–19.0" 6.0–48.0 cm
|
7.0"–38.0" 18.0–96.0 cm
|
20.0"–50.0" 51.0–127.0 cm
|
20 mil
|
*2.5"–21.0" 6.0–53.0 cm
|
7.0"–45.0" 18.0–114.0 cm
|
|
30 mil
|
|
|
33.0"–98.0" 84.0–249.0 cm
|
40 mil
|
*2.5"–30.0" 6.0–76.0 cm
|
10.0"–90.0" 25.0–229.0 cm
|
|
55 mil
|
*2.5"–36.0" 6.0–91.0 cm
|
10.0"–100.0" 25.0–250.0 cm
|
27.0"–115.0" 69.0–292.0 cm
|
70 mil
|
(Reflective)
|
60.0"–180.0" 152.0–457.0 cm
|
114.0"–250.0" 290.0–635.0 cm
|
100 mil
|
(Reflective)
|
62.0"–240.0" 157.0–610.0 cm
|
125.0"–360.0" 318.0–914.0 cm
|
|
Falcon 345 Indicators
Ambient light immunity
- Artificial light: 450 ft-candles /4,844 lux
- Sunlight: 8,000 ft-candles /86,112 lux
Decoding Capability (autodiscriminates between)
- UPC A, E /EAN 8, 13 /JAN 8, 13 (P2 /P5, Code 128 EAN
add-ons)
- Code 128
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 11
- Codabar
- ISBN conversion
- Interleaved 2 of 5
- Standard 2 of 5
- Matrix 2 of 5
- MSI /Plessey
- Ames
- Label Codes 4/5
Safety and Regulatory
Electrical
Emissions
Falcon 345 Laser classification
- CDRH Class II; (CAUTION:Laser Radiation –do not stare into
beam)
- IEC 60825 Class 2
System
Operating System
Microprocessor
- 486 Low Power, 32-bit microprocessor
- Programmable speeds up to 33 MHz
- Real-time clock
Memory
- Flash: 2MB (DOS, BIOS, applications and data storage)
- RAM: 8MB (for system operation, virtual-disk data storage)
IR Communications Port
- Communication with Falcon IR dock
- Supports IR portable printer
- IrDA compatible
Dock Communications
- RS232
- X modem
- Z modem
- 16550 UART, up to 57,600 bps
PC Card
- Internal PC Card Type I/II slot
Speaker
- Programmable for volume, duration and pitch
- 84 dB @ 24"
Falcon 345 Power Options
- Rechargeable NiCd & NiMH battery packs
- Falcon® dock
- Falcon® battery charger
Advanced Power Management (without PC Card)
- Sleep/off mode with programmable timeout: ~2 mA
- Doze mode: ~50 mA
- Operating mode: ~80 mA (option dependent, CPU speed and
application)
- Rechargeable lithium backup battery
- Low battery indicator (display icon)
System Support
- VT100/220, HP700/92, IBM 3270 & 5250 emulation via PowerNet
Twin Clientâ„¢
- Simple VT100/220 support via VT-Lite
- Browser support via Falcon® Lynx
- wireless software distribution via FAST Update
- TCP/IP Communications
Development Environments
- Many standard development tools
- Falcon® Developer´s Toolkit
- Universal Program Generator (UPG)
- RFBuilderâ„¢
- Wavelink®
Falcon 345 Radio Support (Falcon® 345 w/Internal
Antenna)
- Cisco Aironet 350 Series
- Symbol Spectrum24®
