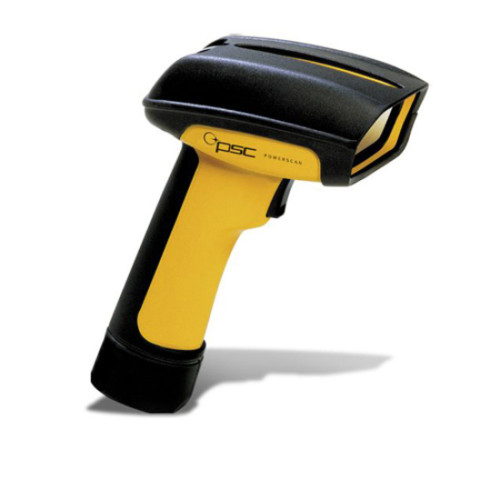

Datalogic PowerScan Barcode Scanner
Part #: 0611001-101001-000 | SKU: DAT23131

The PowerScan family of Handheld Laser Barcode Scanners has been specifically designed from the ground up to meet the demands of industrial users. In this tough environment the right tool makes all the difference. With a PowerScan Scanner on the job you'll have one of the toughest most reliable tools around. You can rely on the PowerScan Scanner for fast accurate barcode reading from up close to over 65 (165cm) away. Even labels previously thought to be unreadable can now be read using PSC's new superior decoding software QuadraLogic. The Scanner will auto-discriminate all standard barcode symbologies and automatically adjust to read a wide range of code densities. The PowerScan Scanner also has a broad range of communication options using unique multi-interface modules which allow for connection to most host computer systems. Our AutoSelect feature allows you to quickly move between different hosts and applications by simply changing cables. Finally PowerScan's low current draw combined with its low power mode make it ideal for use with battery operated terminals.

Datalogic PowerScan Barcode Scanner

Part Details: Standard range, CSG, RS-232 /KBW/W.E.REQ CABLE & PS, Black

Need a different version of the Datalogic PowerScan Barcode Scanner? View all 18 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	PowerScan
Scanner Capability	1D

DataLogic PowerScan Specs (pdf)

Technical Information

Scan Rate: 37 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- EAN-128
- Code 39
- Interleaved 2 of 5
- Standard 2 of 5
- MSI/PLESSEY
- BC 412
- Codabar
- Pharmacode 39
- Code 39 Full ASCII
- Code 128
- Code 93
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- EAN-128
- Code 39
- Interleaved 2 of 5
- Standard 2 of 5
- MSI/PLESSEY
- BC 412
- Codabar
- Pharmacode 39
- Code 39 Full ASCII
- Code 128
- Code 93
Maximum Scan Resolution: 5 mil
Depth of Field:
- 3" - 6"@5 mil
- 2" - 10"@7.50 mil
- 1" - 16"@10 mil
- 0.50" - 27"@15 mil
- 0.50" - 36"@20 mil
- 5" - 48"@40 mil
- 6" - 60"@55 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Name: PowerScan SR Barcode Reader
Product Line: PowerScan

Physical Characteristics

Color: Black
Weight (Approximate): 10.50 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- Electrical:
- Gost R
- TÜV
- UL
- cUL
- Emissions:
- FCC-A
- EN 55022-B
- BCIQ CNS13438
- AS/NZS 3548
- VCCI-B
- Laser classification:
- CDRH Class II
- IEC 60825 Class 2
- Restriction of Hazardous Substances:
- RoHS
Additional Information:
- Supported Interfaces:
- Keyboard WedgeSerialWand Emulation

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 14 V DC

Extended Details
