Datalogic Barcode Readers and Hand Held Computer

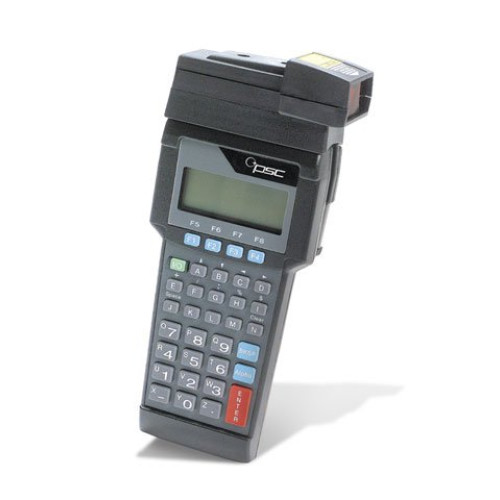

Datalogic Topgun Mobile Computer
Part #: 42-000-TG | SKU: DAT2711

Topgun consists of a PSC PT 2000 Portable Data Collection Terminal integrated with a TopGun Laser Module. Weighing 16 ounces (including three AA batteries) Topgun is lightweight and easy to use. It operates like any other handheld laser -- just aim it and pull the trigger. Topgun comes fully programmed ready to scan. Using PSC Program Generator (PPG) a Microsoft Windows-Based application program generator you can create custom programs for Topgun in minutes! Topgun is a cost-effective laser scanning solution. It provides the convenience of one-handed portable scanning combined with the speed and accuracy of laser input. Add the PT Dock for data transfer and battery recharging and you have the answer to all your portable needs.

Datalogic Topgun Mobile Computer

Part Details: TopGun Portable Batch Terminal (128KB RAM, Integrated Laser and 00-884-28 Cable)

Need a different version of the Datalogic Topgun Mobile Computer? View all 5 configurations

Additional Information

Data Collection Type	Batch
Display Resolution	96 x 48
Drop Rating	4 ft/1.2 m
Manufacturer	Datalogic
Model Name	Topgun
Operating System	Proprietary
Product Condition	New
RAM Memory	128 KB
Scanner Type	Laser

Datalogic Topgun Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Batch
Light Source: Laser
Drop Specification: 48" To Concrete
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-13
- JAN-8
- Code 128
- Code 39
- Code 93
- Code 39 Full ASCII
- Codabar
- Interleaved 2 of 5

General Information

Product Type: Handheld Terminal
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Name: Falcon TopGun Portable Data Terminal
Product Line: Falcon

Physical Characteristics

Width: 4"
Depth: 1.8"
Length: 9"
Weight (Approximate): 16 oz

Other

Package Contents:
- Falcon TopGun Portable Data Terminal
- Alkaline Batteries
- PAL Software
- 9-Pin Serial Cable<
- Falcon TopGun Portable Data Terminal
- Alkaline Batteries
- PAL Software
- 9-Pin Serial Cable<
Certifications & Standards:
- Electrical:
- Complies to CE
- Emissions:
- FCC Part 15 -Class A
- Laser:
- CDRH Class 2
- IEC Laser Class 2
Additional Information:
- 16-bit proprietary operating system
- 16-bit CMOS Microprocessor
- Four programmable function keys

Display & Graphics

Display Screen Type: LCD
Number of Lines: 4
Number of Characters: 16

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 34

Memory

Flash Memory: 128 KB
Standard Memory: 128 KB

Software

Operating System: Proprietary OS

Warranty

Limited Warranty: 1 Year

Extended Details
