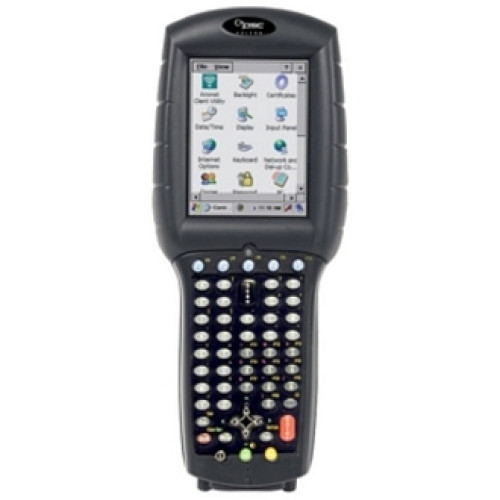

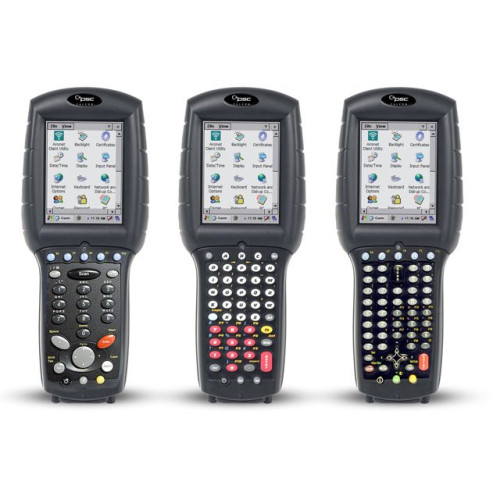

Datalogic Falcon 4420 Mobile Computer Datalogic Falcon 4420 Mobile Computer Datalogic Falcon 4420 Mobile Computer

Datalogic Falcon 4420 Mobile Computer
Part #: 4423-11221 | SKU: DAT20402

The Falcon 4420 features the Intel XScale PXA255 400MHz processor and the Microsoft Windows CE.NET or Windows Mobile operating systems, providing you with the power and flexibility to deploy sophisticated mobile applications in your enterprise. The Intel XScale processor provides you with the highest performing mobile processor available today along with advanced power management capabilities for extended battery life.

Datalogic Falcon 4420 Mobile Computer

Part Details: Datalogic Falcon 4423 Mobile Computer - Intel XScale 400 MHz - 64 MB RAM - 64 MB Flash - 3.5" LCD - 52 Keys - Alphanumeric Keyboard - Wireless LAN
Need a different version of the Datalogic Falcon 4420 Mobile Computer? View all 11 configurations

Additional Information

Display Resolution 240 x 320
IP Rating IP54
Manufacturer AIDC DataLogic
Model Name Falcon 4420
Operating System Windows CE
RAM Memory 64 MB
Scanner Type Laser
Style Gun
DataLogic Falcon 4420 Specs DataLogic Falcon 4420 Specs (pdf)

Technical Information

  • Operating System: Windows CE .NET 4.2
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • EAP-TLS
    • PEAP
    • WPA Home (PSK)
    • WEP 40 bit
    • WEP 64 bit
    • WEP 128 bit
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Codabar
    • Code 32
    • Code 39
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • Code 128 Extensions
    • EAN-128
    • EAN/JAN-8
    • EAN/JAN-13
    • EAN-UCC Composite
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI/PLESSEY
    • RSS-14
    • RSS-Limited
    • Standard 2 of 5
    • UPC-A
    • UPC-E
    • UPC/EAN 2 Digit Extensions
    • UPC/EAN 5 Digit Extensions

General Information

  • Manufacturer: PSC Inc.
  • Product Line: Falcon
  • Product Name: Falcon 4423 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: PC Card Type I/II
  • Keyboard: 52 Key Full Alphanumeric Integrated
  • Battery Capacity: 2000 mAh
  • Battery Type: Lithium Ion
  • Dimensions: 1.6" (41mm) x 3.5" (89mm) x 9" (229mm)

Environmental Conditions

  • Environmental Sealing: IP54DW
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Drop Spec: 5' To Concrete Multiple

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Frequency Band/Bandwidth: 2.4GHz

Other

  • Additional Information: Communication Ports: USB 1.1 RS-232
  • Package Contents: Falcon 4423 Mobile Computer Battery Tethered Stylus Falcon Desktop Utility Software Falcon Management Utility Software

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Agency Approvals

  • Agency Approvals: Electrical: EN60950 UL60950 CSA60950 Battery: IATA/UN Emissions: FCC Part 15C EN55022 VCCI ICES-003 CNS 13438 AS/NZS 3548 Radio: FCC Part 15:247 EN 300 328 Laser Classification: CDRH Class II IEC 60825-1 Class 3R

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
