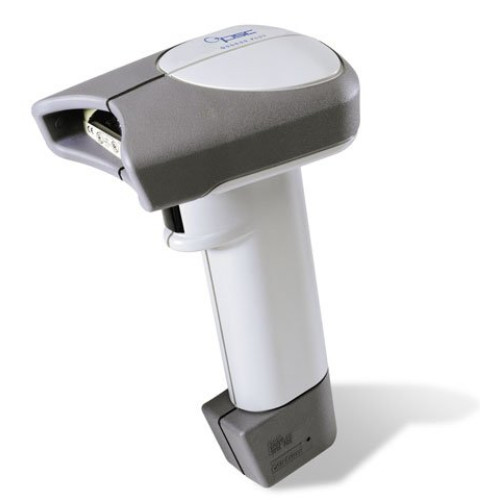

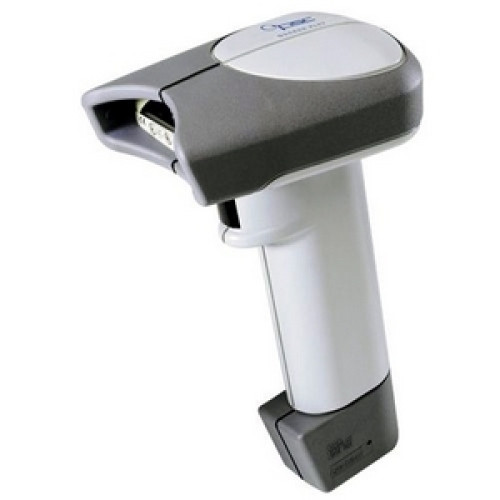

Datalogic QS6000 Plus Barcode Scanner
Part #: 669015-001001-0203 | SKU: DAT30051

The QS6000 Plus Handheld Scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class the QS6000 Plus speeds retail checkout. And its 13 (33 cm) depth of field with 100% UPC labels extends the user's working range. Support for all popular POS interfaces and keyboard wedges is standard. The QS6000 Plus reads all major barcode symbologies auto-discriminating between codes. Full support is also included for the UPC-EAN family add-ons and other types of code extensions.

Datalogic QS6000 Plus Barcode Scanner

Part Details: Datalogic QuickScan QS6000 Plus Bar Code Reader - Wired

Need a different version of the Datalogic QS6000 Plus Barcode Scanner? View all 13 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	QS6000 Plus
Scanner Capability	1D
Scanner Type	Laser

DataLogic QS6000 Plus Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 5 mil(s)
Symbologies Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-8
- EAN-13
- EAN-128
- IATA
- Interleaved 2 of 5
- JAN-8
- JAN-13
- MSI/PLESSEY
- Pharmacode 39
- Standard 2 of 5
- UPC-A
- UPC-E
- UPC/EAN 5 Digit Add-on
- UPC/EAN 2 Digit Add-on
Scanner Type: Laser
Scan Rate: 42 Scans/Sec
Interface Options:
- Keyboard Wedge
- RS-232
Interface Connectivity: Corded
Depth of Field:
- 1 - 3"@5mils
- 0.5 - 6"@7.5mils
- 0 - 9"@10mils
- 0 - 13"@13mils
- 20"@20mils

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: QuickScan
Product Name: QuickScan QS6000 Plus Barcode Scanner

Physical Characteristics

Weight: 6.5 oz

Agency Approvals

Agency Approvals:
- Gost R
- TUV
- UL
- cUL
- FCC-A EN 55022-B
- BCIQ CNS 13438
- AS/NZS 3548
- VCCI-B
- CDRH Class IIa
- IEC 60825 Class 1
- IEC 60825 Class 2
- FCC-A EN 55022-B

Other

Package Contents:
- QS6000 Plus Barcode Scanner
- Cable
Cables Included: Keyboard Wedge

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)
