Newer Version Is Available

Lynx PDA, 802.11 b/g/n, Bluetooth v2.0, Standard Laser, Windows Embedded Handheld 6.5, 256 MB RAM / 512 MB Flash, 46 key QWERTY.
$1,160.00 $670.84
Ships In 3-5 Days
- +

Product was successfully added to your shopping cart.
87007 Datalogic

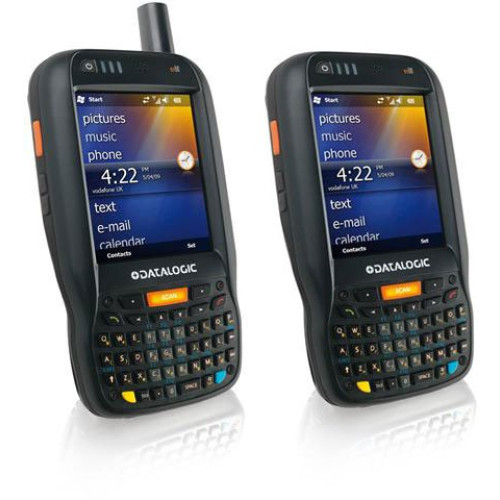

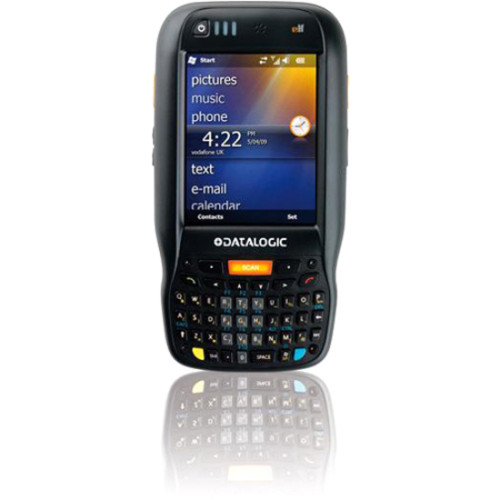

944301008 - Datalogic Elf Handheld Computer

Elf, Wi-Fi (802.11a/b/g), 1D Laser Scanner with Green Spot, Windows Mobile 6.5, 256MB/256MB, Bluetooth, 46 key QWERTY Keypad. Interface cables and charging cradle sold separately.
InStock
Free Shipping

Description

Capitalizing on Datalogic's legendary ergonomics, the Elf PDA packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Both a 1D laser scanner and 2D bar code imager enable a wide array of bar codes seen across diverse enterprises. Both have Datalogic’s patented 'Green Spot' good-read technology to improve user efficiency.
  • Ergonomic, compact and robust
  • Windows Embedded Handheld 6.5 or CE 6.0
  • Assisted GPS (A-GPS) with Skyhook\"s Core Engine hybrid positioning system for location based applications and directions (WEHH 6.5 only)
  • UMTS HSDPA mobile radio for voice and data communication (WEHH 6.5 only)
  • Summit embedded 802.11a/b/g radio for enterprise-class mobile connectivity with CCX V4 certification
  • Bluetooth wireless Communications 2.0 EDR for simultaneous connections with lower power consumption
  • High performance Laser or Wide aspect 2D imager with Datalogic\"s patented Green Spot for good read confirmation
  • Accelerometer to auto-rotate display (WEHH 6.5 only)
  • 3 Megapixel autofocus Camera with Flash (WEHH 6.5 only)
  • 256 MB RAM/256 MB Flash memory
  • XScale PXA 310 @ 624 MHz processor
  • User-accessible micro SD memory slot (SDHC)
  • Ruggedized with 5.0 ft. drop to concrete resistance and IP64 protection class
  • Wavelink Avalanche device management

Additional Information

RAM Memory 256 MB
Operating System Windows Mobile 6.5
Style Phone-size
Network Connectivity 802.11a/b/g
Scanner Type Laser
Data Collection Type Wireless
Manufacturer Datalogic

Recommended Accessories

Recommended Warranties

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • GS1 Databar
    • EAN/UPC
    • Code 39
    • 2/5 Codes
    • Plessey
    • Codabar
    • Code 128
    • EAN128
    • MSI
    • Code 93
    • Code 11

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 944301008
  • Product Name: elf 944301008 Handheld Terminal
  • Product Line: elf

Other

  • Package Contents:
    • elf 944301008 Handheld Terminal
    • Battery
    • elf 944301008 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • Environmental Sealing: IP64
    • CE
    • TUV

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security: CCX v4

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3.5"
  • Display Color: Color

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 46
  • Keyboard Layout: QWERTY

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5
