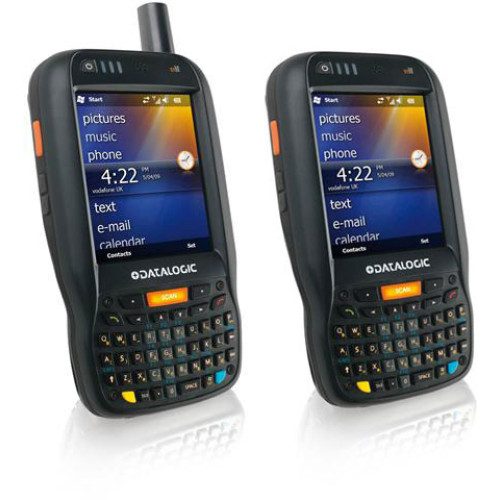

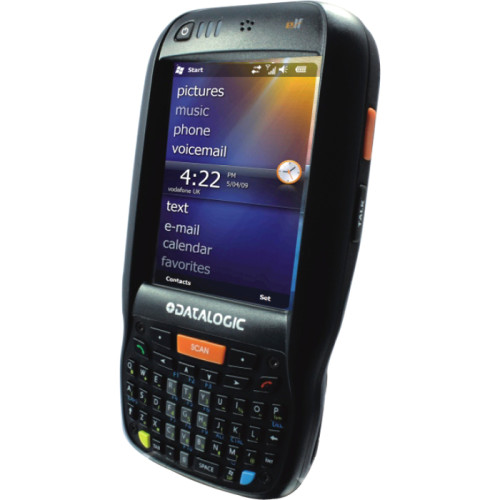

Datalogic Elf Mobile Computer
Part #: 944301015 | SKU: DAT140578

Capitalizing on Datalogic's legendary ergonomics, the Elf PDA packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Both a 1D laser scanner and 2D bar code imager enable a wide array of bar codes seen across diverse enterprises. Both have Datalogic’s patented 'Green Spot' good-read technology to improve user efficiency.

Datalogic Elf Mobile Computer

Part Details: Elf, BT2.0, 802.11, STD LSR GREEN SPOT, Windows CE6.0,256MB, 27 key NUM

Additional Information

Manufacturer Datalogic
Model Name Elf

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Air Discharge
    • +/-4 kV DC Contact Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • 1D:
    • GS1 Databar
    • EAN/UPC
    • Code 39
    • 2/5 Codes
    • Plessey
    • Codabar
    • Code 128
    • EAN128
    • MSI
    • Code 93
    • Code 11

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 944301015
  • Product Name: elf Handheld Terminal
  • Product Line: elf

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 1.7"
  • Weight (Approximate): 14.64 oz

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Numeric

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

RFID

  • Maximum Operating Frequency: 13.56 MHz
Extended Details

Recommended Accessories for Model: Datalogic Elf Mobile Computer

  • Datalogic Elf Spare Parts
    Part #: 94ACC1379 | SKU: DAT87004

    Holster (Includes Belt Clip) for the Elf
    MSRP: $33.00 Price: $29.52
    In Stock
  • Datalogic Elf Power Device
    Part #: 94ACC1381 | SKU: DAT102470

    Power supply for single slot dock, regional plugs included
    MSRP: $59.00 Price: $45.31
  • Datalogic Elf Spare Parts
    Part #: 94ACC1372 | SKU: DAT100559

    Datalogic 94ACC1372 Single Slot PDA Cradle - Wired - PDA - Charging Capability - Proprietary Interface
  • Datalogic Elf Spare Parts
    Part #: 94ACC1382 | SKU: DAT100561

    Datalogic 94ACC1382 Guitar Style Stylus with Cord - 5 Pack
  • Datalogic Elf Accessory
    Part #: 94A151130 | SKU: DAT100556

    Datalogic 94A151130 Powered Mobile Dock - Wired - PDA - Charging Capability
