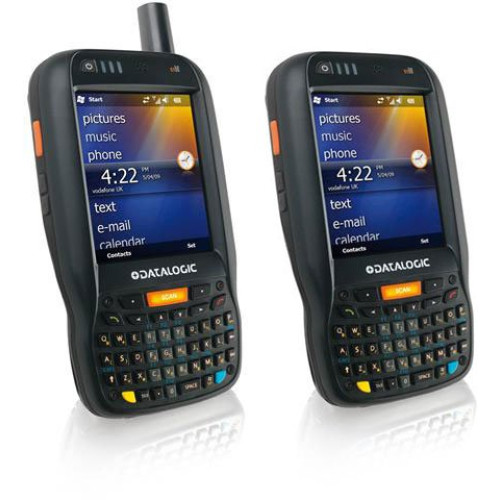

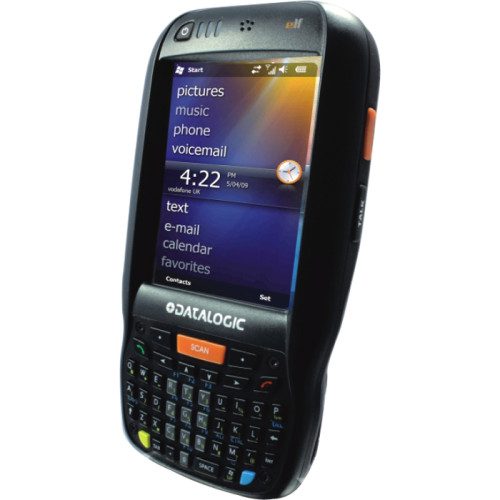

944301016 - Datalogic Elf Handheld Computer

Elf, Wi-Fi (802.11a/b/g), Bluetooth 2.0, Standard Laser Scanner with Green Spot Technology, Windows CE 6.0, 256MB RAM/256MB Flash, 46 key QWERTY Keypad. Interface cables and charging cradle sold separately.
InStock
Free Shipping

Description

Capitalizing on Datalogic's legendary ergonomics, the Elf PDA packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Both a 1D laser scanner and 2D bar code imager enable a wide array of bar codes seen across diverse enterprises. Both have Datalogic’s patented 'Green Spot' good-read technology to improve user efficiency.
  • Ergonomic, compact and robust
  • Windows Embedded Handheld 6.5 or CE 6.0
  • Assisted GPS (A-GPS) with Skyhook\"s Core Engine hybrid positioning system for location based applications and directions (WEHH 6.5 only)
  • UMTS HSDPA mobile radio for voice and data communication (WEHH 6.5 only)
  • Summit embedded 802.11a/b/g radio for enterprise-class mobile connectivity with CCX V4 certification
  • Bluetooth wireless Communications 2.0 EDR for simultaneous connections with lower power consumption
  • High performance Laser or Wide aspect 2D imager with Datalogic\"s patented Green Spot for good read confirmation
  • Accelerometer to auto-rotate display (WEHH 6.5 only)
  • 3 Megapixel autofocus Camera with Flash (WEHH 6.5 only)
  • 256 MB RAM/256 MB Flash memory
  • XScale PXA 310 @ 624 MHz processor
  • User-accessible micro SD memory slot (SDHC)
  • Ruggedized with 5.0 ft. drop to concrete resistance and IP64 protection class
  • Wavelink Avalanche device management

Additional Information

RAM Memory 256 MB
Operating System Windows CE 6.0
Style Phone-size
Network Connectivity 802.11a/b/g/n
Scanner Type Laser
Data Collection Type Wireless
Item Condition New
Manufacturer Datalogic

Recommended Accessories

Elf PDA Accessories, Modem Module (for the Elf Dock-Single)
$265.00 $210.36
Ships In 3-5 Days
Free Shipping
- +
Holster (Includes Belt Clip) for the Elf
$27.00 $25.97
Ships Today
Free Shipping
- +
Stylus (5-Pack, Guitar Style with Cord) for the Elf PDA
$27.00 $25.97
Ships In 3-5 Days
Free Shipping
- +
Dock (Powered Mobile with Loudspeaker) for the Elf PDA
$405.00 $255.62
Ships In 3-5 Days
Free Shipping
- +
Elf PDA Accessories, Pistol Handle (Can be Added in the Field) for the Elf PDA
$169.00 $133.22
Ships Today
Free Shipping
- +

Recommended Warranties

Service Contract - 3 year, Single Dock, Ease of Care 2 Days Comprehensive
$65.00
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 5 year, Elf, Ease of Care 2 Days Comprehensive
$624.00
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 3 year, Elf, Ease of Care 5 Days
$241.00
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 3 year, Elf, Ease of Care 2 Days Comprehensive
$371.00
Ships In 3-5 Days
Free Shipping
- +
Service Contract - 5 year, Elf, Ease of Care 5 Days
$403.00
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-4 kV DC Contact Discharge
    • +/-8 kV DC Air Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • 1D:
    • GS1 Databar
    • EAN/UPC
    • Code 39
    • 2/5 Codes
    • Plessey
    • Codabar
    • Code 128
    • EAN128
    • MSI
    • Code 93
    • Code 11

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 944301016
  • Product Name: elf Handheld Terminal
  • Product Line: elf

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 1.7"
  • Weight (Approximate): 14.64 oz

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

RFID

  • Maximum Operating Frequency: 13.56 MHz

Keyboard/Keypad

  • Keyboard Layout: QWERTY
