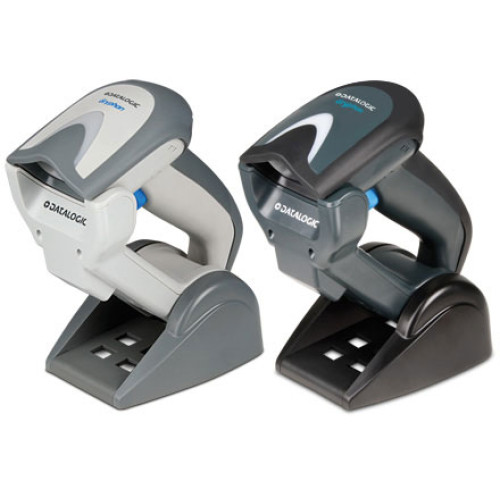

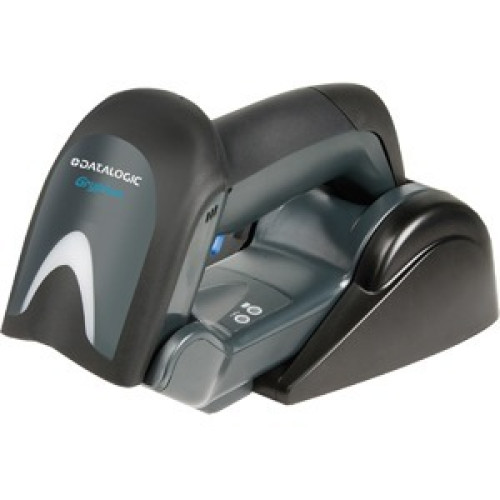

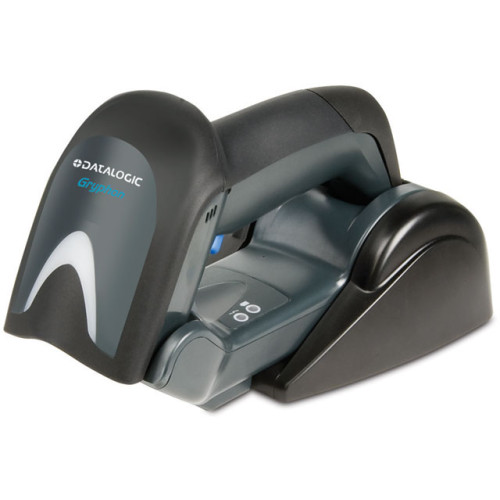

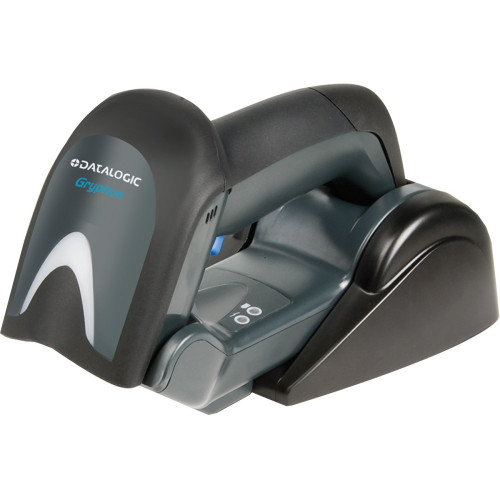

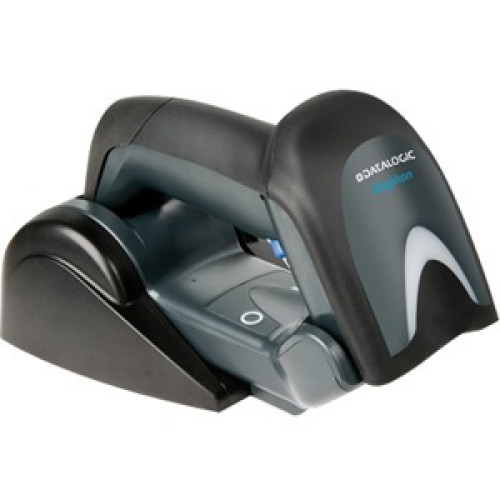

Datalogic Gryphon I GBT4100 Barcode Scanner
Part #: GBT4130-BK-BTK1 | SKU: DAT104515

The Datalogic Gryphon I GBT4100 reader's batch mode capability allows more than 1200 barcodes to be stored in the memory. Combined with a 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility and reliable data collection when out-of-range. Datalogic's exclusive patented 'Green Spot' for good-read feedback helps to improve productivity in noisy environments or in situations where silence is required. When using the Gryphon I GBT4100 with the cradle at a 45 position, the Green Spot can work as an aiming system to aid in positioning the bar code for quick and intuitive reading. Standard multi-interface capabilities include USB, RS-232, Keyboard Wedge and Wand Emulation for the GBT4130 models. IBM interface models include IBM 46XX, USB and RS-232 Emulation for the GBT4110 models. The Datalogic Aladdin configurator provides user-friendly features that simplify the start-up procedure.

Datalogic Gryphon I GBT4100 Barcode Scanner

Part Details: USB Kit - Cordless - 1D Linear Imager - Charging and Communication cradle - USB cable - Color: Black

Additional Information

Color Black
Connectivity Cordless
Form Factor Handheld
Included Cables USB
Interface Options USB
Manufacturer AIDC DataLogic
Model Name Gryphon I GBT4100
Scanner Capability 1D
Scanner Type Imager

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 325 scan/s
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2.30" - 7"@5 mil
    • 1.40" - 11.70"@7.50 mil
    • 0.80" - 17.70"@10 mil
    • 1.20" - 23.40"@13 mil
    • 1.20" - 31.20"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 4100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 4130
  • Product Name: Gryphon 4130 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 7.94 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
  • Package Contents:
    • Gryphon 4130 Handheld Barcode Reader
    • Base/Charger
    • Power Supply
    • Cable
    • Gryphon 4130 Handheld Barcode Reader
    • Base/Charger
    • Power Supply
    • Cable

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
Extended Details
