GD4130-BK - Datalogic Gryphon I GD4100 Series: GD4130 Bar code Scanner

Datalogic Barcode Readers and Hand Held Computer

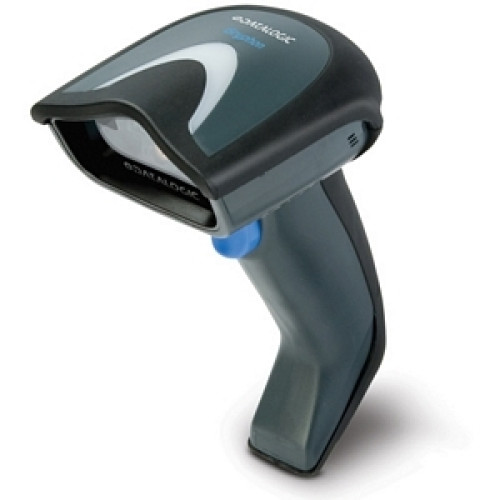

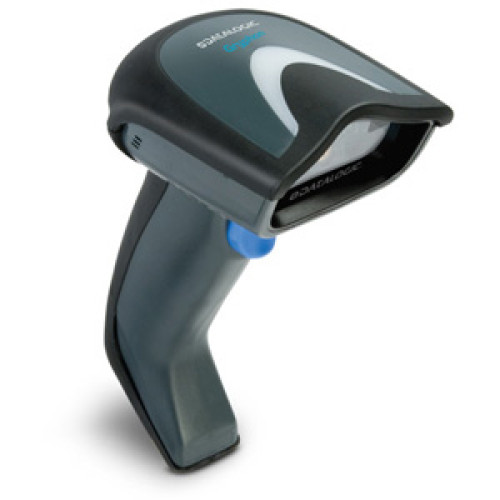

Datalogic Gryphon I GD4100 Barcode Scanner Part # GD4130-BK

The Datalogic Gryphon I GD4100 Series: GD4130 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I GD4100 Series: GD4130 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.

GD4130-BK - Datalogic Gryphon I GD4100 Series: GD4130 Bar code Scanner

Part Details: SCANNER ONLY. Linear Imager, USB/RS-232/KBW/Wand Emulation interfaces. Color: Black. Cables and accessories must be purchased separately. For the full kit purchase (Part# GD4130-BKK1).

New

Need a different version of the Datalogic Gryphon I GD4100 Scanner? View all 10 configurations

Additional Information

Color	Black
Connection	USB
Connectivity	Corded
Form Factor	Handheld
Included Cables	USB
Manufacturer	Datalogic
Model Name	Gryphon I GD4100
Product Condition	New
Ruggedness	General Purpose
Scan Pattern	LED Beam
Scanner Capability	1D
Scanner Type	Imager

Datalogic Gryphon I GD4100 Specs (pdf)

Decoding Capability

1D / Linear codes
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional

Electrical

Current
- Operating (Typical)
  - GD4110
    225 mA @ 5 VDC
  - GD4130
    245 mA @ 5 VDC
- Standby/Idle (Typical)
  - 120 mA @ 5 VDC
Input Voltage
- GD4110
  4.5 - 14.0 VDC
- GD4130
  4.75 - 5.25 VDC

Environmental

Ambient Light
- 0 - 100,000 lux
Drop Resistance
- Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
ESD Protection (Air Discharge)
- 16 kV
Humidity (Non-Condensing)
- 0 - 90%
Particulate and Water Sealing
- IP42
Temperature
- Operating
  - 0 to 55 ?C / 32 to 131 ?F
- Storage/Transport
  - -20 to 70 ?C / -4 to 158 ?F

Interfaces

RS-232 / IBM 46XX / USB Multi-Interface
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface

Physical Characteristics

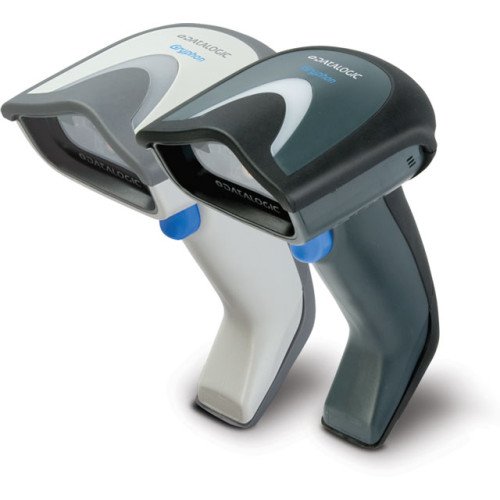

Colors Available
- Black
- White
Dimensions
- 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Weight
- 169.0 g / 6.0 oz

Reading Performance

Imager Sensor
- CCD Solid-State
Light Source
- Illumination
  - Dual LED Array 630 - 670 nm
Print Contrast Ratio (Minimum)
- 15%
Read Rate (Maximum)
- 325 reads/sec.
Reading Angle
- Pitch
  - 65?
- Roll (Tilt)
  - 35?
- Skew (Yaw)
  - 65?
Reading Indicators
- Beeper (Adjustable Tone and Volume)
- Datalogic 'Green Spot' Good Read Feedback
- Good Read LED
Resolution (Maximum)
- 0.076 mm / 3 mils

Reading Ranges - Typical Depth of Field

Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
5 mils
- 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils
- 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils
- 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils
- 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils
- 3.0 to 80.0 cm / 1.2 to 31.2 in

Safety & Regulatory

Agency Approvals
- The product meets necessary safety and regulatory approvals for its intended use.
- The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance
- Complies to China RoHS
- Complies to EU RoHS
LED Classification
- IEC 60825-1 Class 1 LED Product

Utilities

Datalogic Aladdin
- Datalogic Aladdin configuration program is available for download at no charge
OPOS / JavaPOS
- JavaPOS Utilities are available for download at no charge
- OPOS Utilities are available for download at no charge
Remote Host Download
- Lowers service costs and improves operations
  - GD4110

Warranty

5-Year Factory Warranty
