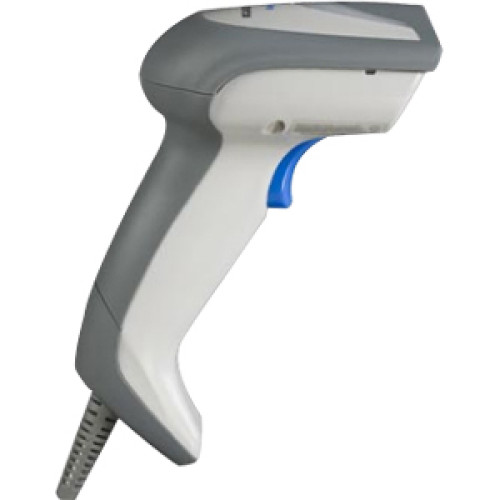

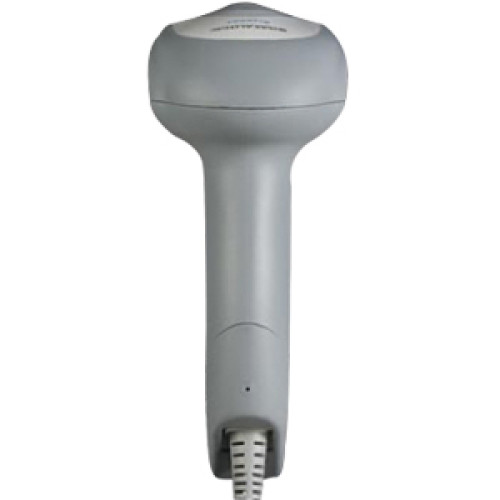

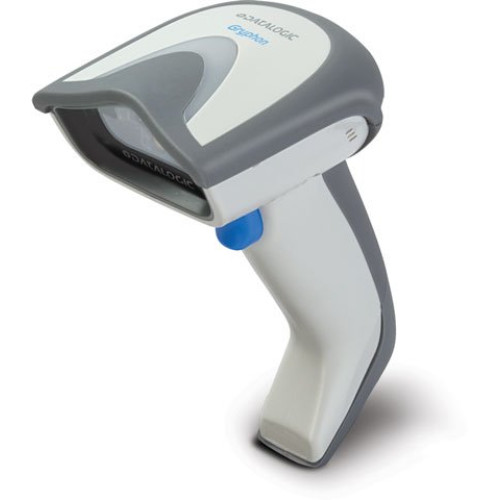

Datalogic Gryphon I GD4100 Barcode Scanner Part # GD4130-WH

The Datalogic Gryphon I GD4100 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I GD4100 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.

GD4130-WH - Datalogic Gryphon I GD4100 Series: GD4110 Bar code Scanner

Part Details: Datalogic Gryphon GD4130 Bar Code Reader - Wired - CCD
New

Additional Information

Color White
Included Cables USB
Manufacturer Datalogic
Model Name Gryphon I GD4100
Product Condition New
Scanner Capability 1D
Scanner Type Imager
Decoding Capability
  • 1D / Linear codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
  • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
Electrical
  • Current
    • Operating (Typical)
      • GD4110
        225 mA @ 5 VDC
      • GD4130
        245 mA @ 5 VDC
    • Standby/Idle (Typical)
      • 120 mA @ 5 VDC
  • Input Voltage
    • GD4110
      4.5 - 14.0 VDC
    • GD4130
      4.75 - 5.25 VDC
Environmental
  • Ambient Light
    • 0 - 100,000 lux
  • Drop Resistance
    • Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
  • ESD Protection (Air Discharge)
    • 16 kV
  • Humidity (Non-Condensing)
    • 0 - 90%
  • Particulate and Water Sealing
    • IP42
  • Temperature
    • Operating
      • 0 to 55 ?C / 32 to 131 ?F
    • Storage/Transport
      • -20 to 70 ?C / -4 to 158 ?F
Interfaces
  • RS-232 / IBM 46XX / USB Multi-Interface
  • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Physical Characteristics
  • Colors Available
    • Black
    • White
  • Dimensions
    • 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
  • Weight
    • 169.0 g / 6.0 oz
Reading Performance
  • Imager Sensor
    • CCD Solid-State
  • Light Source
    • Illumination
      • Dual LED Array 630 - 670 nm
  • Print Contrast Ratio (Minimum)
    • 15%
  • Read Rate (Maximum)
    • 325 reads/sec.
  • Reading Angle
    • Pitch
      • 65?
    • Roll (Tilt)
      • 35?
    • Skew (Yaw)
      • 65?
  • Reading Indicators
    • Beeper (Adjustable Tone and Volume)
    • Datalogic 'Green Spot' Good Read Feedback
    • Good Read LED
  • Resolution (Maximum)
    • 0.076 mm / 3 mils
Reading Ranges - Typical Depth of Field
  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.
  • 5 mils
    • 6.0 to 18.0 cm / 2.3 to 7.0 in
  • 7.5 mils
    • 3.5 to 30.0 cm / 1.4 to 11.7 in
  • 10 mils
    • 2.0 to 45.0 cm / 0.8 to 17.7 in
  • 13 mils
    • 3.0 to 60.0 cm / 1.2 to 23.4 in
  • 20 mils
    • 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.
    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance
    • Complies to China RoHS
    • Complies to EU RoHS
  • LED Classification
    • IEC 60825-1 Class 1 LED Product
Utilities
  • Datalogic Aladdin
    • Datalogic Aladdin configuration program is available for download at no charge
  • OPOS / JavaPOS
    • JavaPOS Utilities are available for download at no charge
    • OPOS Utilities are available for download at no charge
  • Remote Host Download
    • Lowers service costs and improves operations
      • GD4110
Warranty
  • 5-Year Factory Warranty
