117165 Datalogic

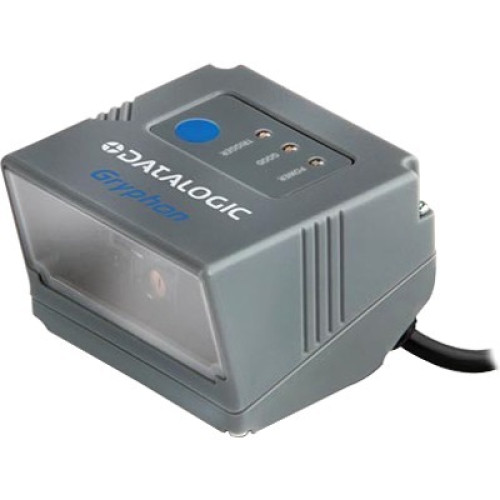

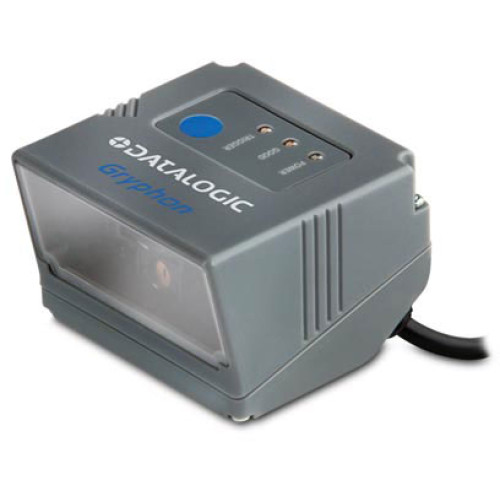

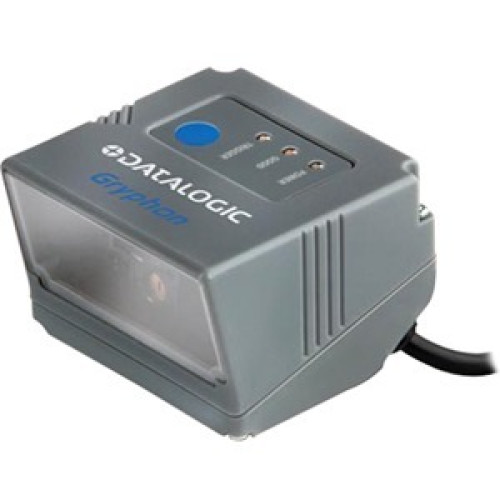

Datalogic Gryphon GFS4100 Industrial Bar code Scanner Part # GFS4170

The Datalogic Gryphon GFS4100 reader is a state-of-the-art linear imager. It is capable of reading high resolution bar codes up 3 mils. It has outstanding performance on poorly printed or damaged bar codes and a long reading range compared to other scanners in its class. On standard EAN13 or UPC 13 mil bar codes, the Gryphon GFS4100 scanner reads from 3.0 cm / 1.2 in to over 40.0 cm / 15.7 in at extreme skew angles with no degradation of the reading speed. Imagers like the Gryphon GFS4100 can capture data as fast as 320 frames per second, compared to 100 frames per second in laser scanners. Faster processors analyze the data using a sophisticated library of solutions, developed and refined over decades of experience in the industry. This makes Datalogic's imaging scanners the best solution for speed, accuracy and reliability.

GFS4170 - Datalogic Gryphon GFS4100 Fixed Mount Bar code Scanner

Part Details: Gryphon GFS4100, 1D imager with USB interface.
MSRP: $301.00 Price: $166.16
In Stock - Ships Free

Additional Information

Common Connection USB
Manufacturer Datalogic
Product Condition New
Ruggedness General Purpose
Scanner Type CCD-Linear Imager

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 320 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2" - 6.30"@5 mil
    • 1.20" - 10.60"@8 mil
    • 0.60" - 11.80"@10 mil
    • 1.20" - 15.70"@13 mil
    • 23.60"@20 mil

General Information

  • Product Type: Fixed Mount Barcode Scanner
  • Product Series: 4100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GFS4170
  • Product Name: Gryphon GFS4170 Fixed Mount Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 1.5"
  • Width: 2.2"
  • Depth: 2.3"
  • Weight (Approximate): 6 oz


  • Host Interface: USB


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS


  • Limited Warranty: 18 Month
Extended Details

Recommended Accessories

  • Datalogic Accessories (90ACC1882)

    Universal Power, AC/DC Power supply, Requires, but does not included, cord (Part# 90ACC188)
    Price: $23.46
    In Stock - Ships Free
