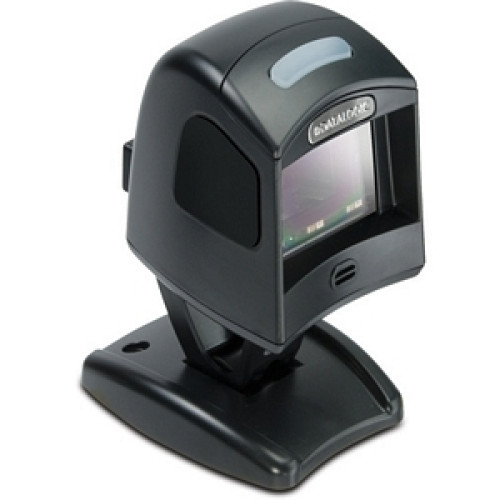

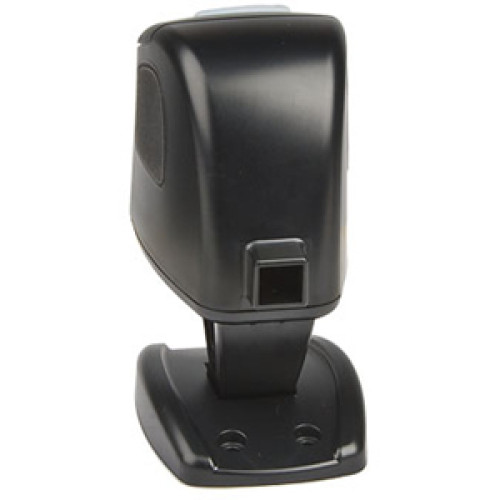

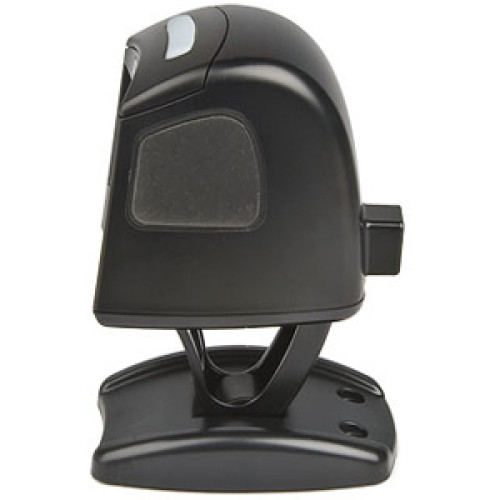

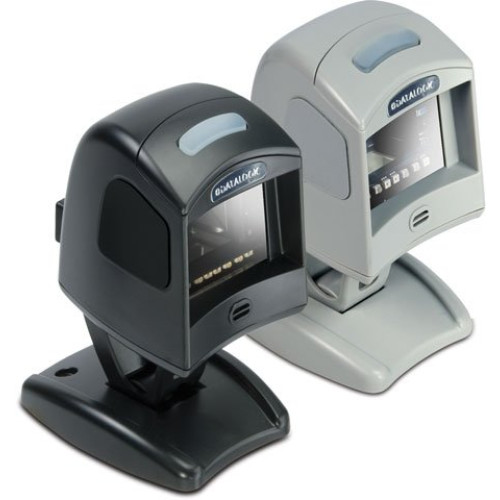

Datalogic Magellan 1000i Barcode Scanner
Part #: MG10-0041-001-411 | SKU: DAT27002

The Magellan 1000i is an Omni-Directional Imaging Scanner suited for hands-free or hand-held use in "small-counter" retail environments. Unlike similar laser scanners, this new imaging technology has no moving parts making the Magellan 1000i more durable and reliable. This same technology allows hard-to-read or damaged labels to be read more quickly. The Magellan 1000i also has a significant software component that will make adding features like RFID coupling, new barcode symbologies and other enhancements easier in the future. Like all PSC Magellan scanners, the Magellan 1000i has multi-interface support built into each scanner that allows a new interface to be used with a simple program parameter change and a cable switch.

Datalogic Magellan 1000i Barcode Scanner

Part Details: Magellan 1000i Omni-Directional Imaging Scanner (5V, No Trigger, USB, 12 Foot POT Cable and Stand) - Color: Black The Magellan 1000i is designed for small-counter retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner. We developed a new bar code scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio. The Magellan 1000i will also be very effective at protecting the user's investment by potentially extending the useful life of the scanner. PSC's new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the Magellan 1000i has PSC's multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.

Need a different version of the Datalogic Magellan 1000i Barcode Scanner? View all 22 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	Magellan 1000i
Scanner Capability	1D

DataLogic Magellan 1000i Specs (pdf)

Technical Information

Form Factor: Presentation Scanner
Resolution: 5 mil(s)
Symbologies Supported:
- UPC-A
- UPC-E
- UPC Bookland
- UPC Coupon Code
- UPC Add-ons
- Japan 2 Label Code
- RSS-14 Expanded
- RSS-14
- RSS-Stacked
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- EAN/JAN
- UCC/EAN 128
- Italian Pharmacode
- GTIN Compliant
- Code 39
- Code 93
- Code 128
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/PLESSEY
Scanner Type: Laser
Scan Rate: 1000 lps
Interface Options:
- USB
- IBM 46XX
- Keyboard Wedge
- RS-232
- Wand Emulation
- IBM USB
- RS-485
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage: 5 V DC
Depth of Field:
- 0.5 - 1.75"@5mils
- 0.25 - 2.25"@7.5mils
- 0 - 5"@10mils
- 0 - 6"@13mils - UPC
- 0 - 6.75"@20mils

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: Magellan
Product Name: Magellan 1000i Barcode Scanner

Physical Characteristics

Dimensions:
- 3.3" (83.82mm) x 2.8" (71.12mm) x 3.7" (93.98mm) - Scanner
- 2.3" (58.42mm) x 2.9" (73.66mm) x 3.8" (96.52mm) - Stand
- 5.5" (139.7mm) x 2.9" (73.66mm) x 3.8" (96.52mm) - Scanner with Stand
Weight:
- 7.0 oz - Scanner
- 6.6 oz - Stand
- 13.6 oz - Scanner with Stand
Color: Black

Agency Approvals

Agency Approvals:
- Gost R
- TÃ
