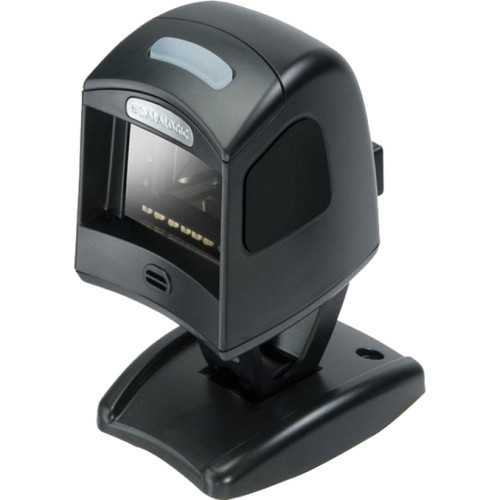

Datalogic Magellan 1000i Barcode Scanner Datalogic Magellan 1000i Barcode Scanner Datalogic Magellan 1000i Barcode Scanner

Datalogic Magellan 1000i Barcode Scanner
Part #: MG10-6031-001-302 | SKU: DAT32039

The Magellan 1000i is an Omni-Directional Imaging Scanner suited for hands-free or hand-held use in "small-counter" retail environments. Unlike similar laser scanners, this new imaging technology has no moving parts making the Magellan 1000i more durable and reliable. This same technology allows hard-to-read or damaged labels to be read more quickly. The Magellan 1000i also has a significant software component that will make adding features like RFID coupling, new barcode symbologies and other enhancements easier in the future. Like all PSC Magellan scanners, the Magellan 1000i has multi-interface support built into each scanner that allows a new interface to be used with a simple program parameter change and a cable switch.

Datalogic Magellan 1000i Barcode Scanner

Part Details: MAG1000I; BLK 12V; TRIGGER; SEE PSC-MG106031001302R
Need a different version of the Datalogic Magellan 1000i Barcode Scanner? View all 22 configurations

Additional Information

Manufacturer Datalogic
Model Name Magellan 1000i
Scanner Capability 1D
Datalogic Magellan 1000i Specs Datalogic Magellan 1000i Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
    • Dual Barcodes for Japan (2 label read)
    • Reduced Space Symbology (RSS) RSS-14,RSS expanded and RSS Stacked Omni-directional)
    • EAN 8 & 13 with full expansion 8 to 13
    • JAN 8 & 13 with full expansion 8 to 13
    • EAN/JAN two label
    • UCC/EAN 128
    • Italian Pharmacode
    • Supports GTIN
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
    • Dual Barcodes for Japan (2 label read)
    • Reduced Space Symbology (RSS) RSS-14,RSS expanded and RSS Stacked Omni-directional)
    • EAN 8 & 13 with full expansion 8 to 13
    • JAN 8 & 13 with full expansion 8 to 13
    • EAN/JAN two label
    • UCC/EAN 128
    • Italian Pharmacode
    • Supports GTIN
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 1.80"@5 mil
    • 0.25" - 2.25"@7.50 mil
    • 0 mil - 5"@10 mil
    • 0 mil - 6"@13 mil - UPC
    • 0 mil - 6.70"@20 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 1000i
  • Product Name: Magellan 1000i Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 3.3"
  • Width: 2.8"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 13.60 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial

Other

  • Package Contents:
    • Magellan 1000i Barcode Reader
    • Tilting Riser Stand
    • Fixed Mounting Plate
    • Magellan 1000i Barcode Reader
    • Tilting Riser Stand
    • Fixed Mounting Plate
  • Additional Information:
    • Pitch Angle 65
    • Skew angle 75

Warranty

  • Limited Warranty: 2 Year
Extended Details
