80611 Datalogic

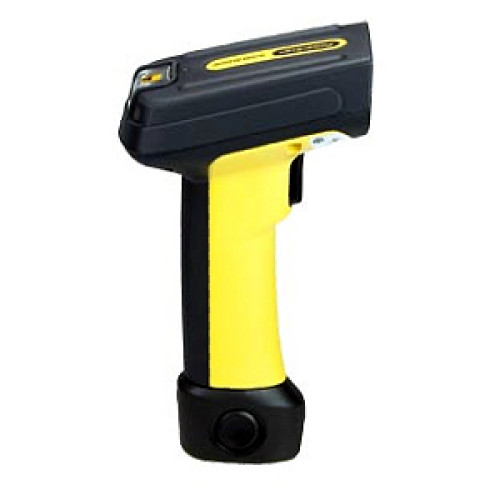

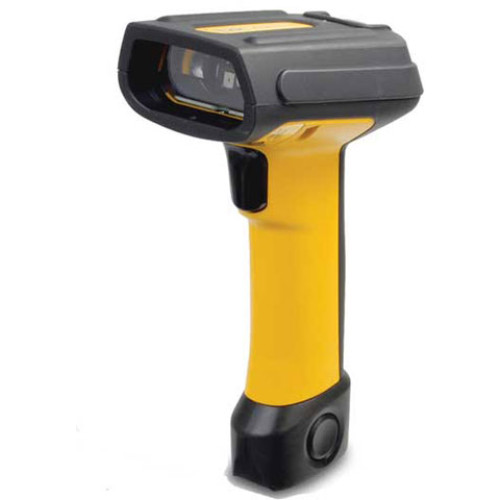

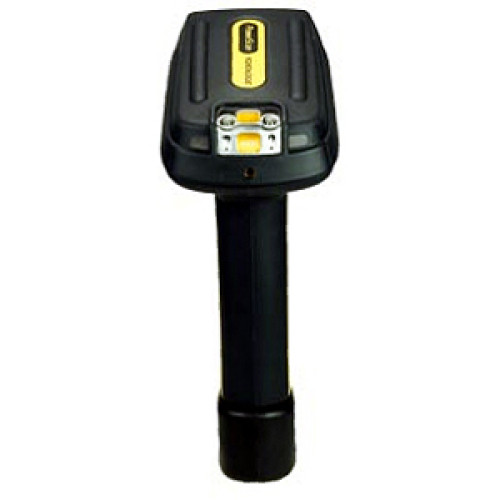

PBT7100-YBK10-US - Datalogic PowerScan PBT7100 Bar code Scanner

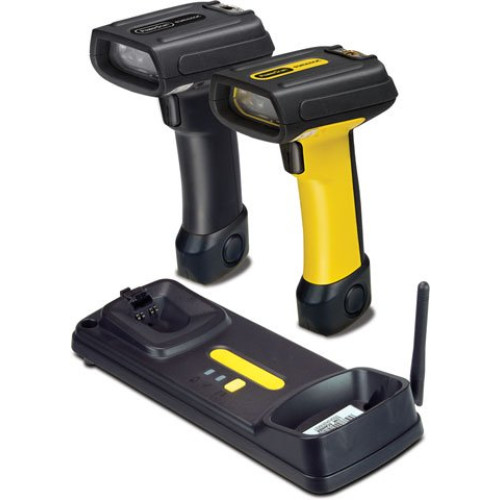

PowerScan PBT7100, Industrial Handheld Linear Imager Barcode Reader (Base, Power supply and USB Cable, no Pointer) - Color: Yellow/Black
InStock
Free Shipping

Description

The Datalogic PowerScan PBT7100 features the fastest speed-to-read on the market - 390 scans/second. The PowerScan PBT7100 also features the Datalogic "Green Spot" and loud beeper for good read feedback, Bluetooth Wireless Technology with up to 100 m / 328 ft range and connectivity through the Base Station or directly to other Bluetooth devices. Durability is paramount, with water and particulate sealing rating of IP65, a drop resistance to 2.0 m / 6.5 ft and a 25kV electrostatic protection (air discharge), making the PowerScan PBT7100 ideal for tough environments.
  • Fastest speed-to-read - 390 scans/second
  • Datalogic 'Green Spot' technology and loud beeper for good read feedback
  • Bluetooth Wireless Technology with up to 328 ft. range
  • Connectivity through the Base Station or directly to other Bluetooth devices
  • Water and particulate sealing rating: IP65
  • Drop resistance to 2.0 m / 6.5 ft
  • Model option with aimer for optimal code pointing

Additional Information

Manufacturer Datalogic
Color Yellow
Scanner Type CCD
Form Factor Handheld
Scanner Capability 1D
Connectivity Cordless
Included Cables USB
Communication Type Bluetooth
Ruggedness Rugged

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 390 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 118.11"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 0.60" - 5.50"@5 mil
    • 0 mil - 17.30"@7.50 mil
    • 0 mil - 23.60"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.90"@20 mil
    • 0.80" - 94.50"@40 mil
    • 2" - 118.10"@55 mil - Reflective
    • 5.10" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PBT7100
  • Product Name: PowerScan PBT7100 Handheld Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8"
  • Width: 3"
  • Depth: 4.5"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year
