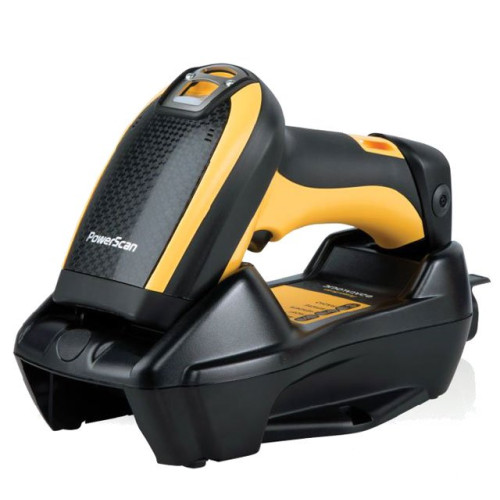

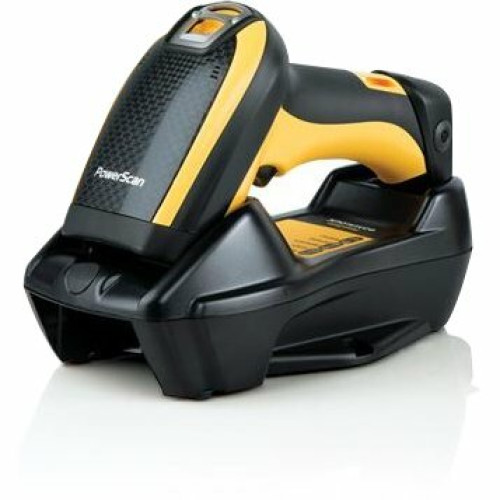

Datalogic PowerScan PBT9500 Barcode Scanner
Part #: PBT9500-HPRB | SKU: DAT235636

The PowerScan PBT9500 imager is targeted to be the most suitable cordless solution for all applications in Warehouses, Transportation & Logistics and Manufacturing where the bar code is at a handy distance(within 1.0 m 1 3.3 ft), regardless of whether it is a 1D or 2D code. The omnidirectional reading capability combined with the snappiness and the depth-of-field features allow the PowerScan 9500 area imager to be faster and therefore, a preferred solution over standard laser scanners and represent their natural replacement. Additionally, the PowerScan PBT9500 also features specific models specialized for reading codes marked with DPM(Direct Part Marking) technology. The overall mechanics will be the same as the other models, while the optics and the software is optimized to address items marked with DPM technology.

Datalogic PowerScan PBT9500 Barcode Scanner

Part Details: Scanner Only - 2D Imager Scanner - Bluetooth - Cordless - High Performance Liquid Lens - Removable Battery - Cables and Charging Cradle Not Included

Additional Information

Color Yellow
Connectivity Cordless
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Datalogic
Model Name PowerScan PBT9500
Ruggedness Rugged
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:<br />
    • Autodiscriminates all standard 1D codes including GS1 DataBar&trade; linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Portuguese Post
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Swedish Post
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:<br />
    • Autodiscriminates all standard 1D codes including GS1 DataBar&trade; linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Portuguese Post
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Swedish Post
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.79" - 2.36"@2.50 mil
    • 0.79" - 2.36"@4 mil - Data Matrix
    • 0.79" - 7.87"@10 mil - Data Matrix
    • 0.79" - 11.81"@10 mil - PDF417
    • 1.18" - 23.62"@13 mil
    • 1.18" - 27.56"@20 mil
    • 1.18" - 43.31"@40 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PBT9500
  • Product Name: PowerScan PBT9500 Handheld Barcode Scanner
  • Product Line: PowerScan

Physical Characteristics

  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 13.40 oz

Battery Information

  • Maximum Number of Scans per Full Charge: 30000
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Power Description

  • Power Source: Battery
Extended Details
