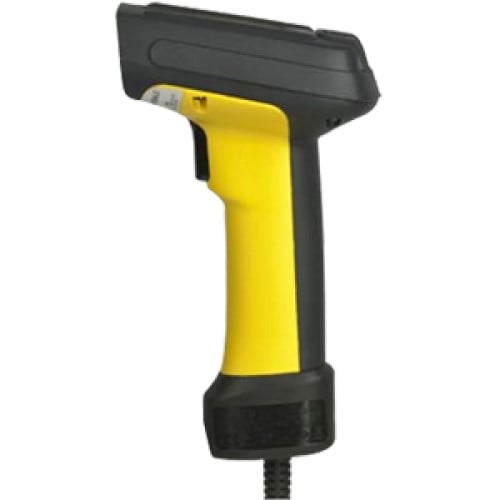

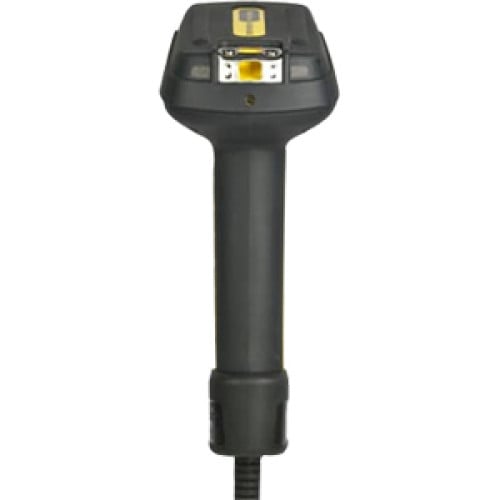

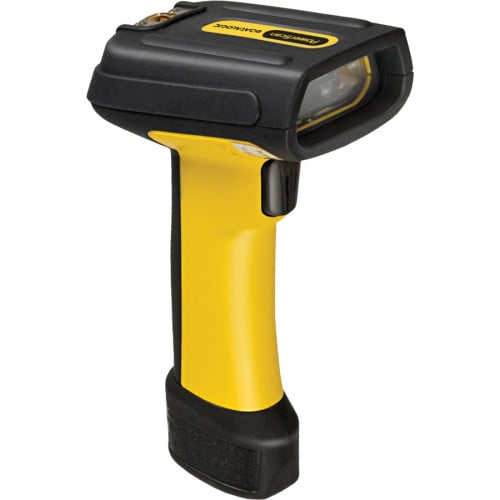

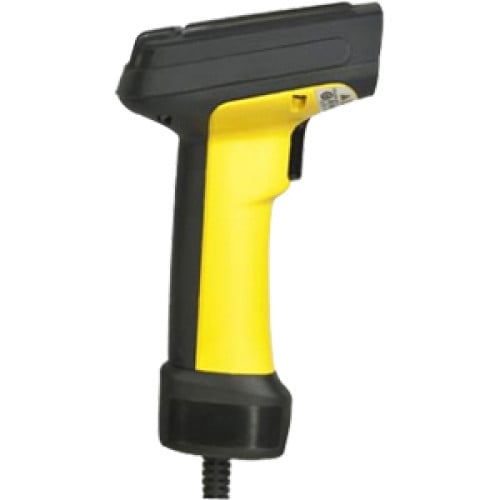

Datalogic PowerScan PD7100 Barcode Scanner
Part #: PD7110-BBK4 | SKU: DAT60372

The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multi-interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

Datalogic PowerScan PD7100 Barcode Scanner

Part Details: Datalogic PowerScan D7110 Bar Code Reader - Wired - Imager

Need a different version of the Datalogic PowerScan PD7100 Barcode Scanner? View all 9 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	PowerScan PD7100
Scanner Capability	1D

Technical Information

Scan Pattern: Linear
Scan Rate: 390 scan/s
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: Imager
Barcode Symbology Supported:
- 1D / Linearcodes:
- Auto discriminates all standard 1D codes
- GS1 DataBar linearcodes
- Postal Codes:
- China Post
- Stacked Codes
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omni directional
- 1D / Linearcodes:
- Auto discriminates all standard 1D codes
- GS1 DataBar linearcodes
- Postal Codes:
- China Post
- Stacked Codes
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omni directional
Maximum Scan Resolution: 3 mil
Depth of Field:
- 0.60" - 5.50"@5 mil
- 0 mil - 17.30"@7.50 mil
- 0 mil - 23.60"@10 mil
- 0 mil - 31.50"@13 mil
- 0 mil - 46.90"@20 mil
- 0.80" - 94.50"@40 mil
- 2" - 118.20"@55 mil - Reflective
- 5.10" - 17.39 ft@100 mil - Reflective

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: D7110
Product Name: PowerScan D7110 Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 8"
Width: 3"
Depth: 4.5"
Color: Black
Weight (Approximate): 9.90 oz

Interfaces/Ports

Host Interface: IBM 46XX

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: China RoHS

Warranty

Limited Warranty: 3 Year

Extended Details
