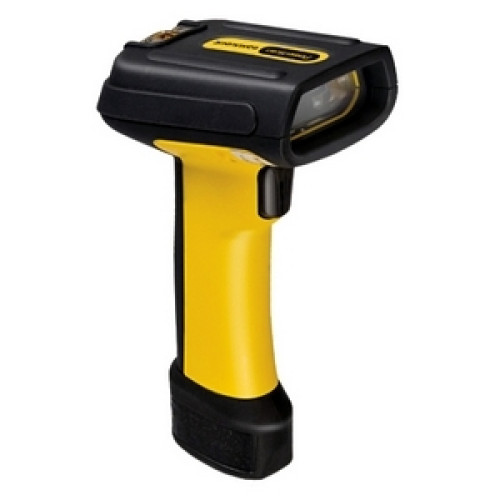

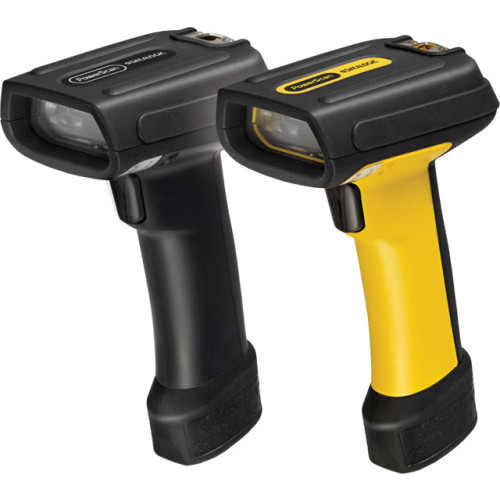

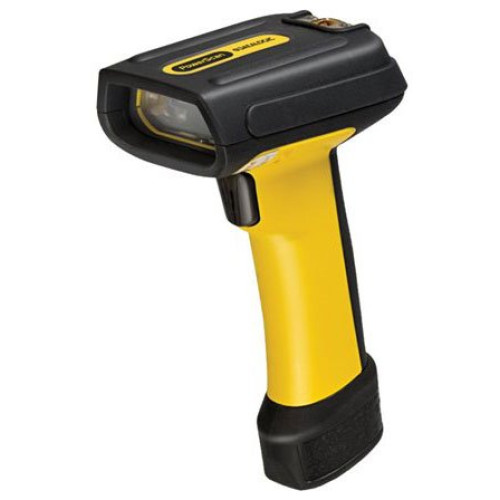

Datalogic PowerScan PD7100 Barcode Scanner
Part #: PD7130-YB | SKU: DAT54077

The Datalogic PowerScan PD7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The PowerScan PD7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The PowerScan PD7100 is available with two multi-interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

Datalogic PowerScan PD7100 Barcode Scanner

Part Details: SCANNER ONLY - 1D linear imager - Standard - Multi-interface - No pointer - Yellow/Black - Requires interface cable

Additional Information

Color Yellow
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Datalogic
Model Name PowerScan PD7100
Ruggedness Rugged
Scanner Type CCD

Technical Information

  • Barcode Dimension: 1D
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Depth of Field:
    • 0.59" - 5.51"@5 mil
    • 0 mil - 17.32"@7.50 mil
    • 0 mil - 23.62"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.85"@20 mil
    • 0.79" - 94.49"@40 mil
    • 1.97" - 118.11"@55 mil - Reflective
    • 5.12" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD7100
  • Product Name: PowerScan PD7130 Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 20.3"
  • Width: 11.4"
  • Depth: 7.6"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information: Supported Interface:
Extended Details

Recommended Accessories for Model: Datalogic PowerScan PD7100 Barcode Scanner

  • Datalogic PowerScan Accessory
    Part #: 7-0404 | SKU: DAT3192

    Accessory for Datalogic PowerScan Barcode Scanners, Industrial Take-up Reel.
    MSRP: $104.00 Price: $79.03
    In Stock
  • Datalogic PowerScan Accessory
    Part #: 11-0139 | SKU: 36956

    Heated Holder, 24V, ROHS, For the PowerScan. (not for use with PBT8300-D/-DK models)
    MSRP: $597.00 Price: $453.65
  • Datalogic PowerScan Accessory
    Part #: 11-0140 | SKU: 36957

    Heated Holder Assembly, 48V, ROHS, For the PowerScan. (not for use with PBT8300-D/-DK models)
    MSRP: $592.00 Price: $449.84
  • Datalogic PowerScan 7000BT Accessory
    Part #: 11-0109 | SKU: 26017

    PowerHood Padded Cover (for the PowerScan 7000)
  • Datalogic PowerScan 7000 Accessory
    Part #: 11-0110 | SKU: 48359

    Hands-free stand for PBT7100 and PD7100

Recommended Warranties for Model: Datalogic PowerScan PD7100 Barcode Scanner

  • Datalogic PowerScan PD7100 Service Contract
    Part #: E-PD71-3 | SKU: 168029

    Datalogic Service Plus 5-Day Program - 3 Year Extended Service - Service - 5 Business Day - Carry-in - Maintenance - Parts & Labor - Physical Service
