102411 Datalogic

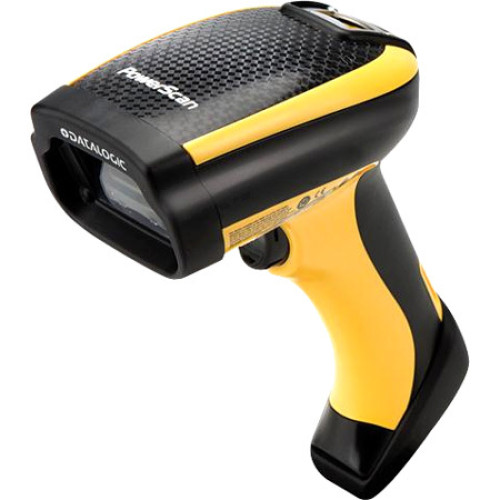

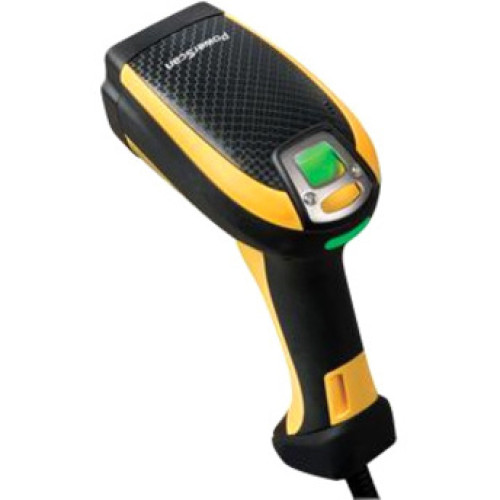

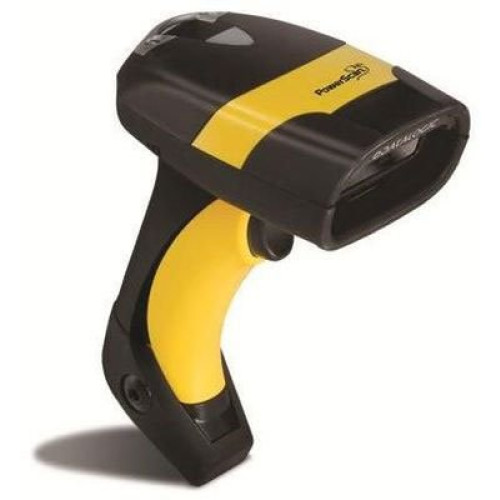

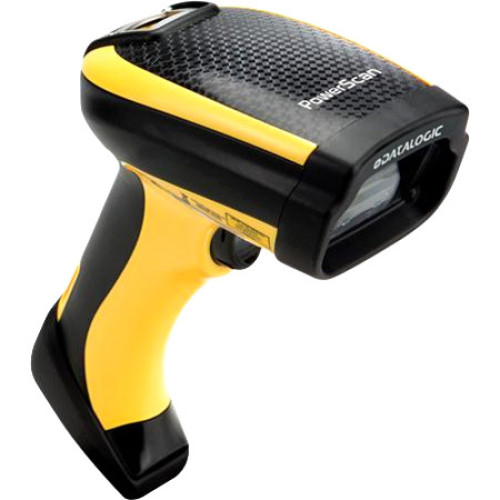

Datalogic PowerScan PD9500 Series Bar code Scanner Part # PD9530-HP

The PowerScan PD9530-HP imagers represent the new 2D handheld area imagers with rugged mechanics for industrial applications. This new PowerScan PD9530-HP imager is a blend of the Datalogic experience with optical systems, hardware architecture, mechanical design and decoding software. An intuitive and effortless scanning experience is the target of the PowerScan PD9530-HP. It combines omnidirectional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. In addition, the PowerScan PD9530-HP area imager includes Datalogic's latest decoding software that guarantees snappy reading in any condition and environment. The result is a scanner with exceptional performances in terms of snappiness and depth-of-field on any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution.

PD9530-HP - Datalogic PowerScan PD9530-HP Bar code Scanner

Part Details: PowerScan PD9530-HP, Scanner Only, 2D Imager, High PerformanCE 5VDC. Cables sold separately. See accessories.
InStock
MSRP: $719.00 Price: $382.98
In Stock - Ships Free

Additional Information

Color Yellow/Black
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Datalogic
Product Condition New
Ruggedness Rugged
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager
  • Snappy omnidirectional reading from contact to over 1.0 m / 3.3 ft
  • Datalogic"s new instinctive "frame" aimer
  • New "soft white light" illumination
  • Datalogic"s 3GL™ (3 Green Lights) technology and loud beeper for good read feedback
  • Datalogic"s Motionix motion-sensing technology
  • Ergonomic shape provides hours of tireless data collection for the user
  • Supports 1D, stacked and 2D codes, postal codes and image capture
  • Water and Particulate Sealing Rating: IP65

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes <p>2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Portuguese Post
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Swedish Post
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar
    • Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked
    • Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E
    • Composites
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes <p>2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Portuguese Post
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Swedish Post
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar
    • Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked
    • Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E
    • Composites
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.80" - 2.30"@2.50 mil
    • 1.10" - 23.60"@13 mil
    • 1.10" - 27.50"@20 mil
    • 1.10" - 43.30"@40 mil
    • 0.80" - 11.80"@10 mil - PDF417
    • 0.80" - 2.30"@4 mil - Data Matrix
    • 0.80" - 7.80"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 9500
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD9530
  • Product Name: PowerScan PD9530 Handheld Barcode Scanner
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8.3"
  • Width: 4.3"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 11.60 oz

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • USB
    • Serial
Extended Details
