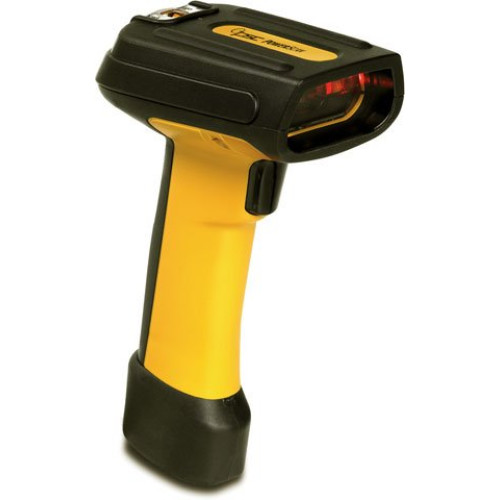

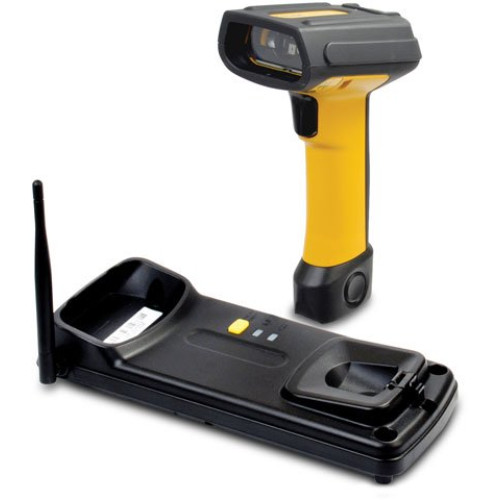

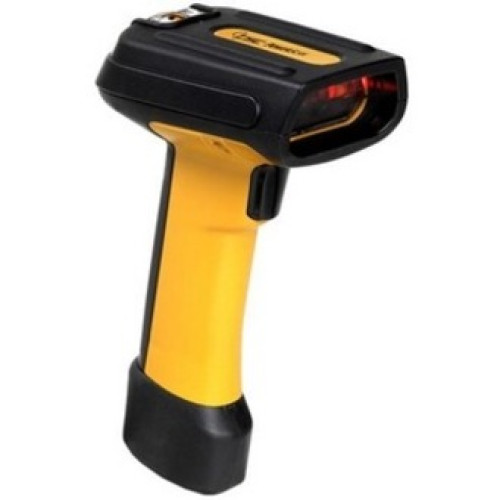

Datalogic PowerScan 7000BT Barcode Scanner
Part #: PS72-1000-1101-106 | SKU: DAT211696

The Datalogic PowerScan 7000BT is the newest addition to the extremely popular Powerscan line. With a huge 328' (100m) Bluetooth communication range and 1D & PDF decoding, the PowerScan 7000BT is veratile enough to tackly a wide variety of tasks. And with solid state design and IP65 dust and moisture protection, it is rugged enough to succeed in any environment.

Datalogic PowerScan 7000BT Barcode Scanner

Part Details: PowerScan 7000 2D Imager (2D, RS, SR, US, RS/UPS, E/P-12, Y/B)

Need a different version of the Datalogic PowerScan 7000BT Barcode Scanner? View all 11 configurations

Additional Information

Manufacturer	Datalogic
Model Name	PowerScan 7000BT
Scanner Capability	1D

Datalogic PowerScan 7000BT Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- RSS
- Code 11
- Code 39
- Code 93
- Codabar
- Code 128
- Code 2 of 5
- UPC/EAN/JAN
- Interleaved 2 of 5
- PDF 417
- Micro PDF
- Code 49
- MaxiCode
- DataMatrix
- EAN-UCC Composite
- Aztec Mesas
- Aztec
- QR Code
- Postnet
- Canadian Post
- British Post
- China Post
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
- RSS
- Code 11
- Code 39
- Code 93
- Codabar
- Code 128
- Code 2 of 5
- UPC/EAN/JAN
- Interleaved 2 of 5
- PDF 417
- Micro PDF
- Code 49
- MaxiCode
- DataMatrix
- EAN-UCC Composite
- Aztec Mesas
- Aztec
- QR Code
- Postnet
- Canadian Post
- British Post
- China Post
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
Maximum Scan Resolution: 5 mil
Depth of Field:
- 3.50" - 5.20"@6.60 mil
- 2.50" - 6.60"@8.30 mil - Code 39
- 2.10" - 8"@10 mil - PDF417
- 1.10" - 12.20"@13 mil - UPC
- 1.30" - 9.20"@15 mil - Data Matrix
- 1" - 12"@35 mil - Maxi Code

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 7000
Product Name: PowerScan 7000 Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 7.5"
Width: 3"
Depth: 4.5"
Color:
- Yellow
- Black
Weight (Approximate): 10 oz

Interfaces/Ports

Host Interface: Serial

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- PowerScan 7000 Barcode Reader
- 12' RS-232 Cable
- European Power Supply
- PowerScan 7000 Barcode Reader
- 12' RS-232 Cable
- European Power Supply
Certifications & Standards:
- Electrical:
- TÜV
- UL
- cUL
- Emissions:
- FCC
- EN 55022-B
- CNS 13438
- AS/NZS 3548
- VCCI
- Restriction of Hazardous Substances:
- RoHS

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 14 V DC

Extended Details
