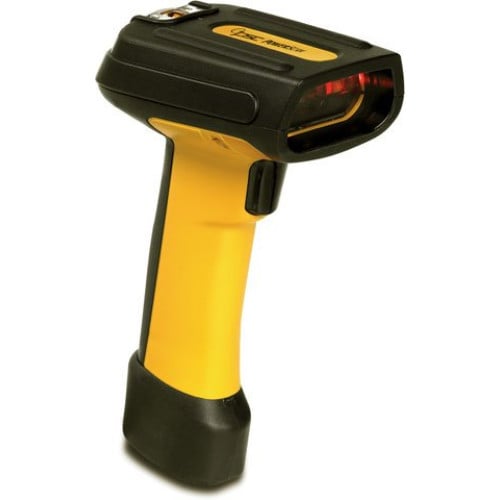

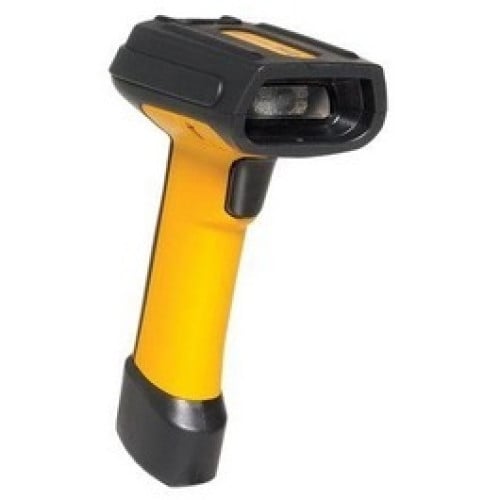

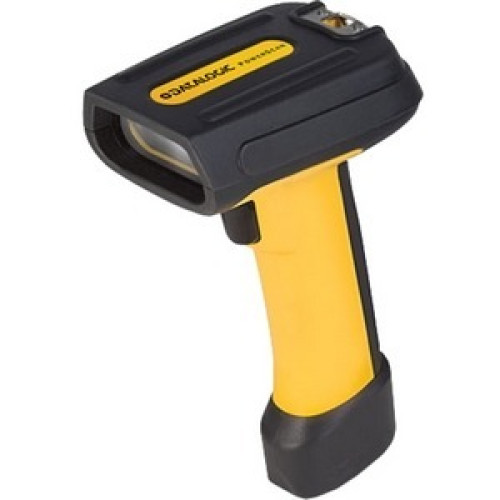

Datalogic PowerScan 7000 Barcode Scanner
Part #: PS72-3100-0300 | SKU: DAT31514

The PowerScan 7000 is one of the lowest-priced full performance industrial handheld scanners on the market. It was designed to be both rugged and durable to fit demanding applications such as the manufacturing shop floor, warehousing, package handling and tracking and more. The strong overmold gives the PowerScan 7000 an extra degree of shock protection that allows the scanner to withstand 50 drops of 6.5 feet to concrete. It can operate in extreme temperatures and seals out dust and water. Due to an innovative Datalogic optical design, the PowerScan 7000 has a depth of field that is unsurpassed by other scanners. An integrated laser aiming beam is also available for applications that need more precise or brighter aiming cues. The advanced decoding algorithms allow read rates up to 500 scans per second-the fastest industrial scanner available. Additionally, the PowerScan 7000 features a multiple interface architecture that allows connection to the majority of the host terminals on the market, including RS-232, USB, Wand Emulation and IBM POS interfaces.

Datalogic PowerScan 7000 Barcode Scanner

Part Details: PowerScan 7000 SRI Industrial Strength Imaging Scanner 2D, Keyboard Wedge, High Density and POT Cable #8-0741-16 - Color: Yellow/Black

Need a different version of the Datalogic PowerScan 7000 Barcode Scanner? View all 14 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	PowerScan 7000
Scanner Capability	1D

DataLogic PowerScan 7000 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Linear
Connectivity Technology: Cable
Light Source: LED
Barcode Symbology Supported:
- Code 11
- Code 128
- UPC/EAN/JAN
- RSS
- Code 39
- Codabar
- Interleaved 2 of 5
- Code 93
- Code 2 of 5
- PDF 417
- MaxiCode
- Aztec Mesas
- Aztec
- Micro PDF
- DataMatrix
- EAN-UCC Composite
- Code 49
- QR Code
- Postnet
- Canadian Post
- British Post
- China Postal Code
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
- Code 11
- Code 128
- UPC/EAN/JAN
- RSS
- Code 39
- Codabar
- Interleaved 2 of 5
- Code 93
- Code 2 of 5
- PDF 417
- MaxiCode
- Aztec Mesas
- Aztec
- Micro PDF
- DataMatrix
- EAN-UCC Composite
- Code 49
- QR Code
- Postnet
- Canadian Post
- British Post
- China Postal Code
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1.50" - 5.50"@7.50 mil - Linear
- 1.30" - 7.90"@13 mil - UPC
- 1.80" - 5"@6.60 mil - PDF417
- 1.30" - 5"@15 mil - Data Matrix
- 1" - 9"@35 mil - Maxi Code

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 7000
Product Name: PowerScan 7000 Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 7.5"
Width: 3"
Depth: 4.5"
Color:
- Yellow
- Black
Weight (Approximate): 9.60 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Certifications & Standards:
- Vibration: Meets MIL-STD-810E
- Water & Dust: IEC529 Rating IP54DW
- Electrical:
- TÜV
- UL
- cUL
- Emissions:
- FCC
- EN 55022-B
- CNS13438
- AS/NZS 3548
- VCCI

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 14 V DC

Extended Details
