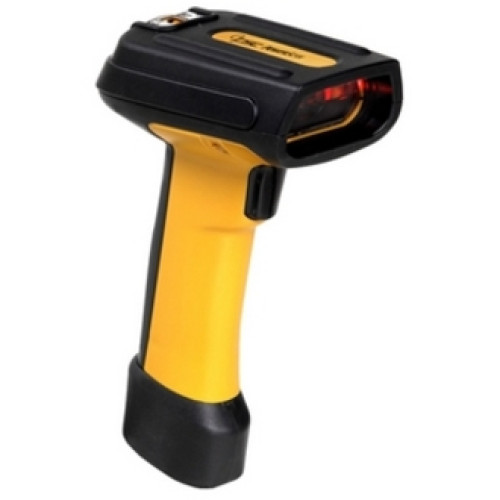

Datalogic PowerScan Barcode Scanner
Part #: PSLR-1000 | SKU: DAT3177

The PowerScan family of Handheld Laser Barcode Scanners has been specifically designed from the ground up to meet the demands of industrial users. In this tough environment the right tool makes all the difference. With a PowerScan Scanner on the job you'll have one of the toughest most reliable tools around. You can rely on the PowerScan Scanner for fast accurate barcode reading from up close to over 65 (165cm) away. Even labels previously thought to be unreadable can now be read using PSC's new superior decoding software QuadraLogic. The Scanner will auto-discriminate all standard barcode symbologies and automatically adjust to read a wide range of code densities. The PowerScan Scanner also has a broad range of communication options using unique multi-interface modules which allow for connection to most host computer systems. Our AutoSelect feature allows you to quickly move between different hosts and applications by simply changing cables. Finally PowerScan's low current draw combined with its low power mode make it ideal for use with battery operated terminals.

Datalogic PowerScan Barcode Scanner

Part Details: PowerScan LR Handheld Bar Code Scanner (Long Range Decoded Scanner with RS232 and Keyboard Wedge Interfaces, - No Cable or Power Supply) - Color: Yellow-Black

Need a different version of the Datalogic PowerScan Barcode Scanner? View all 18 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	PowerScan
Scanner Capability	1D

DataLogic PowerScan Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Scanner Type: Laser
Scan Rate: 37 Scans/sec
Interface Options:
- Keyboard Wedge
- Wand Emulation
- RS-232
Interface Connectivity: Corded
Input Voltage Range: 4 to 14 V DC
Depth of Field:
- 8 - 13"@7.5mils - Code 39
- 7 - 20"@10mils - Code 39
- 7 - 32"@15mils - Code 39
- 6 - 48"@20mils - Code 39
- 9 - 84"@40mils - Code 39
- 15 - 108"@55mils - Code 39
- 20 - 99.6"@40mils - Code 39
- 40 - 180"@70mils - Code 39
- 40 - 264"@100mils - Code 39

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: PowerScan
Product Name: PowerScan Long Range Industrial Barcode Scanner

Physical Characteristics

Weight: 9.9 oz - Without cable

Agency Approvals

Agency Approvals:
- Gost R
- UL
- TUV
- cUL
- FCC -A BCIQ CNS13438
- EN 55022-B
- AS/NZS 3548
- VCCI-B
- CDRH Class IIIA
- IEC 60825 Class 2
- FCC -A BCIQ CNS13438

Environmental Conditions

Temperature:
- -30Â°C (-22Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
