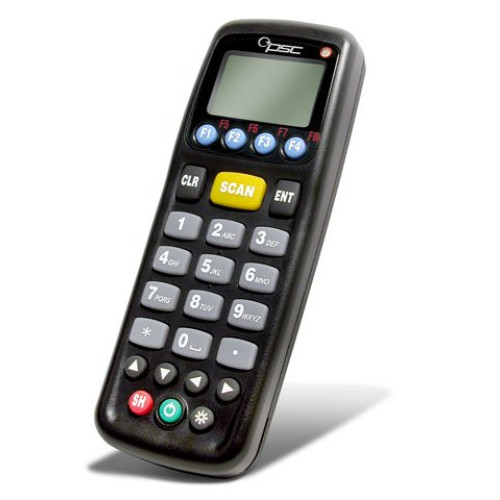

Datalogic Falcon PT40 Mobile Computer
Part #: PT40-400L | SKU: DAT9273

Though quite small in size (5.35" x 1.89"), the Falcon PT40 has a full 26 key keypad laid out virtually identically to a typical cell phone, providing easy transition for the average user. The crisp display is even backlit for low-light situations. The Falcon PT40 comes with PAL, a simple yet effective application which allows you to start using the Falcon PT40 right out of the box to scan barcodes and collect basic inventory data.

Datalogic Falcon PT40 Mobile Computer

Part Details: Falcon PT40 Batch Portable Data Terminal (2MB RAM, 512KB Flash and LASER Scanner)

Need a different version of the Datalogic Falcon PT40 Mobile Computer? View all 2 configurations

Additional Information

Display Resolution	96 x 48
Manufacturer	Datalogic
Model Name	Falcon PT40
Operating System	Proprietary
RAM Memory	2 MB
Scanner Type	Laser

Datalogic Falcon PT40 Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Batch
Light Source: Laser
Drop Specification: 48" To Concrete
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- Code 128
- Code 39
- Code 93
- Interleaved 2 of 5
- Code 39 Full ASCII
- Codabar

General Information

Product Type: Handheld Terminal
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: PT40
Product Name: Falcon PT40 Portable Data Terminal
Product Line: Falcon

Physical Characteristics

Height: 0.9"
Width: 1.9"
Length: 5.4"
Weight (Approximate): 4.20 oz

Other

Package Contents:
- Falcon PT40 Portable Data Terminal
- Belt Clip (1406-0965)
- Docking Station (6401-0002)<
- Falcon PT40 Portable Data Terminal
- Belt Clip (1406-0965)
- Docking Station (6401-0002)<
Certifications & Standards:
- Safety & Regulatory:
- Electrical:
- Complies to CE
- Emissions:
- FCC Part 15 - Class A
- Laser:
- CDRH Class 2
- IEC Laser Class 2
Additional Information: Supports programs generated with PT Program Generator

Display & Graphics

Display Screen Type: LCD
Number of Lines: 6
Number of Characters: 16
Display Color: Monochrome
Screen Resolution: 96 x 48

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 26

Memory

Flash Memory: 512 KB
Standard Memory: 2 MB

Software

Operating System: Proprietary OS

Warranty

Limited Warranty: 1 Year

Extended Details

Recommended Accessories for Model: Datalogic Falcon PT40 Mobile Computer

Datalogic PT40 Accessory
Part #: PT40-SERIAL-STARTER | SKU: DAT21578

Falcon PT40 Serial Starter Kit. Includes everything you need to run your PT40: charging/communications cradle, serial cable, US power supply and battery.
Datalogic PT40 Spare Parts
Part #: R44-2340 | SKU: DAT45837

Product Reference Guide for the Falcon PT40
