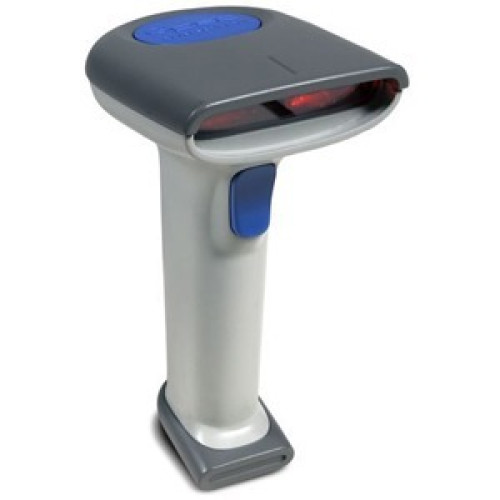

Datalogic QS6500 Barcode Scanner
Part #: QS65-3050042-502R | SKU: DAT62864

The PSC QS6500 is PSC's newest general purpose handheld scanner. For customers looking for a scanner with premium performance at an affordable price, the QS6500 is the best in the market. The PSC QS6500 includes aggressive scanning performance, an ergonomic feel, excellent field depth and fast 1D and PDF barcode reading.

Datalogic QS6500 Barcode Scanner

Part Details: Datalogic QuickScan QS6500 Bar Code Reader - Wired - Linear

Need a different version of the Datalogic QS6500 Barcode Scanner? View all 18 configurations

Additional Information

Included Cables	USB
Manufacturer AIDC	DataLogic
Model Name	QS6500
Scanner Capability	1D
Specialty Encoding	None

DataLogic QS6500 Specs (pdf)

Technical Information

Scan Rate: 450 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- 1D Model:
- UPC A, E / EAN 8, 13 / JAN 8, 13
- Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- RSS-14
- RSS Expanded
- RSS Stacked
- RSS Limited
- ISBN / Bookland EAN
- Code 39 (with full ASCII)
- Pharmacode 39
- Code 128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- Code 16K
- Code 11
- Codabar/NW7
- UK/Plessey
- MSI/Plessey
- 1D Model:
- UPC A, E / EAN 8, 13 / JAN 8, 13
- Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- RSS-14
- RSS Expanded
- RSS Stacked
- RSS Limited
- ISBN / Bookland EAN
- Code 39 (with full ASCII)
- Pharmacode 39
- Code 128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- Code 16K
- Code 11
- Codabar/NW7
- UK/Plessey
- MSI/Plessey
Maximum Scan Resolution: 5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QS6500
Product Name: QuickScan QS6500 Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 6"
Width: 2.9"
Depth: 3.9"
Color: Black
Weight (Approximate): 6.40 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- QuickScan QS6500 Barcode Reader
- Gooseneck Stand Kit
- CD
- 12" IBM 46XX Port 9B Coil Cable
- QuickScan QS6500 Barcode Reader
- Gooseneck Stand Kit
- CD
- 12" IBM 46XX Port 9B Coil Cable

Warranty

Limited Warranty: 5 Year

Extended Details

Recommended Accessories for Model: Datalogic QS6500 Barcode Scanner

Datalogic QS6500 Accessory
Part #: 106154 | SKU: DAT235265

CABLE RETAINER Gray QS6500 20

View All Options

Datalogic QS6500 Barcode Scanner Part #: QS65-3050042-502R | SKU: DAT62864
