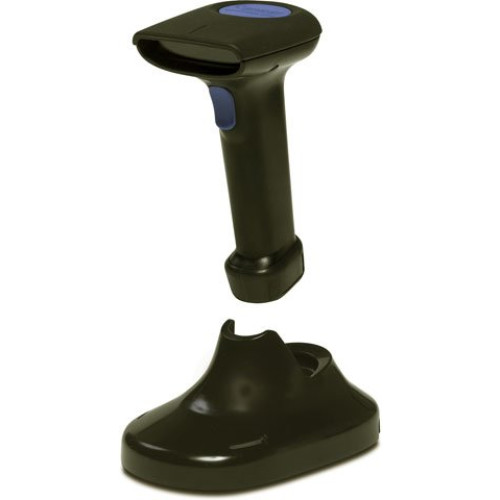

Datalogic QS6500BT Barcode Scanner
Part #: QS65B-1030100-301 | SKU: DAT20286

The QS6500BT reads almost all 1D barcode symbologies at an extremely fast 450 scans per second while offering excellent reading performance on hard-to-read barcodes. The QS6500BT also reads most stacked 2D codes like PDF-417 and Micro PDF. This aggressive linear imaging performance is enhanced by Bluetooth cordless communication with up to a 33' range. The innovative charging-base station allows the product to scan barcodes while its lithium ion battery is charging. The base station also supports all popular host terminal interfaces and supports RSS and PDF-417 for future industry compatibility. Additionally, QS6500BT's flash memory allows for easy software upgrades.

Datalogic QS6500BT Barcode Scanner

Part Details: Datalogic QuickScan QS6500BT Bar Code Reader - Wireless Connectivity - 450 scan/s - 30 ft Scan Distance - 1D, 2D - Imager - Linear - Bluetooth - Multi-interface - Gray

Need a different version of the Datalogic QS6500BT Barcode Scanner? View all 8 configurations

Additional Information

Connectivity	Cordless
Manufacturer	Datalogic
Model Name	QS6500BT
Scanner Capability	1D

Datalogic QS6500BT Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 5 mil(s)
Symbologies Supported:
- UPC-A
- UPC-E
- JAN-8
- JAN-13
- EAN-8
- EAN-13
- Codabar (NW7)
- Code 39 Full ASCII
- Code 11
- Code 16K
- Code 93
- Code 128
- UK Plessey
- MSI/PLESSEY
- RSS-14 Stacked
- RSS-14 Expanded
- RSS-14
- RSS-14 Limited
- ISBN / Bookland EAN
- Pharmacode 39
- Interleaved 2 of 5
- Standard 2 of 5
- IATA
- RSS Composite
- PDF 417
- Micro PDF
Scanner Type: Imager
Scan Rate: 450 Scans/sec
Interface Options:
- Bluetooth
- Keyboard Wedge
- IBM AT/PS2
- USB
- IBM 46XX
- IBM USB
- RS-232
- Wand Emulation
Interface Connectivity: Cordless
Cordless Range: 30ft
Scan Pattern: Linear
Input Voltage Range: 4.5 to 14 V DC
Power Supply: External Included
Depth of Field:
- 2 - 4.5"@5mils
- 1 - 6"@7.5mils
- 0 - 10.5"@10mils
- 0 - 13"@13mils - 100% UPC
- 21"@20mils
- 35"@40mils
Battery Capacity: 1000 mAh

General Information

Manufacturer: PSC Inc.
Product Line: QuickScan
Product Name: QuickScan QS6500BT Barcode Scanner

Physical Characteristics

Dimensions:
- 7.1" (180.34mm) x 2.9" (73.66mm) x 4.4" (111.76mm) - Scanner
- 2.9" (73.66mm) x 3.7" (93.98mm) x 6.1" (154.94mm) - Base Station
Weight:
- 8 oz - Scanner
- 12 oz - Base Station
Color: Gray

Agency Approvals

Agency Approvals:
- Laser Classification: IEC 60825 Class 1 LED
- Water & Dust: IEC 60529 rating IP52DW
- Gost R
- UL
- cUL
- IEC60950
- FCC-A
- EN 55022-B
- CISPR-22
- VCCI-B
- FCC Part 15C
- R and TTE
- IC and IDA

Other

Package Contents:
- QuickScan QS6500BT Barcode Scanner
- 8ft Keyboard Wedge 5/6 Din Cable
- 3ft IBM AT/PS2 Cable
- Base Station
- Power Supply
Cables Included:
- IBM AT/PS2
- Keyboard Wedge

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity:
- 5 to 95% Operating Non-condensing
- 5 to 95% Storage Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
