Additional Information
| Connectivity | Cordless |
|---|---|
| Manufacturer AIDC | DataLogic |
| Model Name | QS6500BT |
| Scanner Capability | 1D |
DataLogic QS6500BT Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Linear
- Scan Rate: 450 scan/s
- Connectivity Technology: Wireless
- Scanning Distance: 32.81 ft
- Light Source: LED
- Image Sensor: Linear
- Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-8
- Codabar (NW7)
- Code 39 Full ASCII
- Code 11
- RSS-14
- RSS-Expanded
- RSS-Limited
- RSS-Stacked
- Code 16K
- ISBN / Bookland EAN
- Pharmacode 39
- Code 128
- Interleaved 2 of 5
- UK Plessey
- Standard 2 of 5
- MSI/PLESSEY
- IATA
- PDF 417
- Micro PDF
- RSS Composite
- JAN13 Add-ons sub 2 or P2, sub 5 or P5 & C128
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-8
- Codabar (NW7)
- Code 39 Full ASCII
- Code 11
- RSS-14
- RSS-Expanded
- RSS-Limited
- RSS-Stacked
- Code 16K
- ISBN / Bookland EAN
- Pharmacode 39
- Code 128
- Interleaved 2 of 5
- UK Plessey
- Standard 2 of 5
- MSI/PLESSEY
- IATA
- PDF 417
- Micro PDF
- RSS Composite
- JAN13 Add-ons sub 2 or P2, sub 5 or P5 & C128
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 2" - 4.50"@5 mil
- 1" - 6"@7.50 mil
- 0 mil - 10.50"@10 mil
- 0 mil - 13"@13 mil - 100% UPC
- 21"@20 mil
- 35"@40 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Datalogic
- Manufacturer: Datalogic S.p.A
- Product Model: QS6500BT

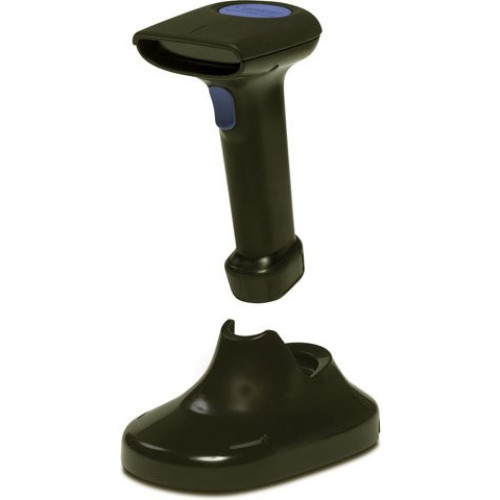

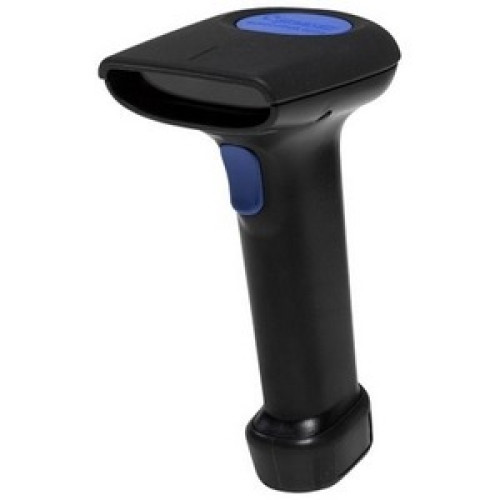

- Product Name: QuickScan QS6500BT Barcode Reader
- Product Line: QuickScan
Physical Characteristics
- Height: 7.1"
- Width: 2.9"
- Depth: 4.4"
- Color: Black
- Weight (Approximate): 8 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- QuickScan QS6500BT Barcode Reader
- Base Station
- External Power Supply
- 12ft Cable
- QuickScan QS6500BT Barcode Reader
- Base Station
- External Power Supply
- 12ft Cable
- Certifications & Standards:
- Electrical:
- Gost R
- UL
- cUL
- IEC60950
- Emissions:
- FCC-A
- EN 55022-B
- CISPR-22
- VCCI-B
- Radio:
- FCC Part 15C
- FCC Part 15RFCC Part TTE
- FCC Part IC
- FCC Part IDA
- Laser Classification:
- IEC 60825 Class 1 LED
- Restriction of Hazardous Substances:
- EU RoHS
- Additional Information:
- Interface Option:
- SerialKeyboard WedgeUSBWand EmulationISB 46XX
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)
Network & Communication
- Bluetooth: Yes
Warranty
- Limited Warranty: 3 Year
Power Description
- Input Voltage: 14 V DC
