241020 Datalogic

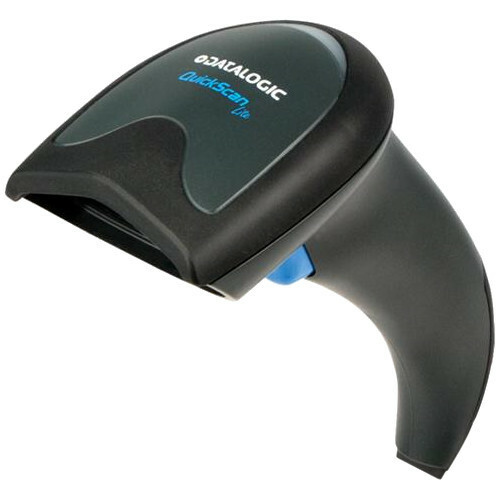

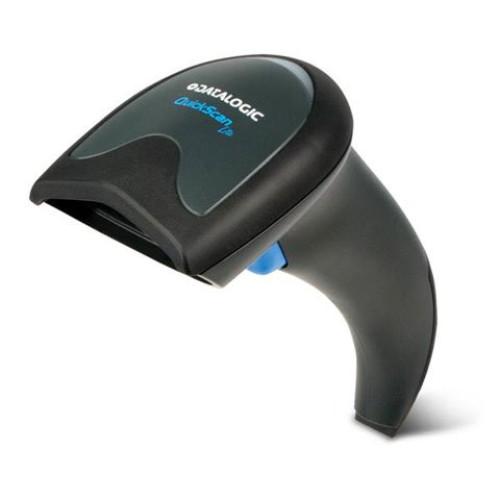

QW2120-BKK13 - Datalogic QW2100 Bar code Scanner

QW2100, USB Kit, Linear 1D Imager. Includes USB straight cable. Color: Black.
InStock
$183.00 $105.23
Ships In 3-5 Days
Free Shipping
- +

Description

The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D barcodes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider barcodes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
  • Wide scan angle
  • Laser-like thinner and extended scan line
  • Two interface options: USB or Keyboard wedge /RS-232
  • Datalogic\"s patented \"Green Spot\" technology for good-read feedback
  • Built with over molded rubber to protect the imager when dropped
  • Water and Particulate Sealing Rating: IP42
  • Drop Resistance to 5.0 ft
  • Uses the same cables and power supplies as the current QuickScan products
  • Bulk packaging available (10 scanners per box)
  • USB Certified Kits available

Additional Information

Manufacturer Datalogic
Item Condition New

Recommended Accessories

Recommended Warranties

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Scan Rate: 400 scan/s
  • Connectivity Technology: Cable
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1" - 6"@5 mil
    • 0 mil - 9.40"@7.50 mil
    • 0 mil - 13.80"@10 mil
    • 0 mil - 15.70"@13 mil
    • 0 mil - 23.60"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: QW2100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QW2120
  • Product Name: Quickscan I QW2120 Handheld Barcode Scanner
  • Product Line: QuickScan I

Physical Characteristics

  • Height: 6.7"
  • Width: 2.5"
  • Depth: 2.7"
  • Color: Black
  • Weight (Approximate): 4.20 oz

Interfaces/Ports

  • Host Interface: USB
