Datamax-O'Neil I-4208 Specs
Datamax-O'Neil I-4208 Driver
"The enhancements we've made to the new printer make this an outstanding value -- our customers are essentially getting a more powerful product with the I-4208 ," stated Bill Nix, senior vice president, sales and marketing at Datamax. "Additionally, when compared along side competitive printers in the same class, the I-4208 excels in every aspect of value, performance and speed."
Available in direct thermal and thermal transfer configurations, the DMX-I-4208 is capable of producing a 203-dpi, four-inch wide image at 8 inches per second and supports all popular linear and two-dimensional bar code symbologies. The system features a 32-bit Motorola Coldfire processor and revamped firmware, eight MB of addressable RAM, and an IEEE 1284-compliant parallel interface that supports both bi-directional parallel and Ethernet connections.
As with the previous I-Class products, the I-4208 is constructed of precision die-cast aluminum, and incorporates a modular design that greatly simplifies operation, maintenance, and upgrades. To simplify the addition or removal of components, uniform screws are used throughout the printer. Additionally, the DMX-I-4208 incorporates a variety of user-friendly features including color-coded operator prompts, a wide-access printhead for easy media loading and printhead cleaning, and a front-panel multi-language LCD that simplifies printer set-up and configuration.
A new class of price-performance
The I-4208 is designed for a wide variety of industrial
applications, including asset tracking, documentation management,
inventory control, order entry, product identification, shipping
and receiving, and point-of-sale.
-
Printing Technology
-
Print Resolution
-
Print Speed
-
Interface Options
-
Printer Type
-

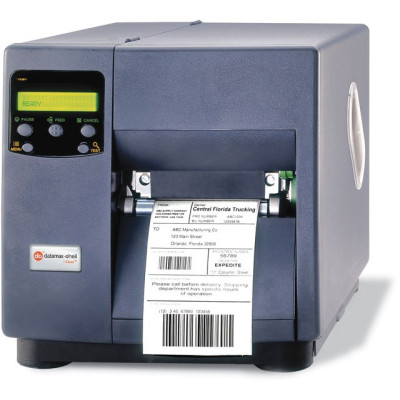

Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-18900Y07 | SKU: DAT24670I-4208, Thermal transfer printing, 203 dpi, 4" print width, Ethernet Interface, Peel-Present, and Rewinder. Includes US power cord. Order cables separately. -
Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-18900U07 | SKU: DAT31552I-4208, 4"Thermal transfer, peel and present, rewind, 203 dpi, USB, US power -
Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-13000007 | SKU: DAT37016I-4208, Thermal transfer Printer, 203 dpi, 4 inch Print width, 8 ips Print speed, Ethernet Interface, 2MB Flash, 2MB Flash and Plastic Cover. Euro Power supply. -
Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-38400007 | SKU: DAT60113I-4208, Thermal transfer printing, 203 dpi, 4" print width, Parallel and Serial Interfaces, Coated Side Out, and Rewinder. Includes US power cord. Order cables separately. -
Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-18440Y07 | SKU: DAT60132I-4208, Thermal transfer Printer (203 dpi, 4 inch Print width, 8 ips, DMXNet Interface, Rewind and Cutter) -
Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-18600Y07 | SKU: DAT60158I-4208, Thermal transfer Printer (203 dpi, 4 inch Print width, 8 ips, Ethernet, Sensor and Rewind) -
Datamax-O'Neil I-4208 Barcode Label Printer
Part #: R42-00-08905U07 | SKU: DAT127634I-4208, Direct thermal Printer (203 dpi, 4 inch Print width, 8 ips, USB, CST, PL PRES, Internal rewind, I/O EXP)
