Additional Information
| Interface Options | Bluetooth, Serial (RS-232) |
|---|---|
| Manufacturer | Datamax-O'Neil |
| Max Roll Outer Diameter | 2.25 |
| Model Name | OC2 |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |

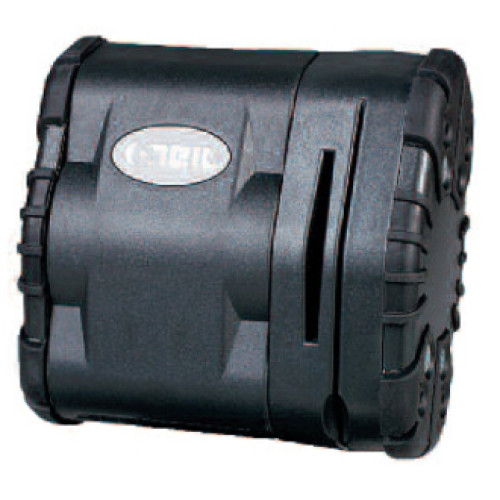

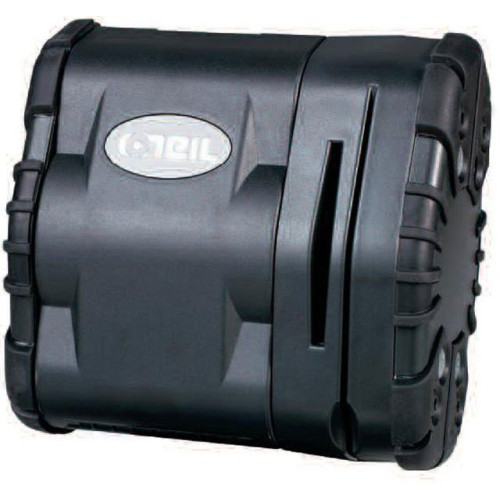

Datamax-O'Neil OC2 Specs
Technical Information
- Maximum Mono Print Speed: 2 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 1.89"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-8
- EAN-13
- Interleaved 2 of 5
- MSI PLESSEY
- UCC/EAN 128
- UPC-A
- UPC-E
- Aztec Code
- PDF-417
- QR Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: OC2
- Product Name: OC2 Thermal Label Printer
- Product Line: OC
Physical Characteristics
- Height: 2.8"
- Width: 5.2"
- Depth: 4.9"
- Form Factor: Portable
Interfaces/Ports
- Serial Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- OC2 Thermal Label Printer
- Swivel belt clip
- Battery
- Paper
- OC2 Thermal Label Printer
- Swivel belt clip
- Battery
- Paper
- Certifications & Standards:
- FCC B
- CE
- UL/cUL
- Additional Information:
- External DC jack, 12-15V, built-in spike and surge protection
- External charge contacts, 12 -15V, built-in spike and surge protection
- Prints Approximately 6522" or 1087 - 6" receipts on a single battery charge (18.1 hours)
Media Types & Handling
- Maximum Label Width: 2.25"
- Media Type:
- Receipt
- Synthetic Media
- UV Coated Media
- Label
- Media Thickness: 6 mil
- Label Core Size: 0.40"
- Maximum Roll Diameter: 2.25"
Battery Information
- Number of Batteries Supported: 1
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Standard Memory: 2 MB
- Flash Memory: 4 MB
Power Description
- Input Voltage: 7.2 V DC
Warranty
- Limited Warranty: 2 Year
Network & Communication
- Bluetooth: Yes
