Additional Information
| Interface Options | Serial (RS-232), Wi-Fi |
|---|---|
| Manufacturer | Datamax-O'Neil |
| Max Roll Outer Diameter | 2.25 |
| Model Name | OC3 |
| Print Resolution | 203 dpi |
| Printer Type | Mobile |
| Printing Technology | Direct Thermal |

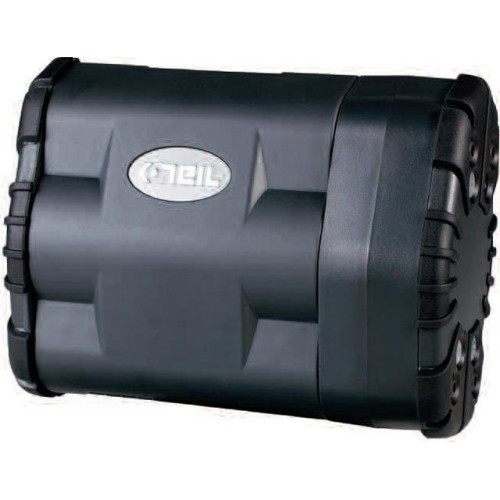

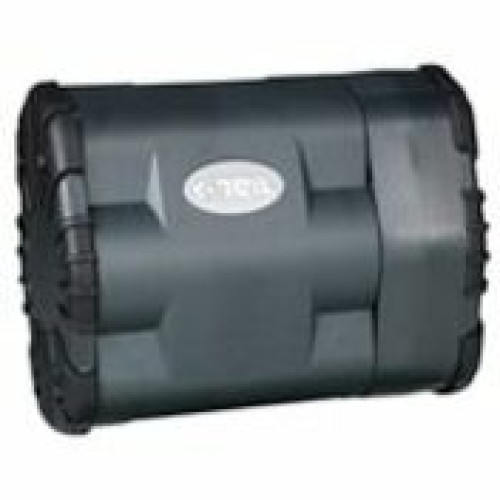

Datamax-O'Neil OC3 Specs
Technical Information
- Maximum Mono Print Speed: 3 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 2.84"
- Recommended Use: Label Print
- Features: Belt Clip
- Barcode Symbology Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-8
- EAN-13
- Interleaved 2 of 5
- MSI PLESSEY
- UCC/EAN 128
- UPC-A
- UPC-E
- Aztec Code
- PDF-417
- QR Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: OC3
- Product Name: OC3 Thermal Label Printer
- Product Line: OC
Physical Characteristics
- Height: 2.8"
- Width: 6.5"
- Depth: 4.9"
- Form Factor: Portable
Interfaces/Ports
- Serial Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- OC3 Label Printer
- Battery
- Roll of Media
- Swivel Belt Clip
- OC3 Label Printer
- Battery
- Roll of Media
- Swivel Belt Clip
- Certifications & Standards:
- FCC B
- CE
- UL/cUL
- RoHS
- Additional Information:
- External DC jack, 12-15V, built-in spike and surge protection
- External charge contacts, 12 -15V, built-in spike and surge protection
- Prints approx. 2,544 - 2" x 1.125" labels on a single battery charge (22.1 hours)
Media Types & Handling
- Maximum Label Width: 3"
- Media Type:
- Receipt
- Synthetic Media
- UV Coated Media
- Label
- Media Size:
- Custom Size - 3.25" - Roll Paper
- 3.25" x Roll Paper
- Label Core Size: 1"
- Maximum Roll Diameter: 2.25"
Battery Information
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Standard Memory: 2 MB
- Flash Memory: 4 MB
Network & Communication
- Wireless LAN: Yes
Warranty
- Limited Warranty: 2 Year
