Additional Information
| Interface Options | Ethernet, Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | H-4606X |
| Print Resolution | 600 dpi, 609 dpi |
| Print Speed | 6 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

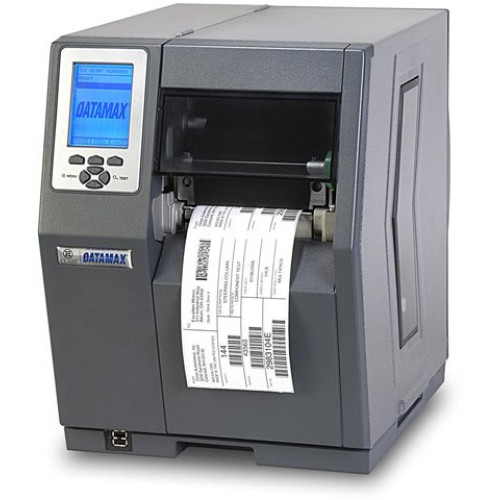

Datamax-O'Neil H-4606X Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 600 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.16"
- Recommended Use: Label Print
- Features:
- Real Time Clock
- Mirror Printing
- Media Supply Hub
- Barcode Symbology Supported:
- Code 3 of 9
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Industrial 2 of 5
- Standard 2 of 5
- Code 11
- Code 93
- Code 128
- EAN-13
- EAN-8
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Addendums
- POSTNET
- UCC/EAN 128
- Telepen
- Planet Code
- FIM
- USPS-4 State
- Maxi Code
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Codablock
- Code 16K
- Aztec Code
- TLC 39
- Micro PDF-417
- GS1 DataBar
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: H-4606X
- Product Name: H-Class H-4606X Label Printer
- Product Line: H-Class
Physical Characteristics
- Height: 16.4"
- Width: 12.6"
- Depth: 19.3"
- Form Factor: Desktop
- Weight (Approximate): 47 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.65"
- Media Type:
- Fanfold
- Die-cut Label
- Continuous Label
- Continuous Tag
- Perforated Label
- Ticket Stock
- Black Mark
- Roll Fed
- Media Thickness: 10 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Other
- Platform Supported: PC
- Package Contents:
- H-Class H-4606X Label Printer
- Software CD
- H-Class H-4606X Label Printer
- Software CD
Memory
- Standard Memory: 16 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital
- Memory Technology: SDRAM
- Flash Memory: 8 MB
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: AC Supply
Fonts & Emulation
- Language Emulation:
- PLB
- PLI
- PLZ
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
Display & Graphics
- Display Screen Type: LCD
