Additional Information
| Interface Options | Ethernet, Parallel, Serial (RS-232), USB |
|---|---|
| Labels Per Day | 5,001 - 10,000 |
| Manufacturer | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | H-6308 |
| Print Resolution | 300 dpi |
| Print Speed | 8 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

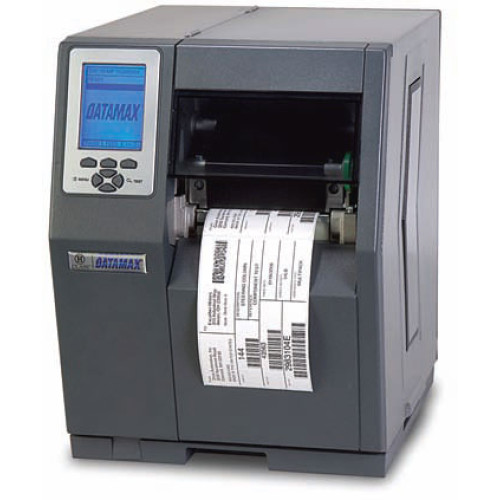

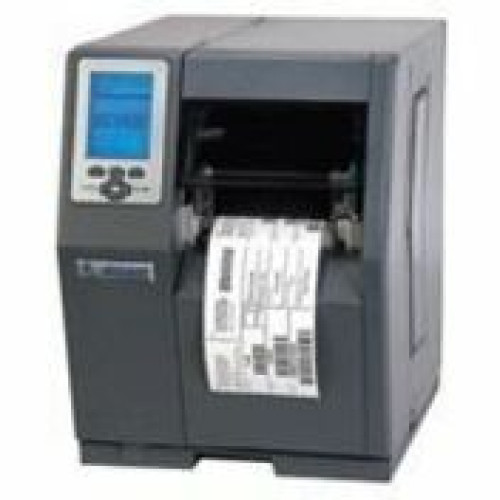

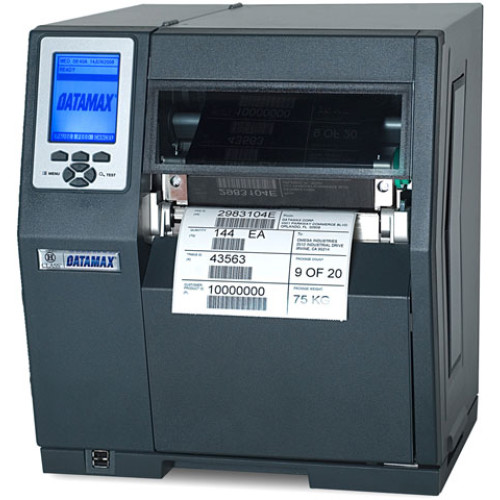

Datamax-O'Neil H-6308 Specs
Datamax-O'Neil H-6308 Driver
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 6.40"
- Recommended Use: Label Print
- Features: Cutter
- Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: H-6308
- Product Name: H-6308 Thermal Label Printer
- Product Line: H-Class
Physical Characteristics
- Height: 13"
- Width: 15"
- Depth: 18.9"
Media Types & Handling
- Maximum Label Width: 6.70"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Label
- Continuous Tag
- Ticket Stock
- Media Thickness: 10 mil
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 8 MB
Other
- Platform Supported: PC
- Additional Information: Graphics Support : .PCX, .BMP, .IMG, and Datamax ASCII Format files
Warranty
- Limited Warranty: 2 Year
Cutter
- Cutting Method: Automatic
