114980 Datamax-O'Neil

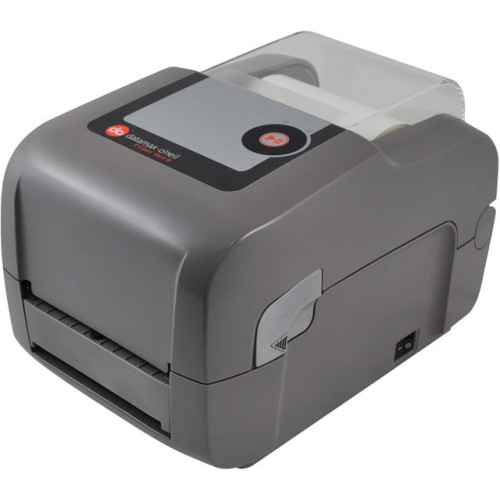

EA2-00-1H000A00 - Datamax-O'Neil E-4205A Bar code Printer

E-4205A, Thermal transfer Printer, Advanced, 203 dpi, 64MB, Serial/Parallel/USB/Ethernet Interfaces.
InStock
Free Shipping

Description

The Datamax-O-Neil E-4205A is the E-Class advanced model, designed for applications that need networking communications, faster print speed, or special media compatibility. The E-4205A includes all the features and options of the E-4204, plus it includes parallel and Ethernet communications ports, a positionable media indexing sensor and prints at up to 5 inches per second.
  • Easy Loading
  • Double wall construction and concentric hinges provide rugged structural integrity.
  • Wrap around media window
  • Sealed user interface panel to prevent liquids and debris
  • Larger one-inch core standardized ribbons cost less than the typical smaller desktop ribbons.
  • Large media roll
  • No tools or experience required to replace the most critical parts, the printhead and platen roller.
  • Large graphical display
  • Optional wireless \"\" 802.11a/b/g and Bluetooth interfaces

Additional Information

Print Speed 5
Printer Type Desktop
Print Method Thermal Transfer
Print Resolution 203 dpi
Interface Options Ethernet
Maximum Print Width 4.25
Filter Filter
Manufacturer Datamax-O'Neil

Recommended Accessories

Recommended Labels

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

Recommended Warranties

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Mirror Printing
    • Rotate Printing
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • Micro PDF-417
    • HIBCC
    • EAN/JAN-13
    • EAN/JAN-8
    • TLC 39

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4205A
  • Product Name: E-Class Mark III E-4205A Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.25 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Label
    • Tag
    • Gap
    • Notch
    • Black Bar
    • Fanfold
    • Continuous Form
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
    • Label Taken Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLB
    • PLE
    • PLI
    • PLZ
    • EPL
    • ZPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Power Description

  • Power Source:
    • Battery
    • Power Adapter

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Other

  • Country of Origin: United States
  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year
